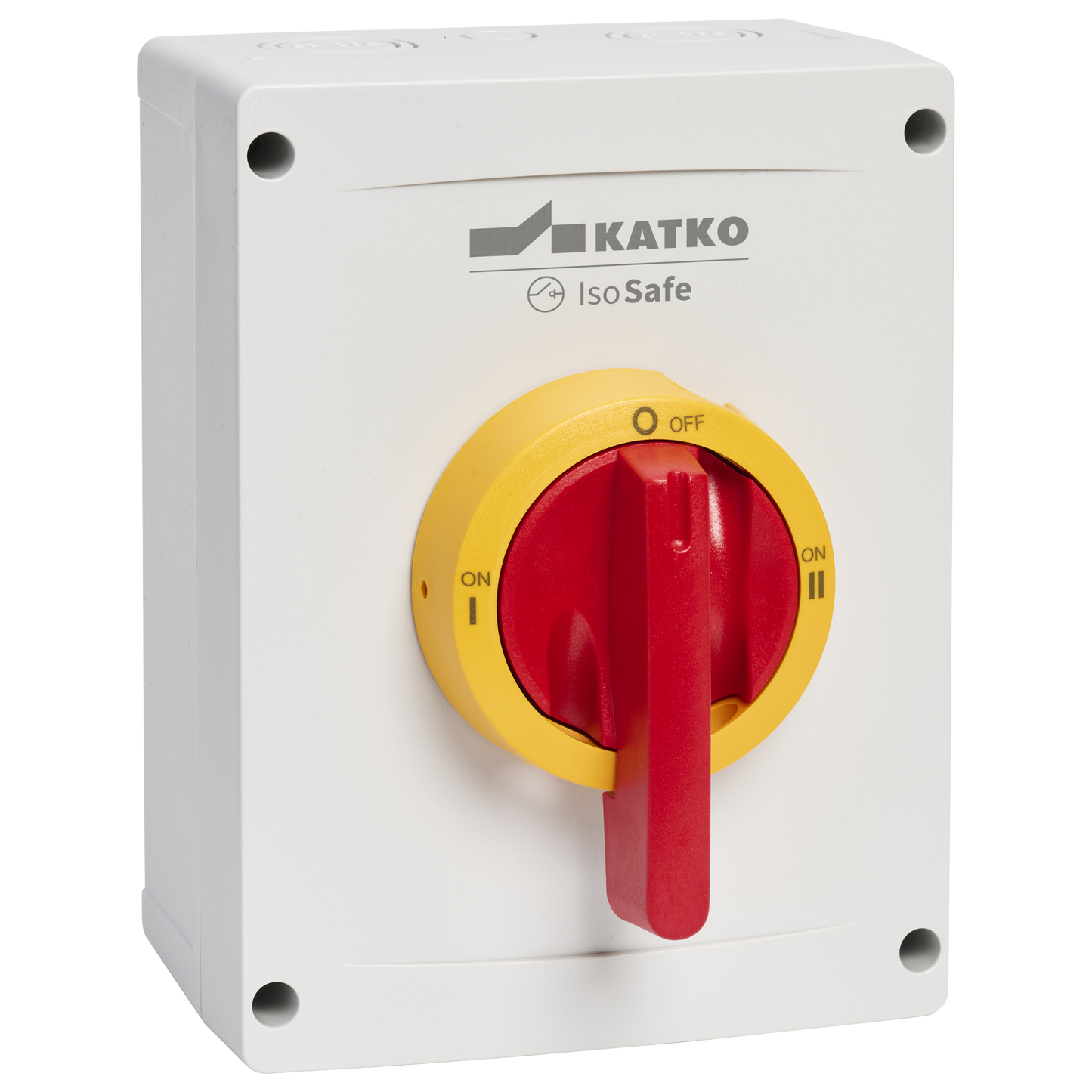

KEM 325VV YR M3
Przełączniki rodzaju zasilania 16-160A
- Polycarbonate (TKM, KEM) or aluminium (KEA) enclosures
- TKM-models with cam switch 16 to 40 A
- KEM and KEA models consist of two KU or VKA switches connected by a change-over kit and range from 16 to 160 A
- IP66; enclosure types U2, U3, A2
- IP65; enclosure type MF11
- Self-extinguishing material
- Excellent insulating properties
- Wide operating temperature range
- Good resistance against many chemicals
- Good UV resistance
- Padlockable with three locks
- Door interlock with defeat mechanism
- Tested according to IEC 60947-3
Szczegóły produktu
| SKU | KEM 325VV YR M3 |
|---|---|
| AC-21 400/415 V (A) | 40 A |
| AC-21 690 V (A) | 40 A |
| AC-22 400/415 V (A) | 25 A |
| AC-22 690 V (A) | 25 A |
| AC-23 400/415 V (A/kW) | 25 A / 11 kW |
| AC-23 690 V (A/kW) | 25 A / 22 kW |
| EAN | 6419410320730 |
| Kolor | Yellow / Red |
| Liczba Pól | 3 |
| Obudowa | M3 |
| Operation | Front-operated |
| Rozmiar przewodu (Cu) (mm2) / Rozmiar śruby | 1.5-16 |
| Stopień IP | 66 |
| Typ obudowy | Polycarbonate |
| Typ rozłącznika | Change-over Switch |
| Waga (kg) | 0,9 |
