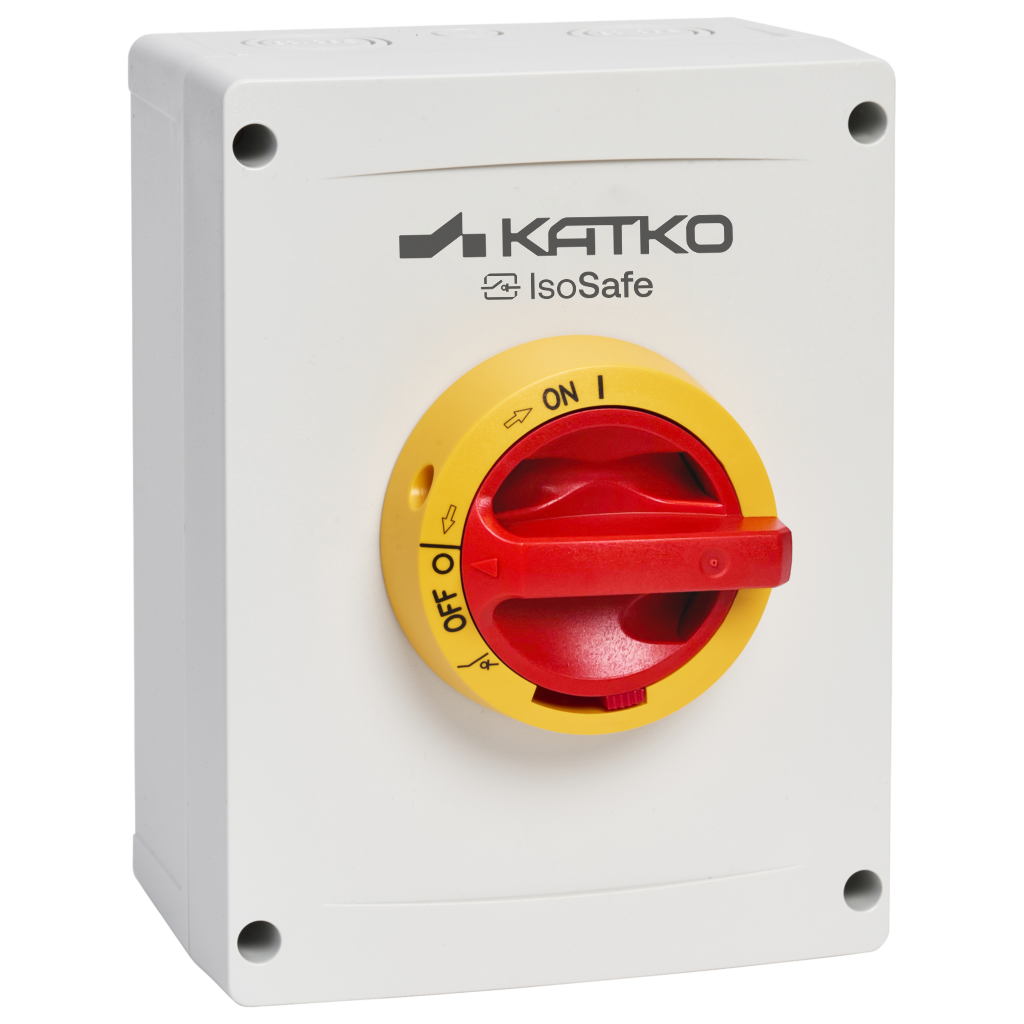

KEM 380UL YR M3EMC 2XM32MEMC
Wyłączniki sterowania silnikami w obudowach EMC certyfikowane UL 16-150A
- Electromagnetic compatibility ensures safe operation in environments with electromagnetic disturbance
- Tested according to EN 55011 with EMC glands shielded power cable
- Nema Type 4X: U2, U3, MF10, MF11, H23/T, H32/T enclosures
- Nema Type 4: A2, A3, TR007 enclosures
- Up to 150A/75HP/600V, refer to detailed product specifications
- Easy to install auxiliary contacts
- Padlockable
- Also available as 4-, 6- and 8-pole versions
- EMC cable glands included
- ISF (16-40A) versions include the new Load Break Switches (KU). Various enclosure options available.
- KEM = Polycarbonate
- KEA = Aluminium
- KET = Sheet steel
- KER = Stainless steel
- Cable glands:
- KEM: 16-40A = 2xM25, 60-80A = 2xM32
- KEA: 16-40A = 2xM25, 60-125A = 2xM40
- KET: 16-40A = 2xM25, 60-80A = 2xM32, 100-150A = 2xM40
- KER: 16-40A = 2xM25, 60-80A = 2xM32, 100-125A = 2xM40
- ISF: 16-40A = 2xM25 / 2xM25 M16M (Aluminium & Sheet Steel enclosures) / 2xM25 M16P (Polycarbonate enclosures) / 2xM25 M20P (Polycarbonate enclosures) / 2xM25 KST16M (Aluminium enclosures)
Szczegóły produktu
| SKU | KEM 380UL YR M3EMC 2XM32MEMC |
|---|---|
| EAN | 6419410308035 |
| HP 208V | 15HP |
| HP 415V | 15HP |
| HP 480V | 30HP |
| HP 600V | 40HP |
| Klasyfikacja NEMA | 4X |
| Kolor | Yellow / Red |
| Liczba Pól | 3 |
| Obudowa | M3 |
| Prąd znamionowy (600V) | 80 A |
| Rozmiar przewodu (Tylko Cu) | 8-1/0AWG |
| Waga (lb/kg) | 4,851 / 2,2 |
