Dane mogą ulec zmianie bez powiadomienia. Zawsze potwierdź dane u swojego sprzedawcy.

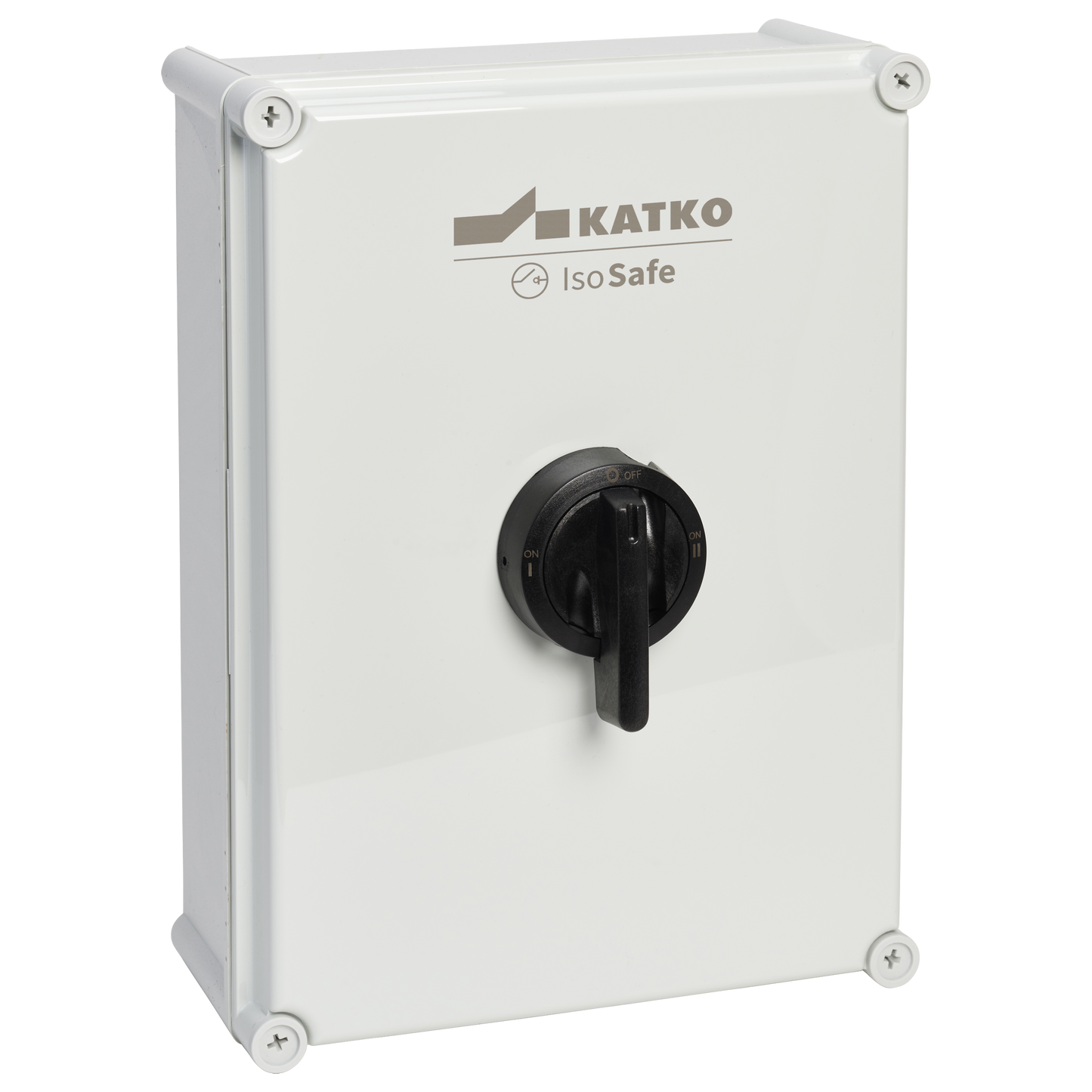

KEM 4125CO MF11
Przełączniki rodzaju zasilania 16-160A
- Polycarbonate (TKM, KEM) or aluminium (KEA) enclosures
- TKM-models with cam switch 16 to 40 A
- KEM and KEA models consist of two KU or VKA switches connected by a change-over kit and range from 16 to 160 A
- IP66; enclosure types U2, U3, A2
- IP65; enclosure type MF11
- Self-extinguishing material
- Excellent insulating properties
- Wide operating temperature range
- Good resistance against many chemicals
- Good UV resistance
- Padlockable with three locks
- Door interlock with defeat mechanism
- Tested according to IEC 60947-3
Szczegóły produktu
| SKU | KEM 4125CO MF11 |
|---|---|
| AC-21 400/415 V (A) | 160 A |
| AC-21 690 V (A) | 160 A |
| AC-22 400/415 V (A) | 125 A |
| AC-22 690 V (A) | 125 A |
| AC-23 400/415 V (A/kW) | 100 A / 55 kW |
| AC-23 690 V (A/kW) | 80 A / 55 kW |
| EAN | 6419410320426 |
| Kolor | Standard |
| Liczba Pól | 4 |
| Obudowa | MF11 |
| Operation | Front-operated |
| Rozmiar przewodu (Cu) (mm2) / Rozmiar śruby | 6-70 |
| Stopień IP | 65 |
| Typ obudowy | Polycarbonate |
| Typ rozłącznika | Change-over Switch |
| Waga (kg) | 4 |
Mittapiirustus
