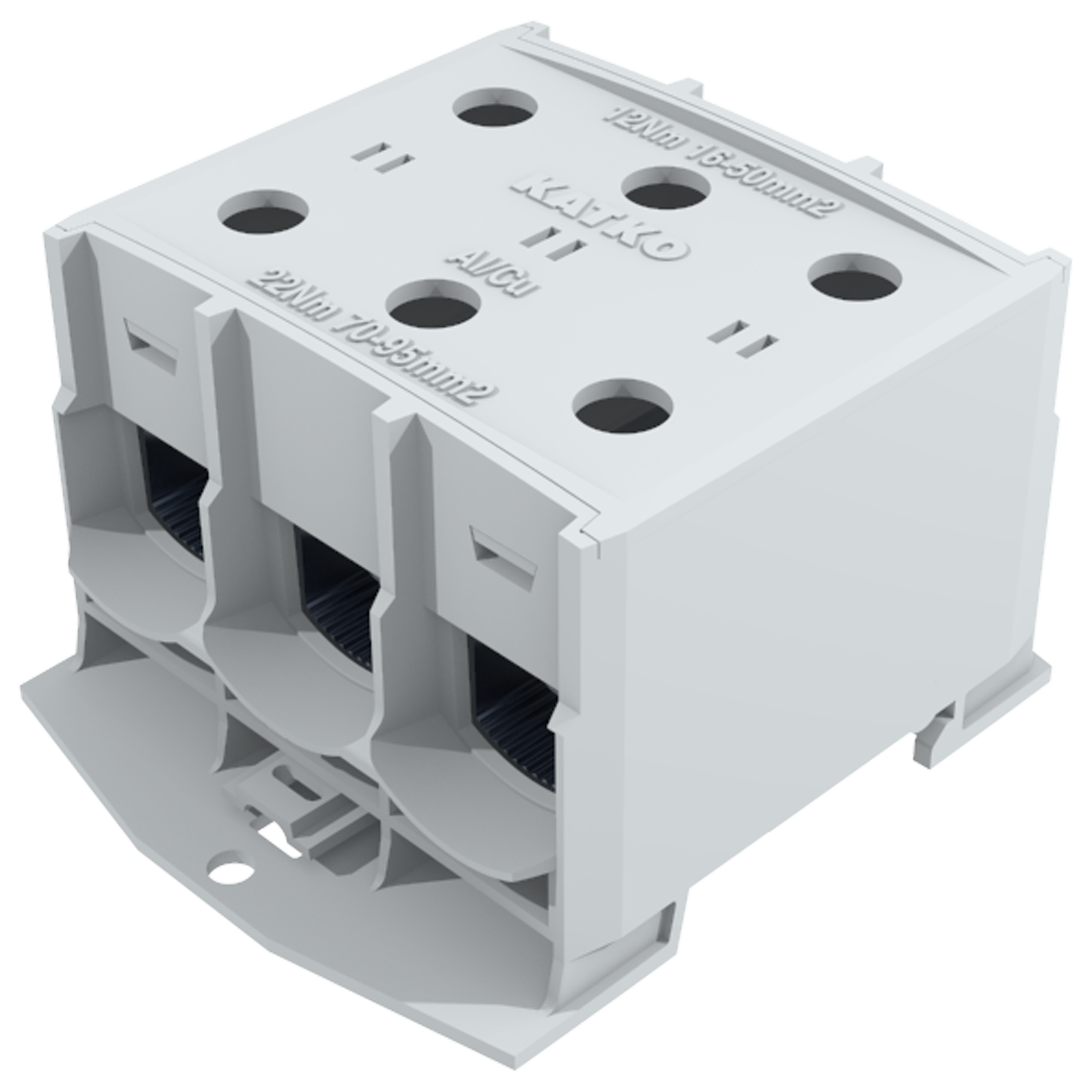

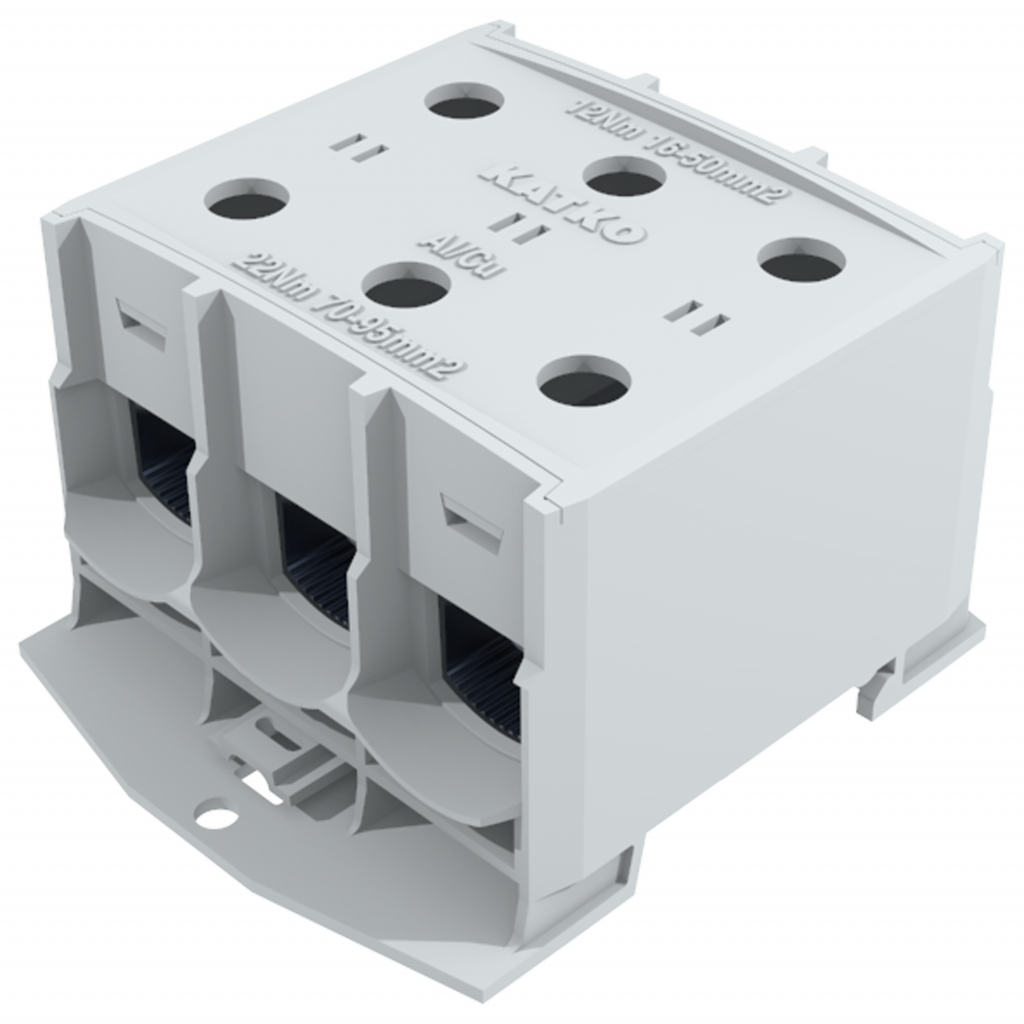

KL3X1X95

Złączki kablowe

• • UL listed connectors, see link below
  • Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables
  • Available in grey, blue (N) yellow/green (PE), red (P) and black (M)
  • 50 and 95 mm2 connectors also available as 1-pole branching connector (3x) and 3-pole connector (3x1x)
  • 1000 VAC and 1500 VDC
  • Touchproof, IP20
  • Operating temperature is -25 ℃ …+80 ℃
  • KC-terminals and KL1X16 models for DIN-rail mounting, refer to detailed product specifications
  • KL-terminals (excl. KL1X16 models) for DIN-rail or base mounting, refer to detailed product specifications
  • Housing and cover in polyamide
  • Terminal material KL tin-coated, greased aluminium
  • Terminal material KC steel and brass
  • Environmentally friendly materials
  • Durable laser markings
  • Sales unit = 1 piece

Certificates:

• KL range: Certified according to IEC 61238-1 Class A
• KL range: Certified according to IEC 60947-7-1

Accessories:

• KLTS50 – 300 terminal shrouds available

Related materials:

Conductors per cross section (mm2) table

UL 1059 listed Terminal Blocks >>
