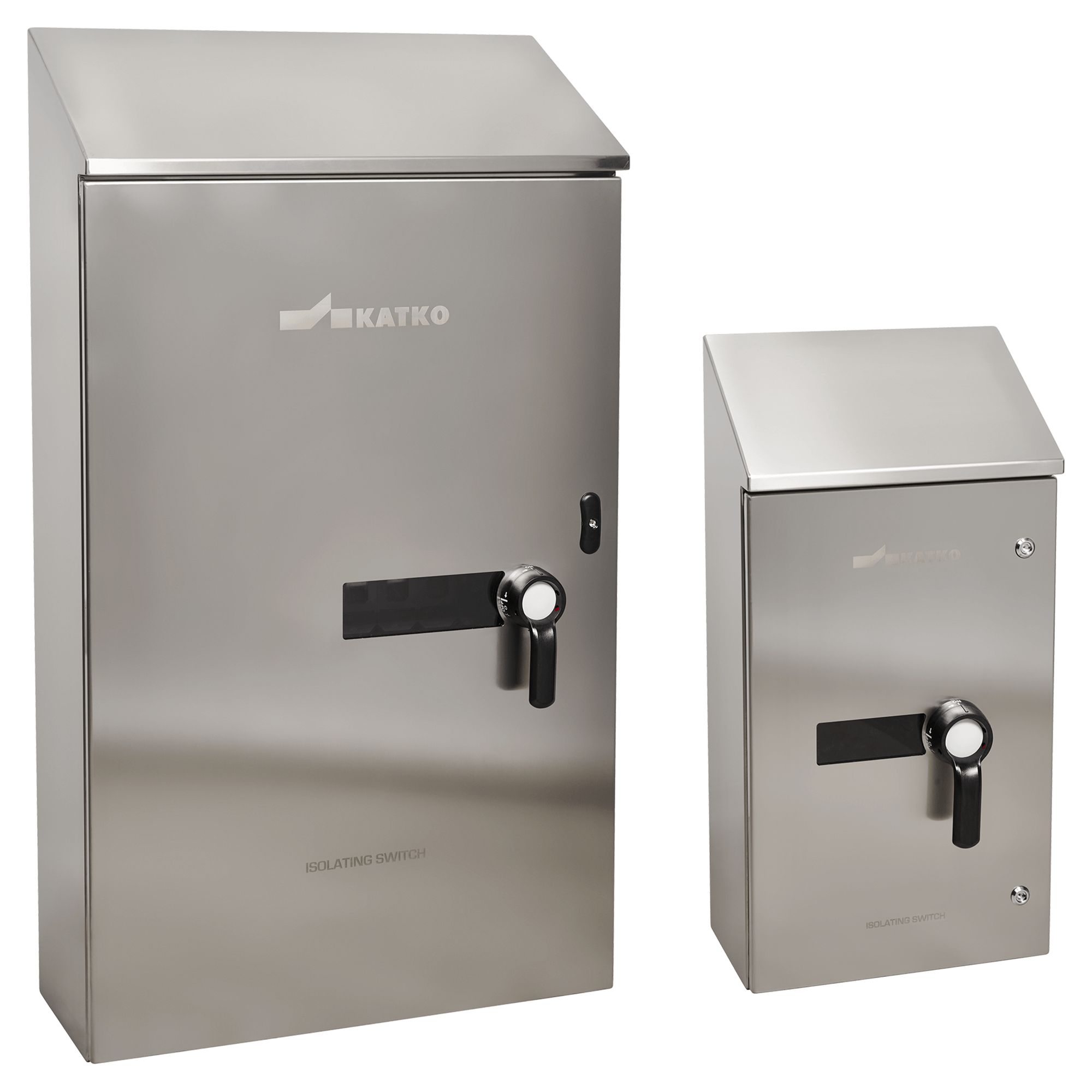

Wyłącznik ze stali nierdzewnej KER z widoczną przerwą

IP66; AISI 316 Enclosure types RA6AVS, RA7AVS, RA7BVS, RA10VS
Where hygiene and good protection against corrosion are required
Visual isolating: visual status indication window in enclosure
Padlockable with three locks
Door interlock with defeat mechanism
Tested according to IEC 60947-3
6 and 8-pole versions available
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Accessories

Dane mogą ulec zmianie bez powiadomienia. Zawsze potwierdź dane u swojego sprzedawcy.

Produkty

Typ	Liczba Pól	AC-22A 400/415 V (A)	EAN	Obudowa	AC-23A 400/415 V (A/kW)	AC-23A 690 V (A/kW)
KER 3160P RA6AVS	3	160 A	6419410266229	RA6AVS	160 A / 90 kW	160 A / 132 kW
KER 4160P RA6AVS	4	160 A	6419410266236	RA6AVS	160 A / 90 kW	160 A / 132 kW
KER 3200 RA6AVS	3	200 A	6419410266243	RA6AVS	200 A / 110 kW	200 A / 160 kW
KER 4200 RA6AVS	4	200 A	6419410266250	RA6AVS	200 A / 110 kW	200 A / 160 kW
KER 3250 RA6AVS	3	250 A	6419410230824	RA6AVS	250 A / 132 kW	250 A / 250 kW
KER 3400 RA7AVS	3	400 A	6419410230831	RA7AVS	400 A / 200 kW	400 A / 355 kW
KER 3630 RA7BVS	3	630 A	6419410230848	RA7BVS	630 A / 355 kW	630 A / 630 kW
KER 3800 RA10VS	3	800 A	6419410230855	RA10VS	800 A / 400 kW	800 A / 800 kW
KER 4250 RA6AVS	4	250 A	6419410206904	RA6AVS	250 A / 132 kW	250 A / 250 kW
KER 4400 RA7AVS	4	400 A	6419410207000	RA7AVS	400 A / 200 kW	400 A / 355 kW
KER 4630 RA7BVS	4	630 A	6419410207062	RA7BVS	630 A / 355 kW	630 A / 630 kW
KER 4800 RA10VS	4	800 A	6419410207260	RA10VS	800 A / 400 kW	800 A / 800 kW
