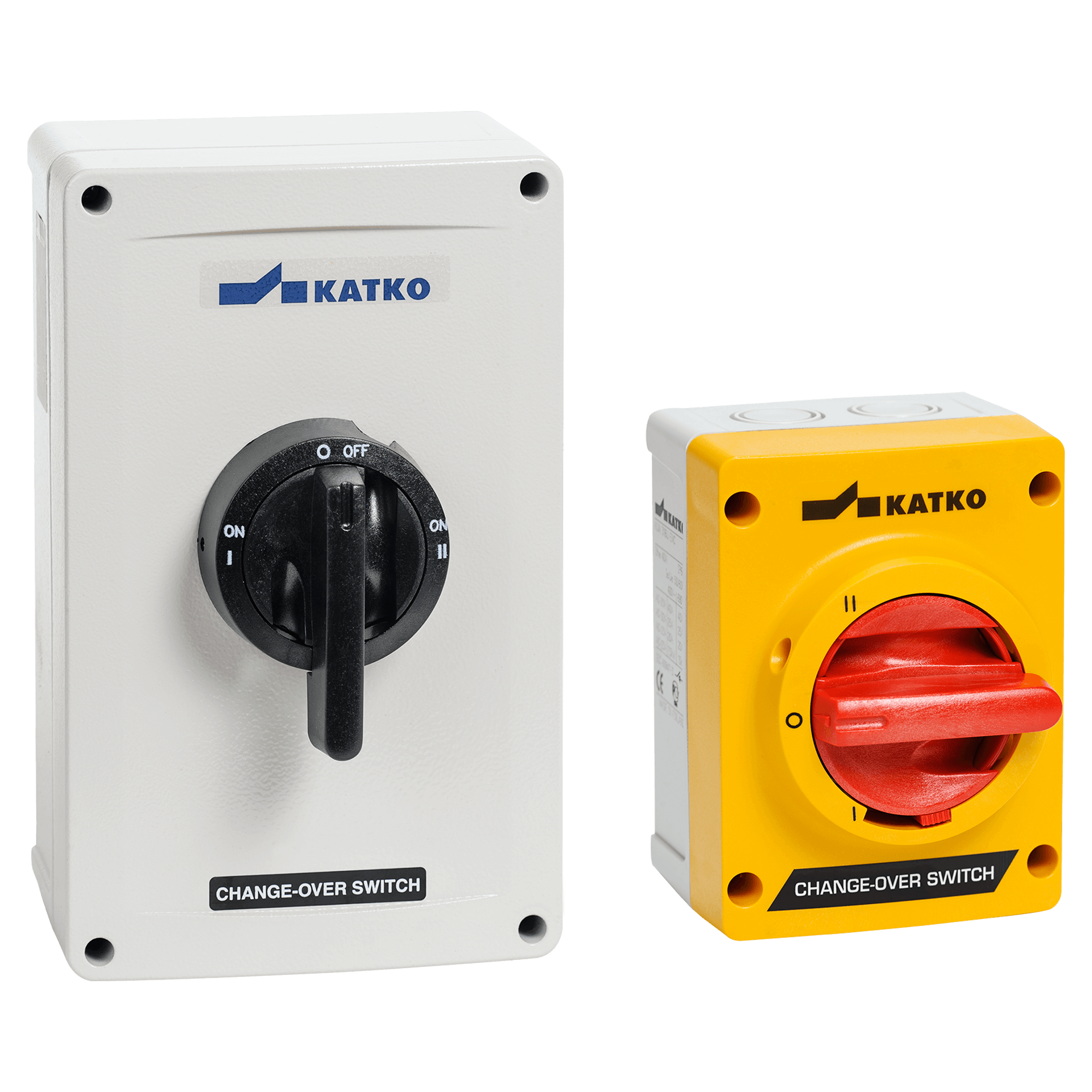

Przełączniki rodzaju zasilania 16-160A

Polycarbonate (TKM, KEM) or aluminium (KEA) enclosures
TKM-models with cam switch 16 to 40 A
KEM and KEA models consist of two KU or VKA switches connected by a change-over kit and range from 16 to 160 A
IP66; enclosure types U2, U3, A2
IP65; enclosure type MF11
Self-extinguishing material
Excellent insulating properties
Wide operating temperature range
Good resistance against many chemicals
Good UV resistance
Padlockable with three locks
Door interlock with defeat mechanism
Tested according to IEC 60947-3

Note: Certyfikaty mogą się różnić w zależności od produktu. Sprawdź certyfikaty dla produktu na stronie produktu

Dane mogą ulec zmianie bez powiadomienia. Zawsze potwierdź dane u swojego sprzedawcy.

Produkty

SKU	Typ Obudowy	Liczba Pól	AC-22 400/415 V	AC-23 400/415 V	AC-23 690 V	EAN	Obudowa
TKM 225VV YR M2 3XM25P	Polycarbonate	2	25 A	25 A / 11 kW		6419410346969	M2
TKM 240VV YR M2 3XM25P	Polycarbonate	2	40 A	40 A / 18,5 kW		6419410346983	M2
TKM 316VV YR M2 3XM25P	Polycarbonate	3	16 A	16 A / 7,5 kW		6419410345764	M2
KEM 316VV YR M3	Polycarbonate	3	16 A	16 A / 7,5 kW	16 A / 11 kW	6419410320723	M3
TKM 325VV YR M2 3XM25P	Polycarbonate	3	25 A	25 A / 11 kW		6419410345740	M2
KEM 325VV YR M3	Polycarbonate	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410320730	M3
TKM 340VV YR M2 3XM25P	Polycarbonate	3	40 A	40 A / 18,5 kW		6419410345788	M2
KEM 340VV YR M3	Polycarbonate	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410320747	M3
KEM 363VV YR M3	Polycarbonate	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410320754	M3
KEM 380VV YR M3	Polycarbonate	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410320761	M3
KEM 3100CVV YR MF11	Polycarbonate	3	100 A	63 A / 30 kW	40 A / 37 kW	6419410320778	MF11
KEM 3125CVV YR MF11	Polycarbonate	3	125 A	63 A / 30 kW	40 A / 37 kW	6419410320785	MF11
KEM 3160CO YR MF11	Polycarbonate	3	160 A	135 A / 75 kW	125 A / 90 kW	6419410320556	MF11
TKM 416VV YR M2 3XM25P	Polycarbonate	4	16 A	16 A / 7,5 kW		6419410347065	M2
KEM 416VV YR M3	Polycarbonate	4	16 A	16 A / 7,5 kW	16 A / 11 kW	6419410320921	M3
TKM 425VV YR M2 3XM25P	Polycarbonate	4	25 A	25 A / 11 kW		6419410347072	M2
KEM 425VV YR M3	Polycarbonate	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410320938	M3
TKM 440VV YR M2 3XM25P	Polycarbonate	4	40 A	40 A / 18,5 kW		6419410347096	M2
KEM 440VV YR M3	Polycarbonate	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410320945	M3
KEM 463VV YR M3	Polycarbonate	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410320952	M3
KEM 480VV YR M3	Polycarbonate	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410320969	M3
KEM 4100CVV YR MF11	Polycarbonate	4	100 A	63 A / 30 kW	40 A / 37 kW	6419410320976	MF11
KEM 4125CVV YR MF11	Polycarbonate	4	125 A	63 A / 30 kW	40 A / 37 kW	6419410320983	MF11
KEM 4125CO YR MF11	Polycarbonate	4	125 A	100 A / 55 kW	80 A / 55 kW	6419410320471	MF11
KEM 4160CO YR MF11	Polycarbonate	4	160 A	135 A / 75 kW	125 A / 90 kW	6419410320570	MF11
TKM 225VV M2 3XM25P	Polycarbonate	2	25 A	25 A / 11 kW		6419410346952	M2
TKM 240VV M2 3XM25P	Polycarbonate	2	40 A	40 A / 18,5 kW		6419410346976	M2
KEA 480VV YR A4	Aluminium	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410332351	A4
TKM 316VV M2 3XM25P	Polycarbonate	3	16 A	16 A / 7,5 kW		6419410345757	M2
KEA 316VV A4	Aluminium	3	16 A	16 A / 7,5 kW	16 A / 11 kW	6419410329863	A4
KEM 316VV M3	Polycarbonate	3	16 A	16 A / 7,5 kW	16 A / 11 kW	6419410320624	M3
KEA 325VV A4	Aluminium	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410329870	A4
TKM 325VV M2 3XM25P	Polycarbonate	3	25 A	25 A / 11 kW		6419410345733	M2
KEA 340VV A4	Aluminium	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410329887	A4
KEM 325VV M3	Polycarbonate	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410320631	M3
KEA 363VV A4	Aluminium	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410329894	A4
TKM 340VV M2 3XM25P	Polycarbonate	3	40 A	40 A / 18,5 kW		6419410345771	M2
KEA 380VV A4	Aluminium	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410329900	A4
KEM 340VV M3	Polycarbonate	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410320648	M3
KEA 416VV A4	Aluminium	4	16 A	16 A / 7,5 kW	16 A / 11 kW	6419410332245	A4
KEM 363VV M3	Polycarbonate	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410320655	M3
KEA 425VV A4	Aluminium	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410332252	A4
KEM 380VV M3	Polycarbonate	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410320662	M3
KEA 440VV A4	Aluminium	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410332269	A4
KEM 3100CVV MF11	Polycarbonate	3	100 A	63 A / 30 kW	40 A / 37 kW	6419410320679	MF11
KEM 3125CVV MF11	Polycarbonate	3	125 A	63 A / 30 kW	40 A / 37 kW	6419410320686	MF11
KEM 3160CO MF11	Polycarbonate	3	160 A	135 A / 75 kW	125 A / 90 kW	6419410320501	MF11
TKM 416VV M2 3XM25P	Polycarbonate	4	16 A	16 A / 7,5 kW		6419410347058	M2
KEM 416VV M3	Polycarbonate	4	16 A	16 A / 7,5 kW	16 A / 11 kW	6419410320853	M3
TKM 425VV M2 3XM25P	Polycarbonate	4	25 A	25 A / 11 kW		6419410345948	M2
KEM 425VV M3	Polycarbonate	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410320860	M3
TKM 440VV M2 3XM25P	Polycarbonate	4	40 A	40 A / 18,5 kW		6419410347089	M2
KEM 3125CO MF11	Polycarbonate	3	125 A	125 A / 55 kW	80 A / 75 kW	6419410320402	MF11
KEM 440VV M3	Polycarbonate	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410320877	M3
KEM 463VV M3	Polycarbonate	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410320884	M3
KEM 480VV M3	Polycarbonate	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410320891	M3
KEA 463VV A4	Aluminium	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410332276	A4
KEM 4100CVV M4	Polycarbonate	4	100 A	63 A / 30 kW	40 A / 37 kW	6419410320907	M4
KEA 480VV A4	Aluminium	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410332283	A4
KEM 4125CVV MF11	Polycarbonate	4	125 A	63 A / 30 kW	40 A / 37 kW	6419410320914	MF11
KEM 4125CO MF11	Polycarbonate	4	125 A	100 A / 55 kW	80 A / 55 kW	6419410320426	MF11
KEM 4160CO MF11	Polycarbonate	4	160 A	135 A / 75 kW	125 A / 90 kW	6419410320525	MF11
KEM 3125CO YR MF11	Polycarbonate	3	125 A	125 A / 55 kW	80 A / 75 kW	6419410320457	MF11
KEA 316VV YR A4	Aluminium	3	16 A	16 A / 7,5 kW	16 A / 11 kW	6419410329931	A4
KEA 325VV YR A4	Aluminium	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410329948	A4
KEA 340VV YR A4	Aluminium	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410329955	A4
KEA 363VV YR A4	Aluminium	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410329962	A4
KEA 380VV YR A4	Aluminium	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410329979	A4
KEA 416VV YR A4	Aluminium	4	16 A	16 A / 7,5 kW	16 A / 11 kW	6419410332313	A4
KEA 425VV YR A4	Aluminium	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410332320	A4
KEA 440VV YR A4	Aluminium	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410332337	A4
KEA 463VV YR A4	Aluminium	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410332344	A4
