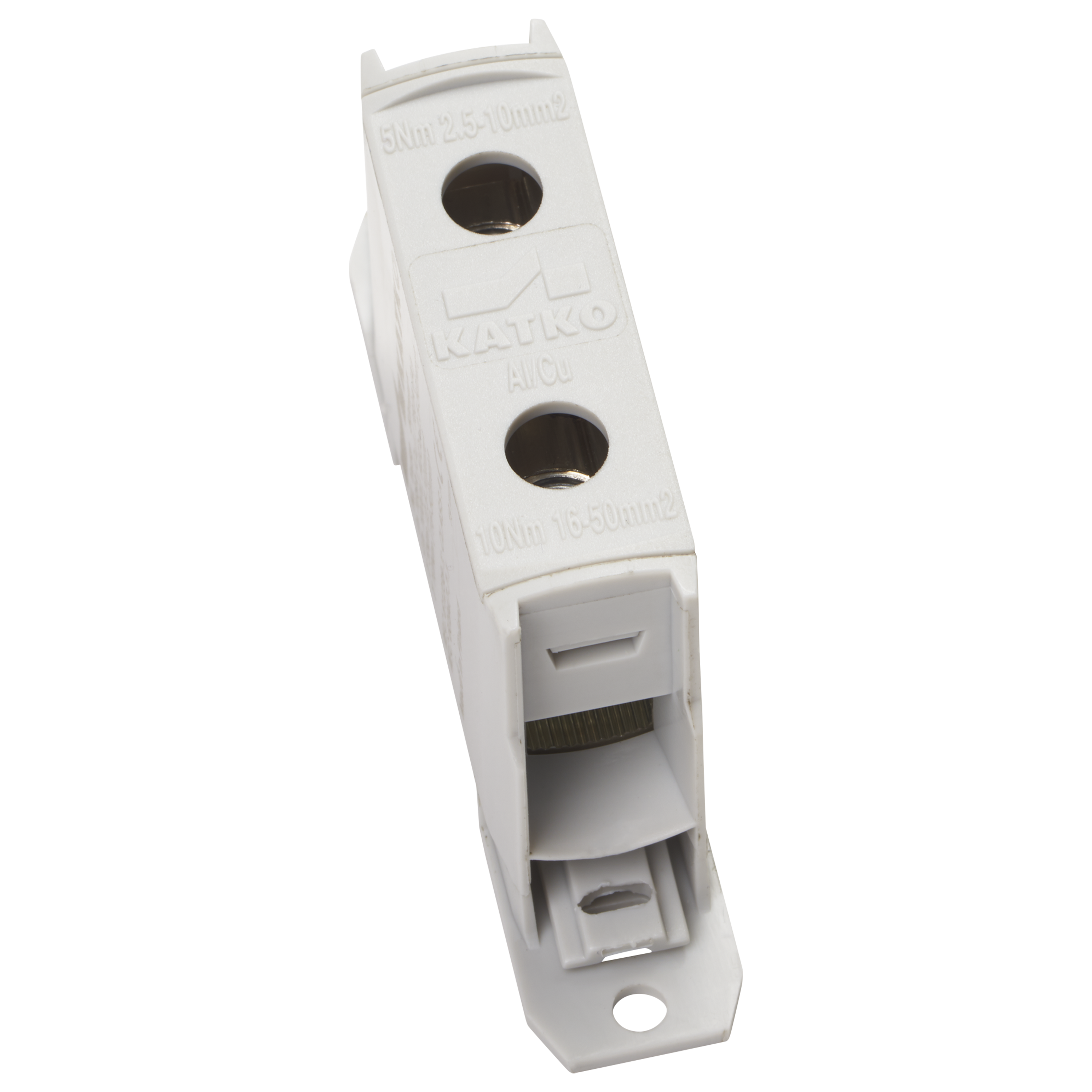

KL1X50

UL Listed Terminal Blocks

• UL listed connector
• Sales unit = 1 piece
• Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables
• Available in grey, blue (N) and yellow/green (PE)
• Touchproof, IP20
• Housing and cover in polyamide
• Terminal material KL tin-coated, greased aluminium
• Environmentally friendly materials
• Durable laser markings

UL CATALOGUE PAGE>>

Terminal Blocks

• Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) conductors
• 1000 V AC and 1500 V DC
• Operating temperature is -25 ℃ …+80 ℃
• KC-terminals and KL1X16 models for DIN-rail mounting, refer to detailed product specifications
• KL-terminals (excl. KL1X16 models) for DIN-rail or base mounting, refer to detailed product specifications
• Available in grey, blue (N) yellow/green (PE), red (P) and black (M)
• 50 and 95 mm2 connectors also available as 1-pole branching connector (3x) and 3-pole connector (3x1x)
• Terminal material KC steel and brass
• Housing and cover in polyamide
• Terminal material KL tin-coated, greased aluminium
• The aluminum used in the terminals has an environmental impact that is four times smaller compared to the European average.
• Touchproof, IP20
• Durable laser markings
• Sales unit = 1 piece

Certificates:

• KL range: Certified according to IEC 61238-1 Class A
• KL range: Certified according to IEC 60947-7-1 (terminal blocks for copper conductors)
• KL range: Certified according to IEC 60947-7-2 (protective conductor terminal blocks for copper conductors​)
• KL range: Certified according to IEC TS 60947-7-5 (terminal blocks for aluminium conductors​)

Accessories:

• KLTS50 – 300 terminal shrouds available
