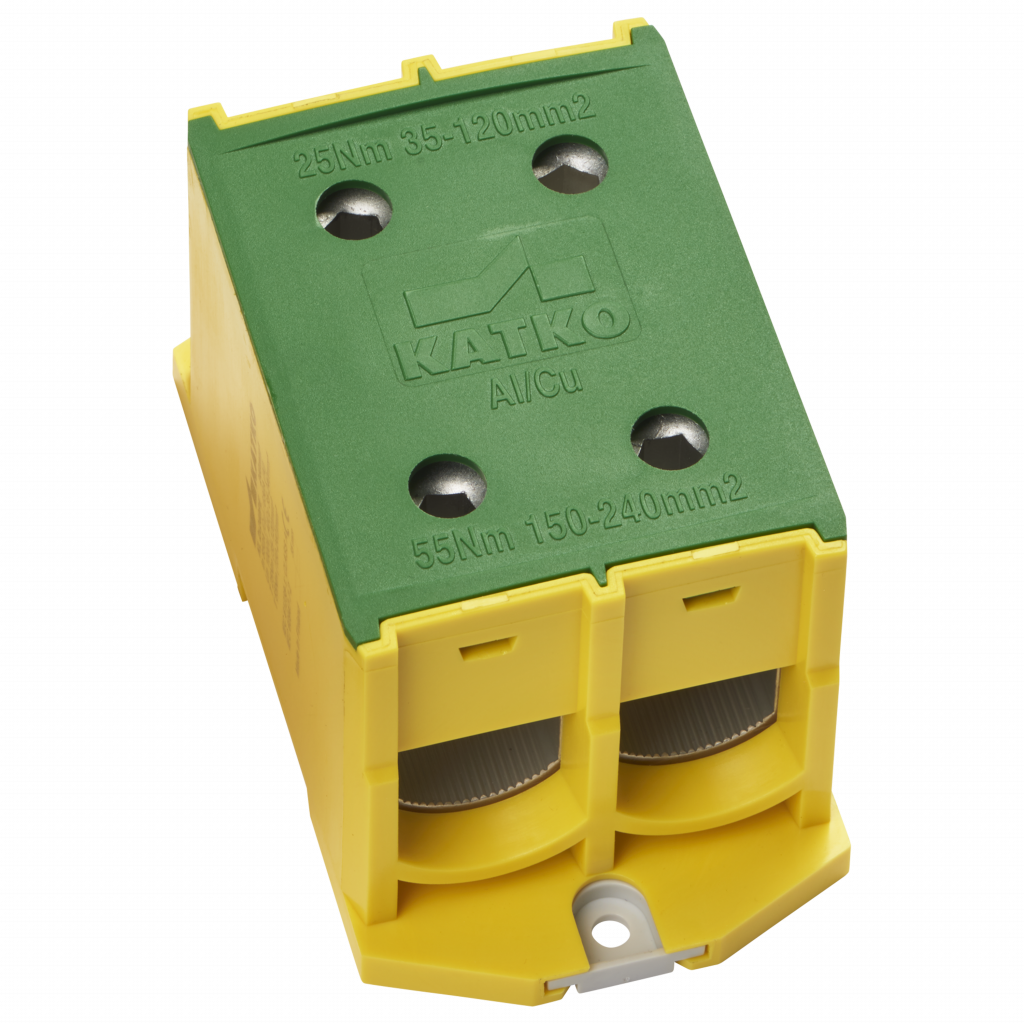

KL2X240PE
Terminal Blocks
- Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) conductors
- 1000 V AC and 1500 V DC
- Operating temperature is -25 ℃ …+80 ℃
- KC-terminals and KL1X16 models for DIN-rail mounting, refer to detailed product specifications
- KL-terminals (excl. KL1X16 models) for DIN-rail or base mounting, refer to detailed product specifications
- Available in grey, blue (N) yellow/green (PE), red (P) and black (M)
- 50 and 95 mm2 connectors also available as 1-pole branching connector (3x) and 3-pole connector (3x1x)
- Terminal material KC steel and brass
- Housing and cover in polyamide
- Terminal material KL tin-coated, greased aluminium
- The aluminum used in the terminals has an environmental impact that is four times smaller compared to the European average.
- Touchproof, IP20
- Durable laser markings
- Sales unit = 1 piece
Certificates:
- KL range: Certified according to IEC 61238-1 Class A
-
KL range: Certified according to IEC 60947-7-1 (terminal blocks for copper conductors)
- KL range: Certified according to IEC 60947-7-2 (protective conductor terminal blocks for copper conductors)
- KL range: Certified according to IEC TS 60947-7-5 (terminal blocks for aluminium conductors)
Accessories:
- KLTS50 – 300 terminal shrouds available
Related materials:
Product details
| SKU | KL2X240PE |
|---|---|
| Al mm² | 35 - 240 |
| Color | PE |
| Cu mm² | 35 - 240 |
| E-Number | 1942078 |
| EAN | 6419410378489 |
| In (Al) (A) | 630 |
| In (Cu) (A) | 850 |
| Key size | Hex 8 |
| Mounting | Screw / DIN |
| Number of Conductors | 4 |
| Package size | 8 |
| Torque Al/Cu (Nm) | 25 (35 - 120 mm²) / 55 (150 - 240 mm²) |
| Un (V) | 1000 |
| Weight (lb/kg) | 1.151 / 0.522 |
