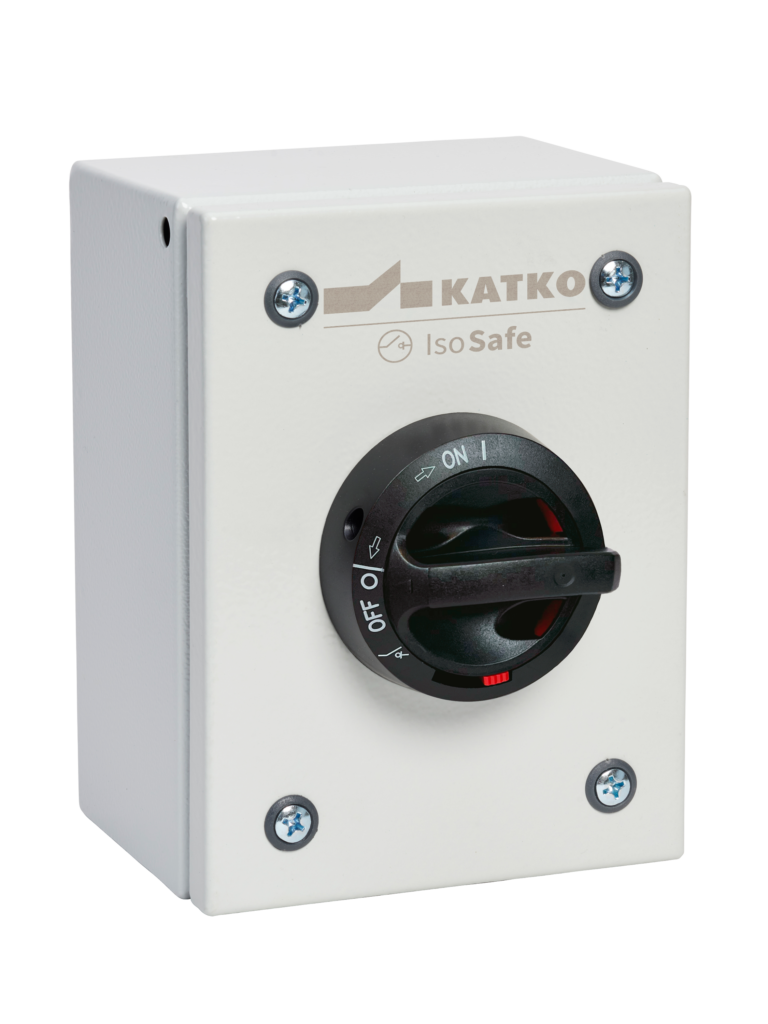

ISF 430UL T3
UL listed enclosed manual motor controllers ISF-series 16-40A
- Available in polycarbonate (M2 & M3), aluminium (A2), sheet steel (T3) and acid proof steel AISI 316L (RA2, RA4, RA2R & RA2RS)
- ISF models with new 16-40 A LoadSafe switches
- Type 4X enclosure
- Across the line, motor starting up to 20 HP / 600 V
- General use rating 16 A to 40 A / 600 V
- Side-mounted auxiliary contacts
- More wiring space
- Padlockable
- Available as EMC versions. EMC models you can find here.
Product details
| SKU | ISF 430UL T3 |
|---|---|
| Ampere Rating (600V) | 30 A |
| Color | Standard |
| EAN | 6419410294659 |
| Enclosure | T3 |
| HP 208V | 5HP |
| HP 480V | 10HP |
| HP 600V | 15HP |
| Number of Poles | 4 |
| Weight (lb/kg) | 5.3 / 2.4 |
| Wire Size (Cu Only) | 14-8 AWG |
Dimensional drawing
