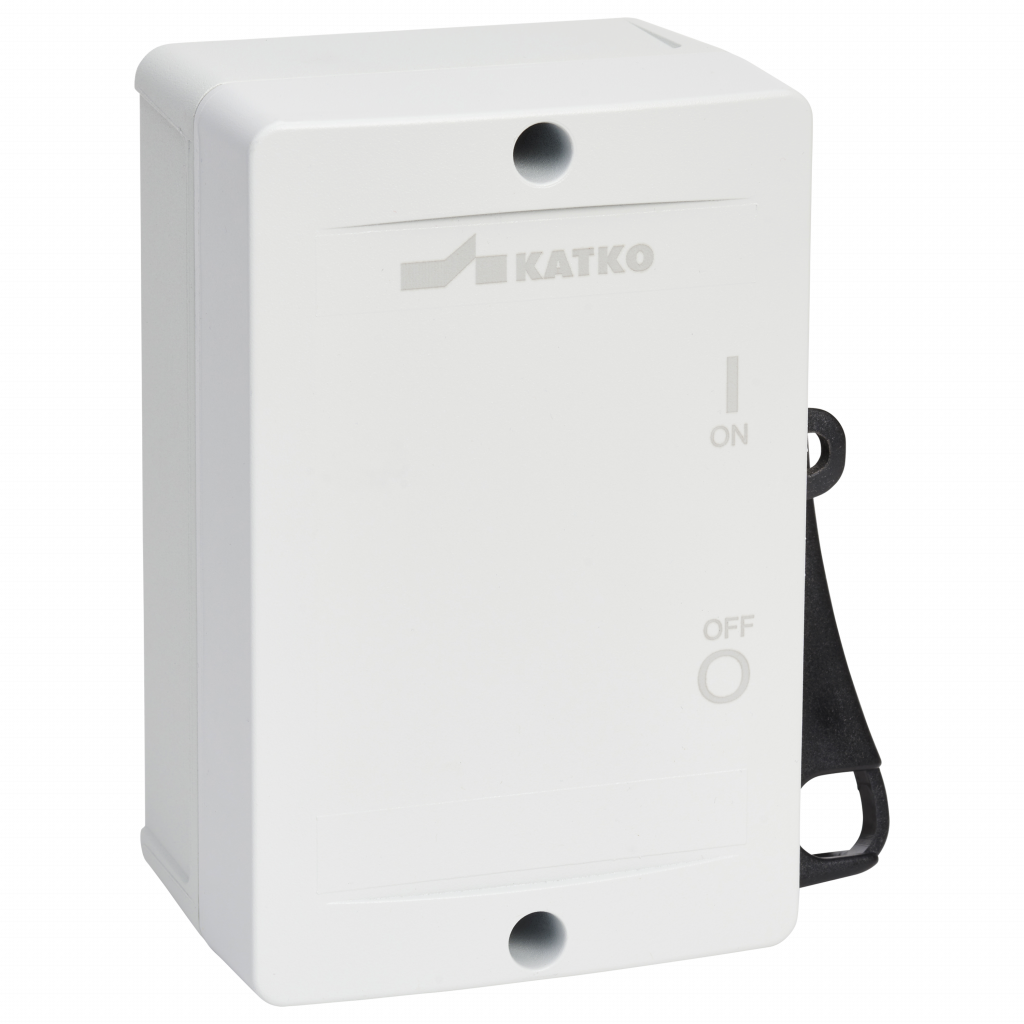

Note: Product images do not represent this product. Actual product may differ from shown images.
Data subject to change without notice. Always confirm the data is correct from the seller.
KE 416 AYR A2S 2XM25M KST16M
Side operated aluminium switches 16-40A
- Available in grey/black, yellow/red or fireman red
- Good resistance against UV and many chemicals
- Withstands high impact and has wide operating temperature
- Fully rated Load Break Switch breaking capacity of 8 x AC23 rating
- Cable entries: 2 x M25 as standard on the top and bottom
- Large cable terminals 1,5 – 16 mm 2
- Mounting holes: 213,0 x 144,0
- Padlockable handle in 0-position and also available in 1-position
- EMC shielding with EMC glands as an option
- KE handle on right side, KEF handle on left side
- Tested according to IEC 60947-3
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KE 416 AYR A2S 2XM25M KST16M |
|---|---|
| AC-21 400/415 V (A) | 16 A |
| AC-21 690 V (A) | 16 A |
| AC-22 400/415 V (A) | 16 A |
| AC-22 690 V (A) | 16 A |
| AC-23 400/415 V (A/kW) | 16 A / 7.5 kW |
| AC-23 690 V (A/kW) | 16 A / 11 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 1.5-16 |
| Color | Yellow / Red |
| EAN | 6419410304631 |
| Enclosure | A2S |
| Enclosure Type | Aluminium |
| IP Rating | 66 |
| Number of Poles | 4 |
| Operation | Side-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 0.9 |
Dimensional drawing
