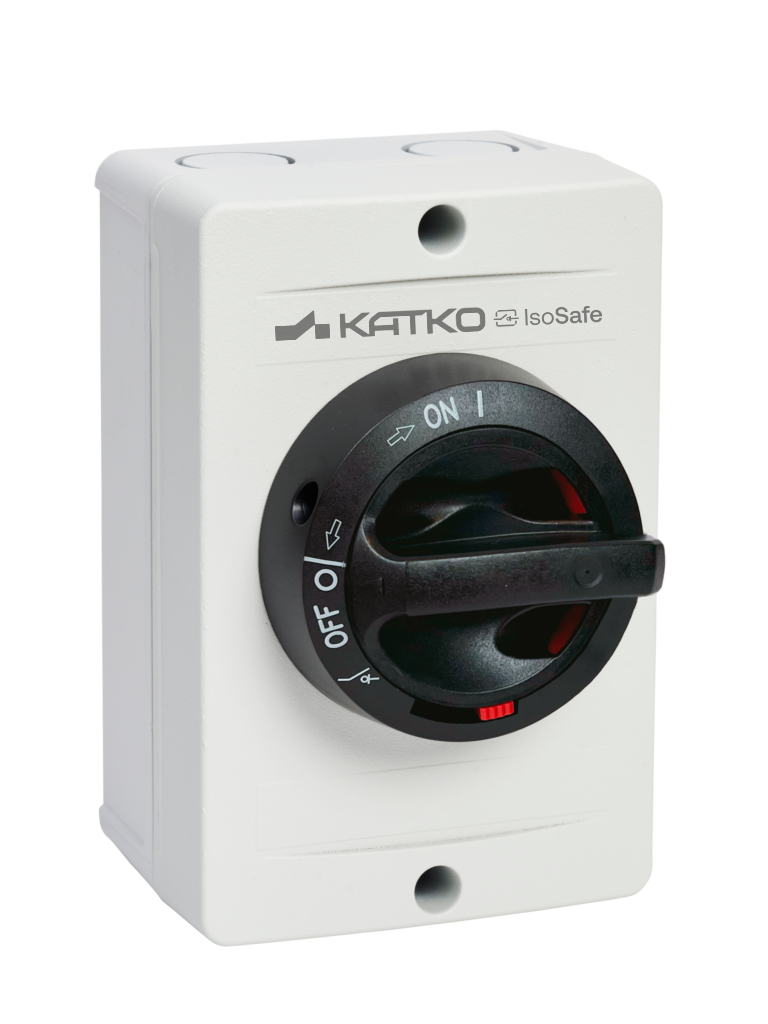

KEA 225 A2
KEA Aluminium 16-250A
- IP66; Enclosure types A2, A4
- IP65; Enclosure types A5, A6
- IK08; A2, A4 (Degree of mechanical impact)
- IK10: A5, A6
- Excellent for hard weather conditions
- Wide operating temperature range
- Good resistance against many chemicals
- Good UV resistance
- Padlockable
- Door interlock with defeat mechanism
- Tested according to IEC 60947-3
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KEA 225 A2 |
|---|---|
| AC-21 400/415 V (A) | 40 A |
| AC-22 400/415 V (A) | 25 A |
| AC-23 400/415 V (A/kW) | 25 A / 4 kW (240V) |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 1.5-16 |
| Color | Standard |
| EAN | 6419410351680 |
| Enclosure | A2 |
| Enclosure Type | Aluminium |
| IP Rating | 66 |
| Number of Poles | 2 |
| Operation | Front-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 0.8 |
Dimensional drawing
