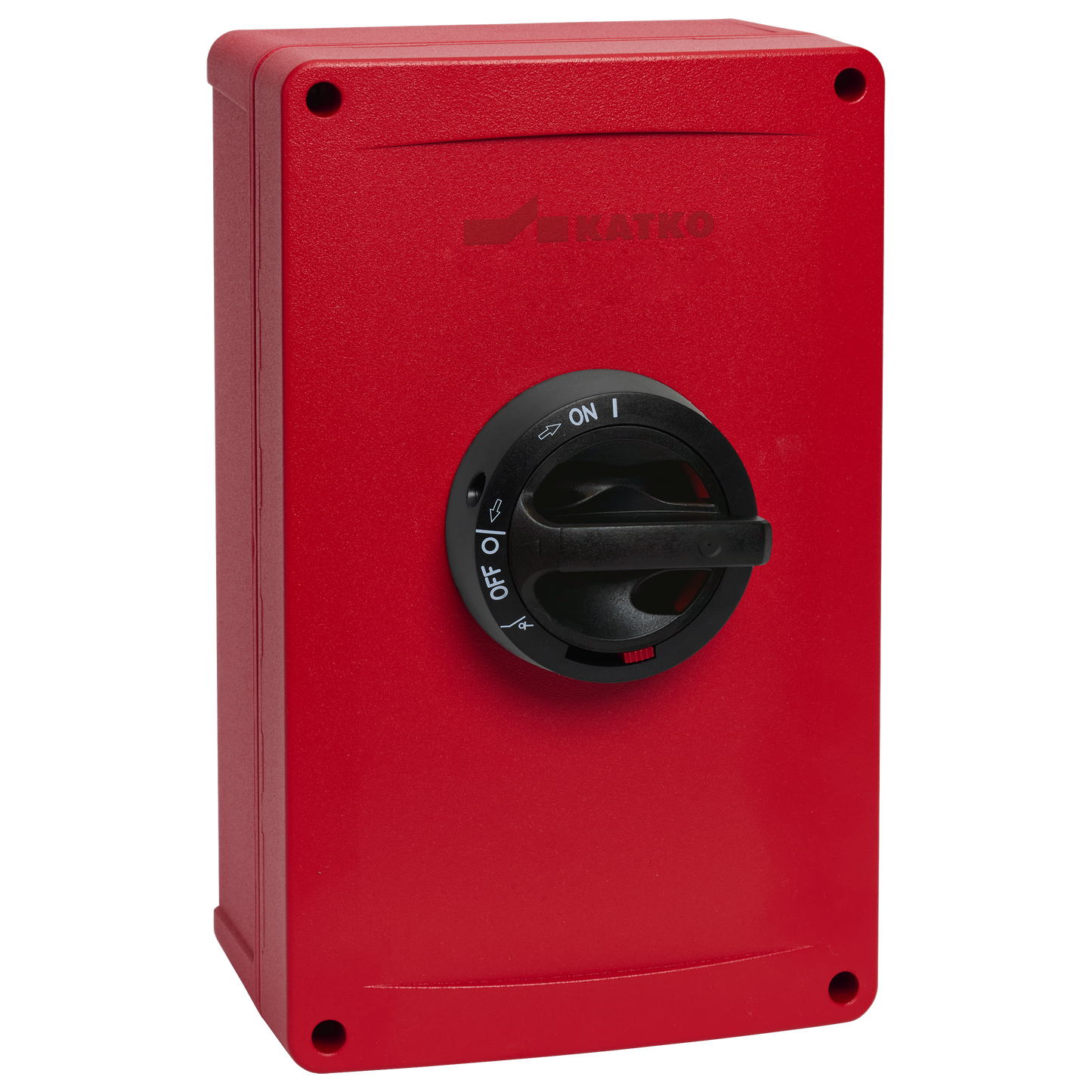

KEA 4160C FR A4
KEA Firerated aluminium 16-200A
- F200 3H (FR) / F300 2H (FR3)
- FR designed to conform to F200 class of EN 12101-3 smoke and heat standard, 200°C for 3 hours
- FR3 designed to conform to F300 class of EN 12101-3 smoke and heat standard, 300°C for 2 hours
- IP66: Enclosure types A2, A4
- IP65: Enclosure types A5, A6
- Padlockable
- Door interlock with defeat mechanism
- ON-locking facility as option
- Good corrosion and UV resistance
- Excellent for hard weather conditions
- Tested according to IEC 60947-3
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KEA 4160C FR A4 |
|---|---|
| AC-21 400/415 V (A) | 160 A |
| AC-21 690 V (A) | 160 A |
| AC-22 400/415 V (A) | 160 A |
| AC-22 690 V (A) | 160 A |
| AC-23 400/415 V (A/kW) | 160 A / 90 kW |
| AC-23 690 V (A/kW) | 100 A / 90 kW |
| EAN | 6419410300497 |
| Enclosure | A4 |
| IP Rating | 66 |
| Number of Poles | 4 |
| Weight (kg) | 3.6 |
