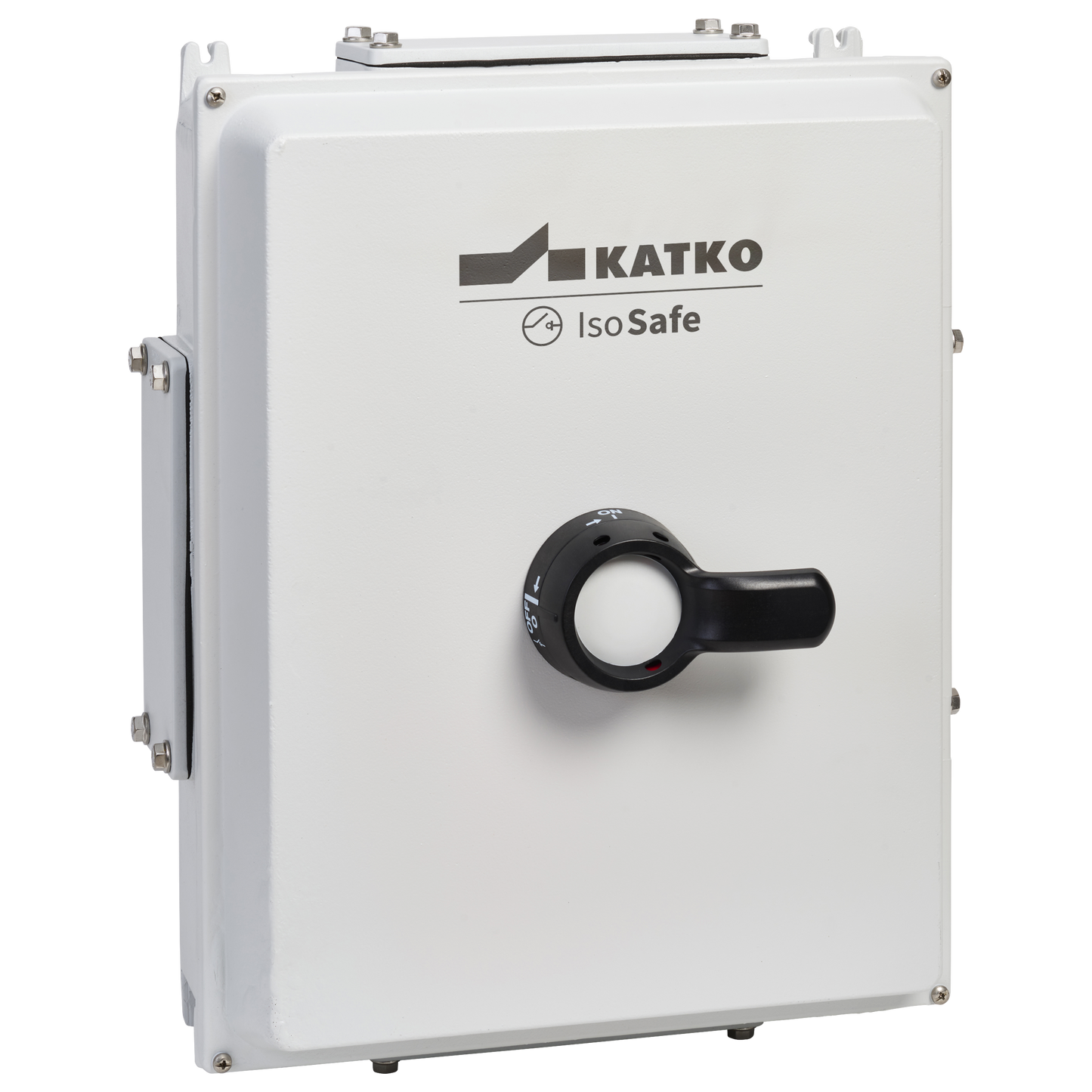

KEA 6125 FR A6
KEA Firerated aluminium 16-200A
- F200 3H (FR) / F300 2H (FR3)
- FR designed to conform to F200 class of EN 12101-3 smoke and heat standard, 200°C for 3 hours
- FR3 designed to conform to F300 class of EN 12101-3 smoke and heat standard, 300°C for 2 hours
- IP66: Enclosure types A2, A4
- IP65: Enclosure types A5, A6
- Padlockable
- Door interlock with defeat mechanism
- ON-locking facility as option
- Good corrosion and UV resistance
- Excellent for hard weather conditions
- Tested according to IEC 60947-3
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KEA 6125 FR A6 |
|---|---|
| AC-21 400/415 V (A) | 160 A |
| AC-21 690 V (A) | 160 A |
| AC-22 400/415 V (A) | 125 A |
| AC-22 690 V (A) | 125 A |
| AC-23 400/415 V (A/kW) | 100 A / 55 kW |
| AC-23 690 V (A/kW) | 80 A / 55 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 6-70 |
| Color | Standard |
| EAN | 6419410333730 |
| Enclosure | A6 |
| Enclosure Type | Firerated Aluminium |
| IP Rating | 65 |
| Number of Poles | 6 |
| Operation | Front-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 15 |
Dimensional drawing
