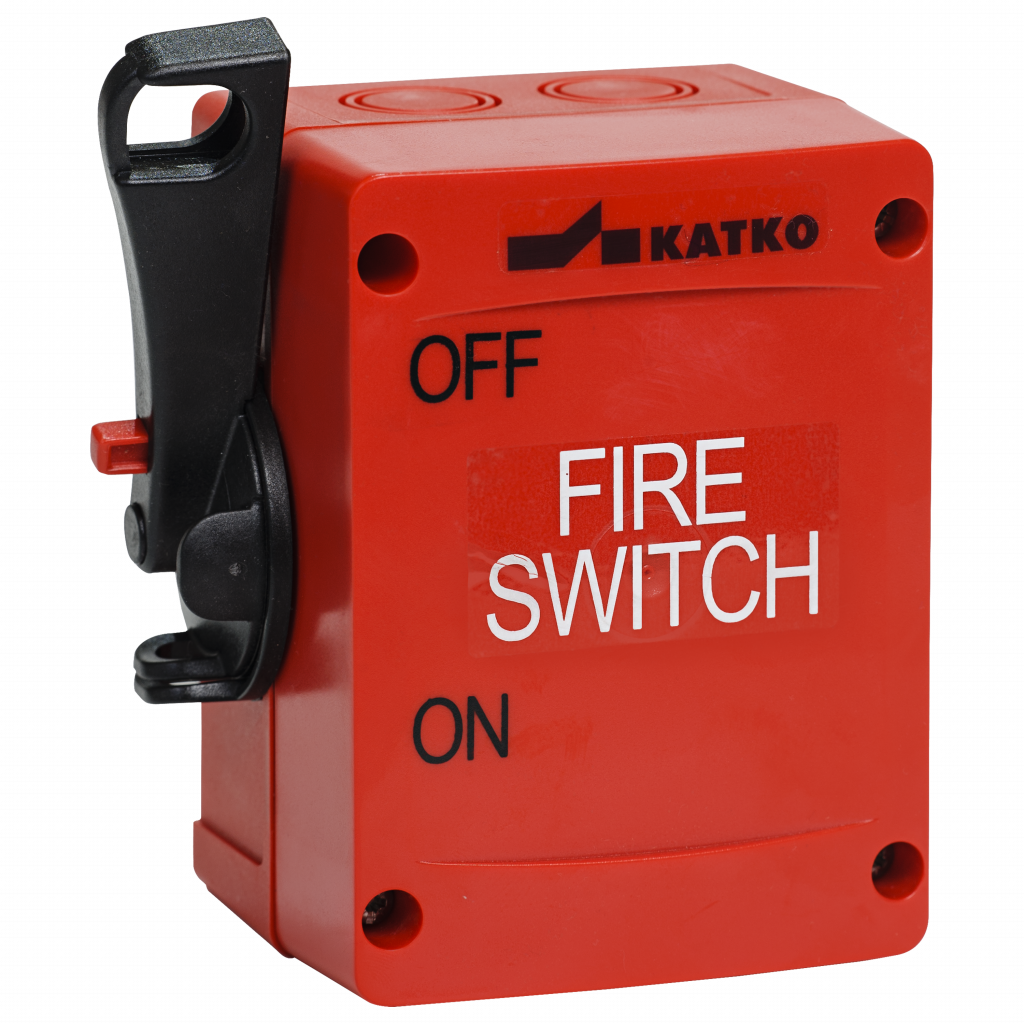

KEF 316 M M2S
Side operated polycarbonate switches 16-40A
- Available in grey/black, yellow/red or fireman red
- Good resistance against UV and many chemicals
- Self-extinguishing material and excellent insulating properties
- Fully rated Load Break Switch breaking capacity of 8 x AC23 rating
- Cable entries 2 x M20/M25 as standard on the top and bottom and M20 on the base
- Mounting holes: 118,0 x 84,0
- Padlockable handle in 0-position and also available in 1-position
- Knock-out glands are easy to open
- Large cable terminals 1,5 – 16 mm 2
- Tested according to IEC 60947-3
- KE = handle on right side
- KEF = Fireman switch, handle on left side
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KEF 316 M M2S |
|---|---|
| AC-21 400/415 V (A) | 16 A |
| AC-21 690 V (A) | 16 A |
| AC-22 400/415 V (A) | 16 A |
| AC-22 690 V (A) | 16 A |
| AC-23 400/415 V (A/kW) | 16 A / 7.5 kW |
| AC-23 690 V (A/kW) | 16 A / 11 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 1.5-16 |
| Color | Standard |
| EAN | 6419410304365 |
| Enclosure | M2S |
| Enclosure Type | Polycarbonate |
| IP Rating | 66 |
| Number of Poles | 3 |
| Operation | Side-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 0.5 |
Dimensional drawing
