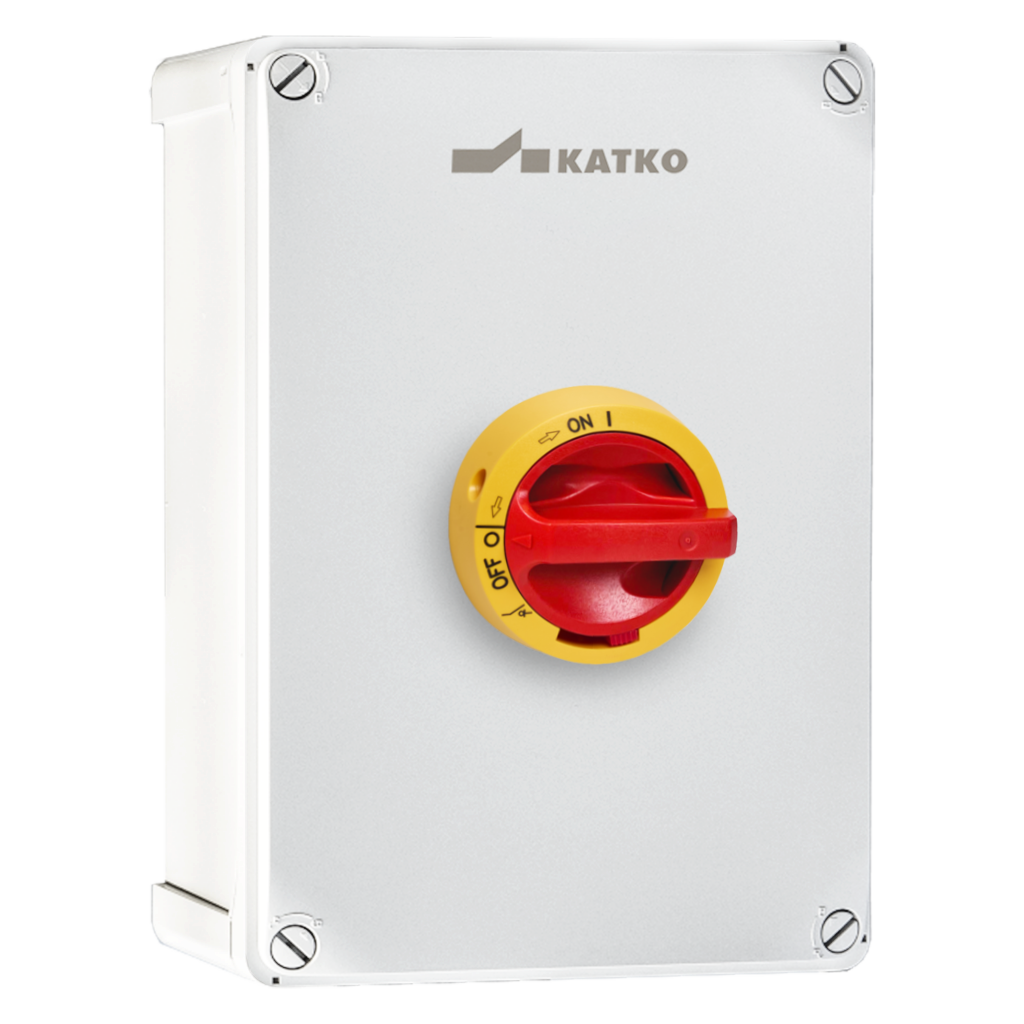

KEM 3125 YR M4EMC 2XM40MEMC
EMC Switches 10-630A
- Electromagnetic compatibility ensures safe operation in environments with electromagnetic disturbance
- Tested according to EMC EN 61000-6-3:2007+A1(2011) with EMC- glands shielded power cable
- IP66
- Available in polycarbonate up to 125 A, aluminium up to 160 A and sheet steel up to 630 A
- Padlockable
- EMC cable glands included
- Door interlock with defeat mechanism
- Tested according to IEC 60947-3
- Also available with 4, 6 or 8-poles
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KEM 3125 YR M4EMC 2XM40MEMC |
|---|---|
| AC-21 400/415 V (A) | 160 A |
| AC-21 690 V (A) | 160 A |
| AC-22 400/415 V (A) | 125 A |
| AC-22 690 V (A) | 125 A |
| AC-23 400/415 V (A/kW) | 125 A / 55 kW |
| AC-23 690 V (A/kW) | 80 A / 75 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 6-70 |
| Cable Gland | 2xM40 |
| Color | Yellow / Red |
| EAN | 6419410315538 |
| Enclosure | M4 |
| Enclosure Type | Polycarbonate |
| IP Rating | 66 |
| Number of Poles | 3 |
| Operation | Front-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 1 |
Dimensional drawing
