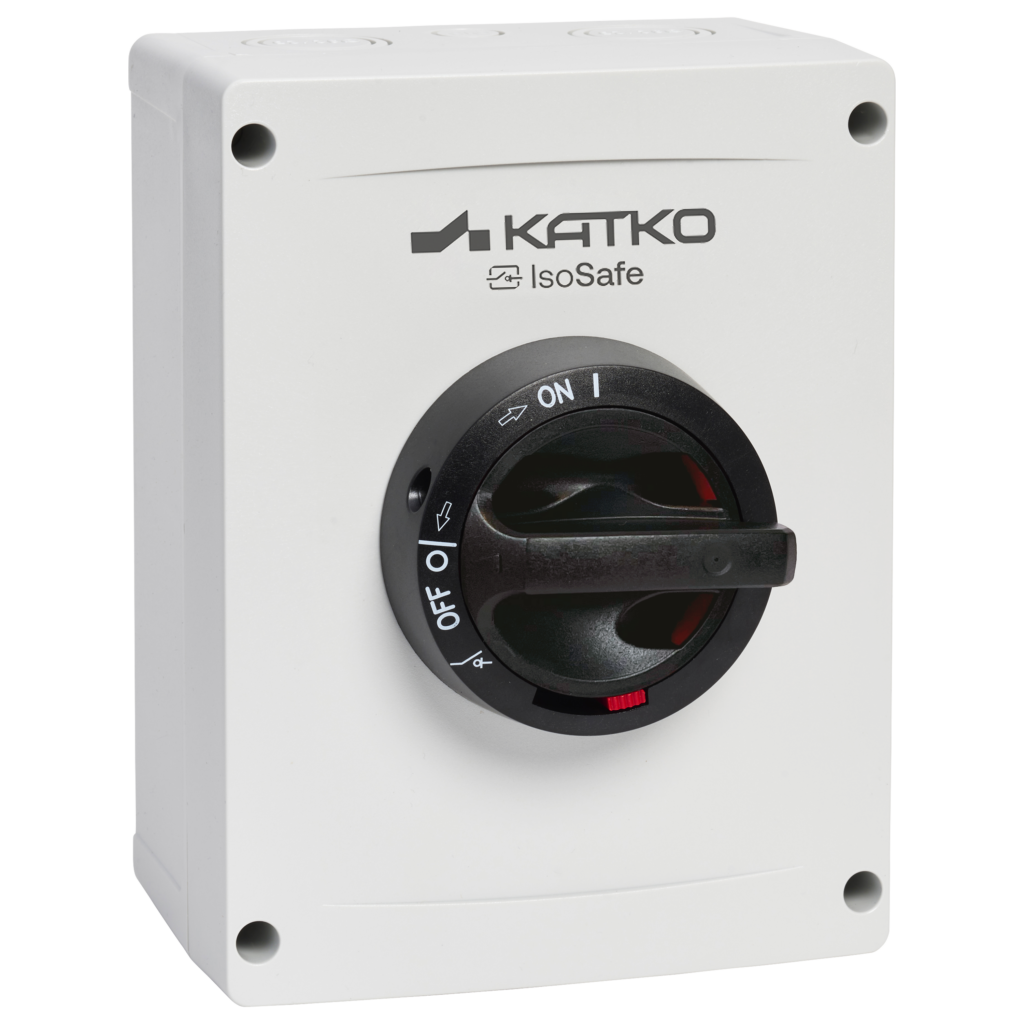

KEM 325 M3
Archived Isolators 10-40A
Product details
| SKU | KEM 325 M3 |
|---|---|
| AC-21 400/415 V (A) | 40 A |
| AC-21 690 V (A) | 40 A |
| AC-22 400/415 V (A) | 25 A |
| AC-22 690 V (A) | 25 A |
| AC-23 400/415 V (A/kW) | 25 A / 11 kW |
| AC-23 690 V (A/kW) | 25 A / 22 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 1.5-16 |
| Color | Standard |
| EAN | 6419410351512 |
| Enclosure | M3 |
| Enclosure Type | Polycarbonate |
| IP Rating | IP66 |
| Number of Poles | 3 |
| Operation | Front-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 0.6 |
Dimensional drawing
