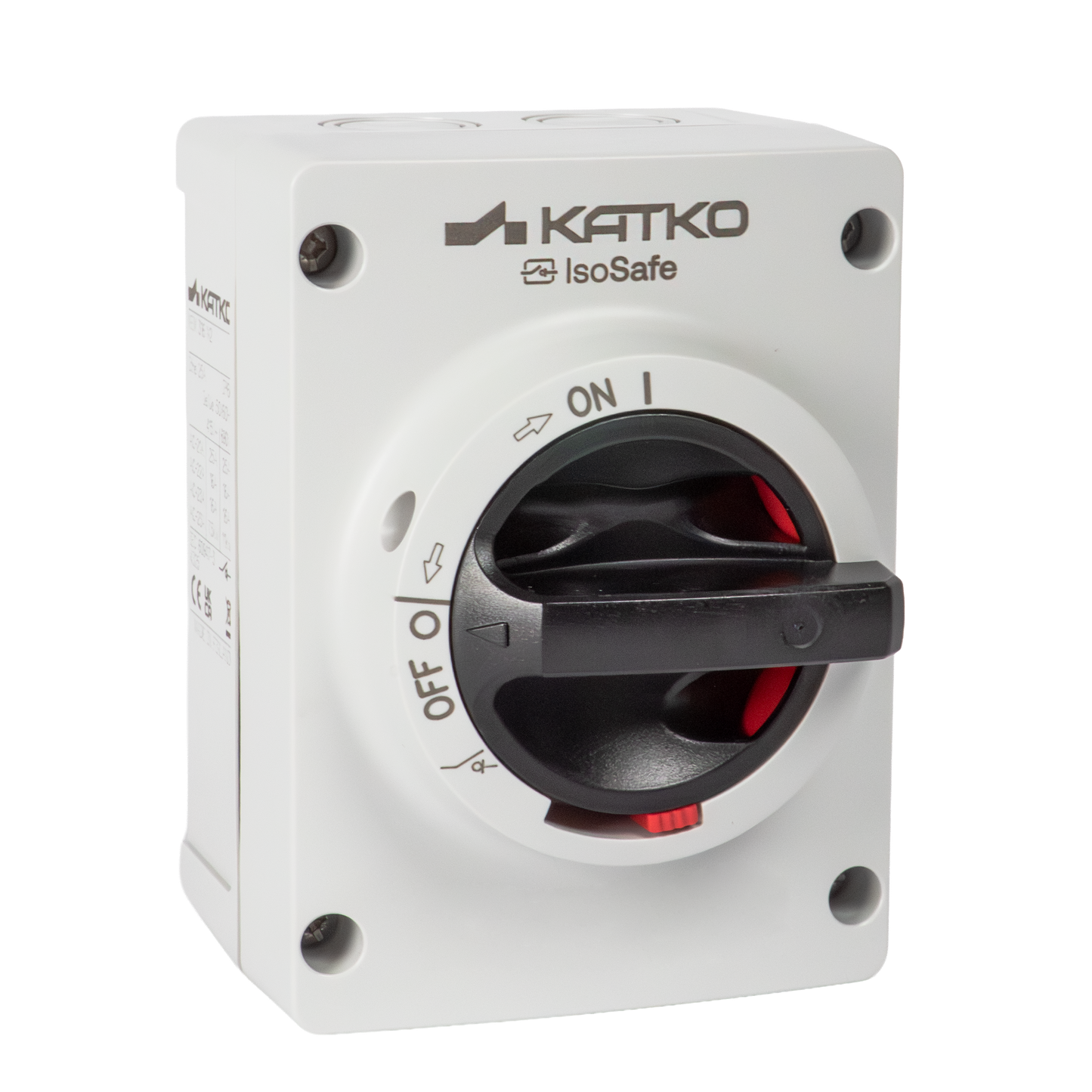

KEM 425UL M2
UL Listed polycarbonate enclosed manual motor controllers 16-150A
- Manual motor controller with disconnector means
- Type 4X enclosure
- Across the line, motor starting up to 75 HP/600 V
- General use rating from 25A to 125A/600V, refer to detailed product specifications
- Retrofit snap on auxiliary contacts
- Padlockable with three locks
- UL 60947-4-1A
Product details
| SKU | KEM 425UL M2 |
|---|---|
| Ampere Rating (600V) | 25 A |
| Color | Standard |
| EAN | 6419410351253 |
| Enclosure | M2 |
| HP 208V | 5HP |
| HP 415V | 7.5HP |
| HP 480V | 15HP |
| HP 600V | 10HP |
| NEMA Rating | 4X |
| Number of Poles | 4 |
| Weight (lb/kg) | 1.102 / 0.5 |
| Wire Size (Cu Only) | 14-8AWG |
Dimensional drawing
