Data subject to change without notice. Always confirm the data is correct from the seller.

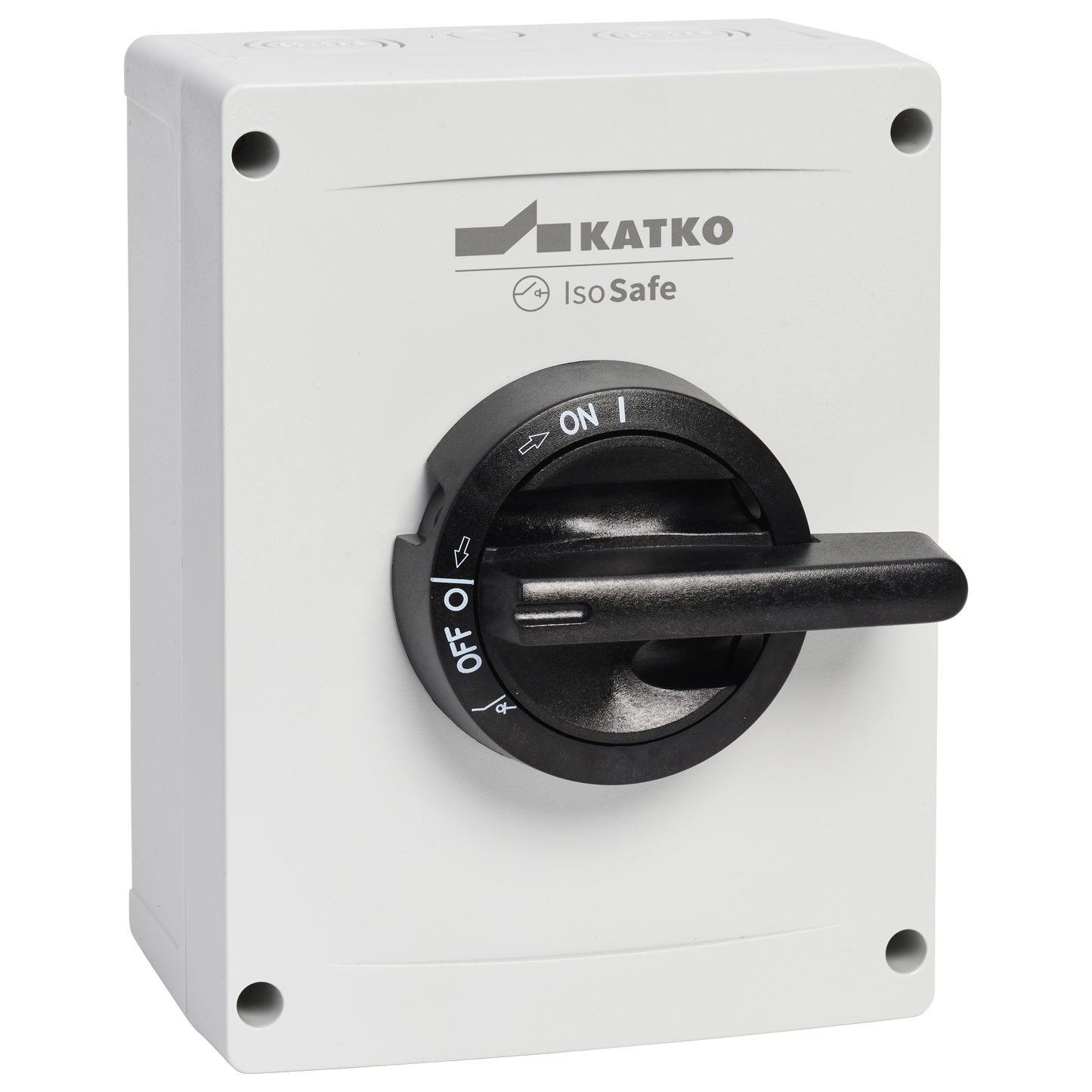

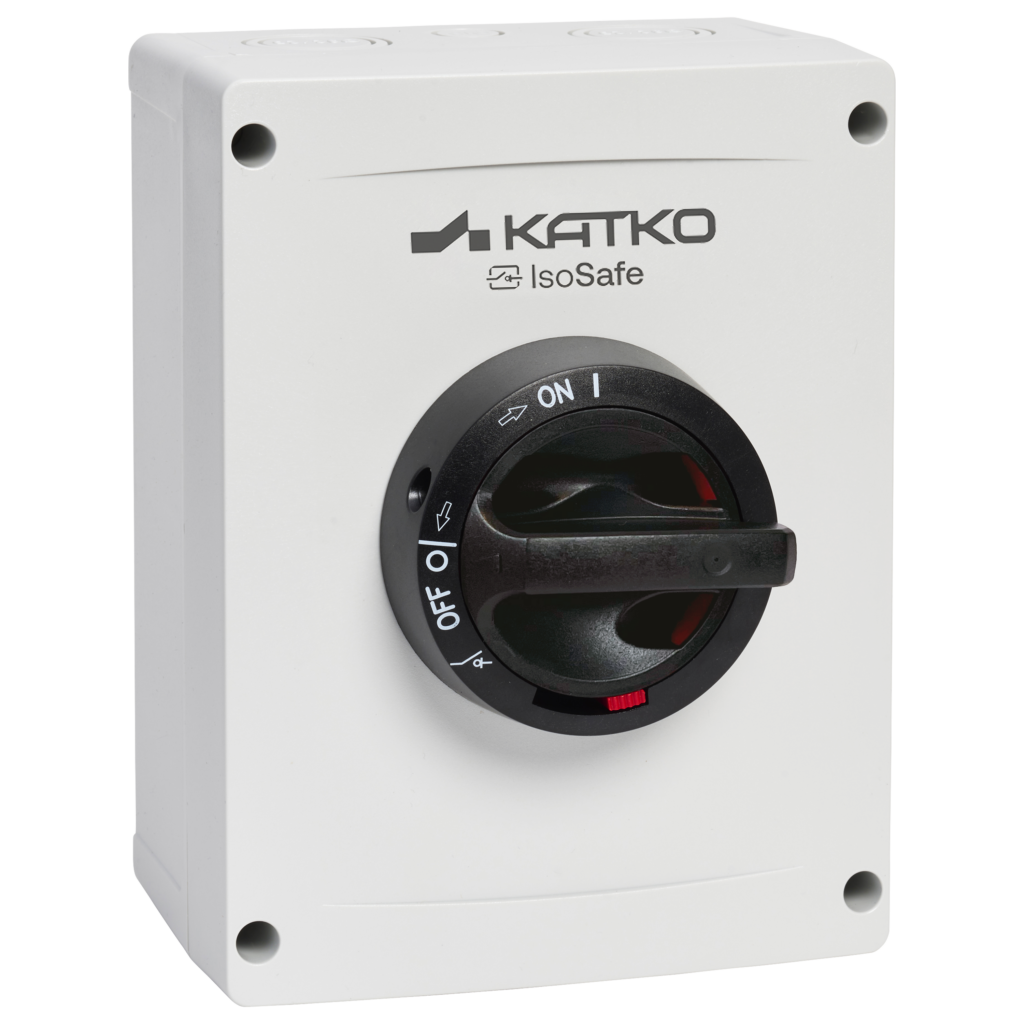

KEM 480 M3
KEM Polycarbonate 10-630A
- IP66; Enclosure types M2, M3, M4, MF11, MF01, MF02 MF03, MF04
- Self-extinguishing material
- Wide operating temperature range
- Padlockable with 3 locks
- Door interlock with defeat mechanism
- Excellent insulating properties
- Good UV resistance
- Good resistance against many chemicals
- Tested according to IEC 60947-3
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
KEM 16-40 A Installation guide video >>
KEM 63-80 A Installation guide video >>
Accessories
Product details
| SKU | KEM 480 M3 |
|---|---|
| AC-21 400/415 V (A) | 100 A |
| AC-21 690 V (A) | 100 A |
| AC-22 400/415 V (A) | 80 A |
| AC-22 690 V (A) | 80 A |
| AC-23 400/415 V (A/kW) | 63 A / 30 kW |
| AC-23 690 V (A/kW) | 40 A / 37 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 2.5-35 |
| Color | Standard |
| EAN | 6419410399699 |
| Enclosure | M3 |
| Enclosure Type | Polycarbonate |
| IP Rating | 66 |
| Number of Poles | 4 |
| Operation | Front-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 0.7 |
Dimensional drawing
