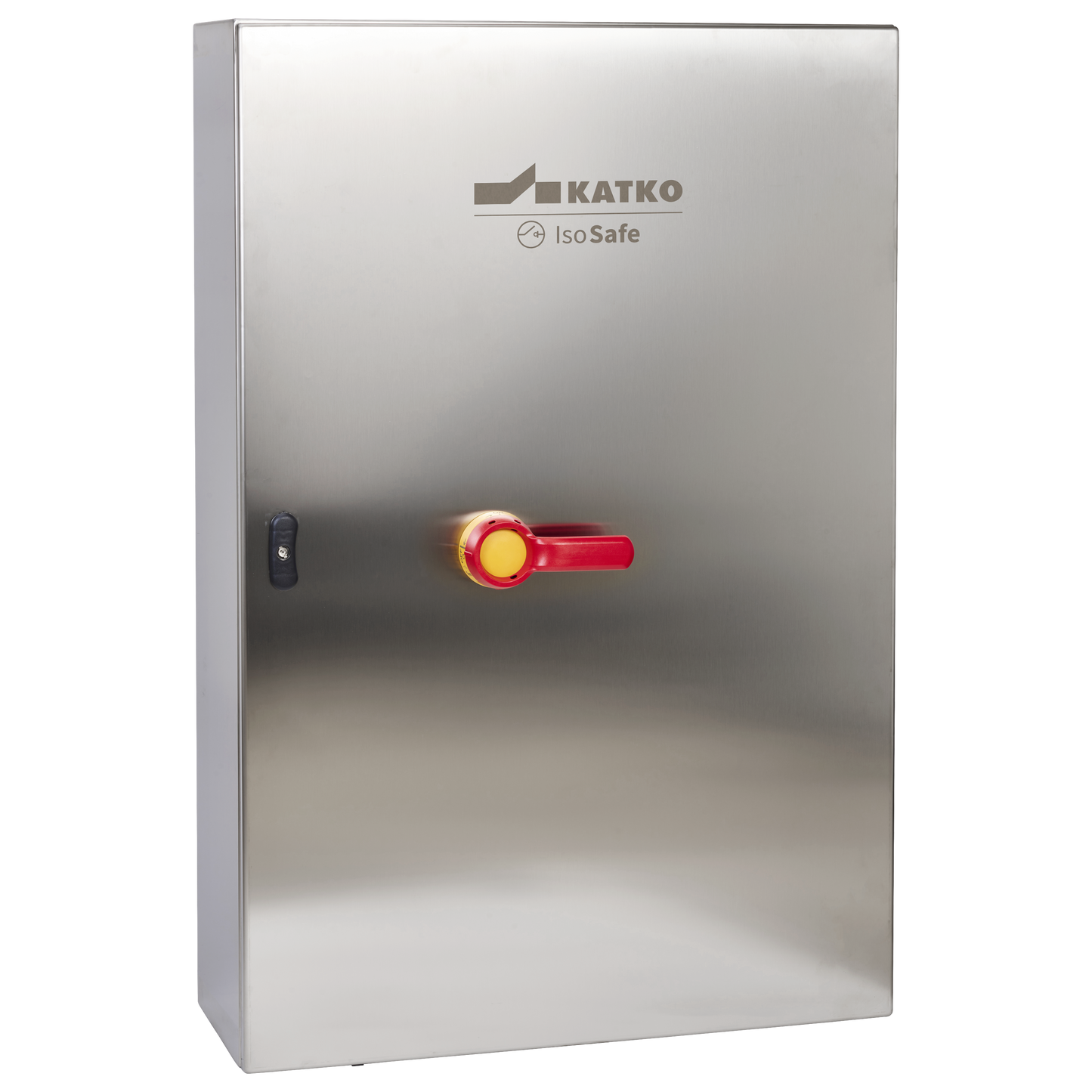

Note: Product images do not represent this product. Actual product may differ from shown images.
Data subject to change without notice. Always confirm the data is correct from the seller.
KER 31000 YR R10
KER Stainless Steel 16-1600A
- IP66; AISI 316L Enclosure types RA2, RA4, RA5
- IP66; AISI304 Enclosure types R6, R7, R8, R9, R10 (AISI 304 as standard, AISI 316L upon request)
- Where hygiene and good protection against corrosion are required
- Padlockable with three locks
- Door interlock with defeat mechanism
- Tested according to IEC 60947-3
- Also available as EMC, and EMC/EX -protected
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KER 31000 YR R10 |
|---|---|
| AC-21 400/415 V (A) | 1000 A |
| AC-21 690 V (A) | 1000 A |
| AC-22 400/415 V (A) | 1000 A |
| AC-22 690 V (A) | 1000 A |
| AC-23 400/415 V (A/kW) | 1000 A / 560 kW |
| AC-23 690 V (A/kW) | 1000 A / 800 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 6-70 |
| Color | Yellow / Red |
| EAN | 6419410305676 |
| Enclosure | R10 |
| Enclosure Type | Stainless Steel: Polycarbonate Handle |
| IP Rating | 65 |
| Number of Poles | 3 |
| Operation | Front-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 80 |
Dimensional drawing
