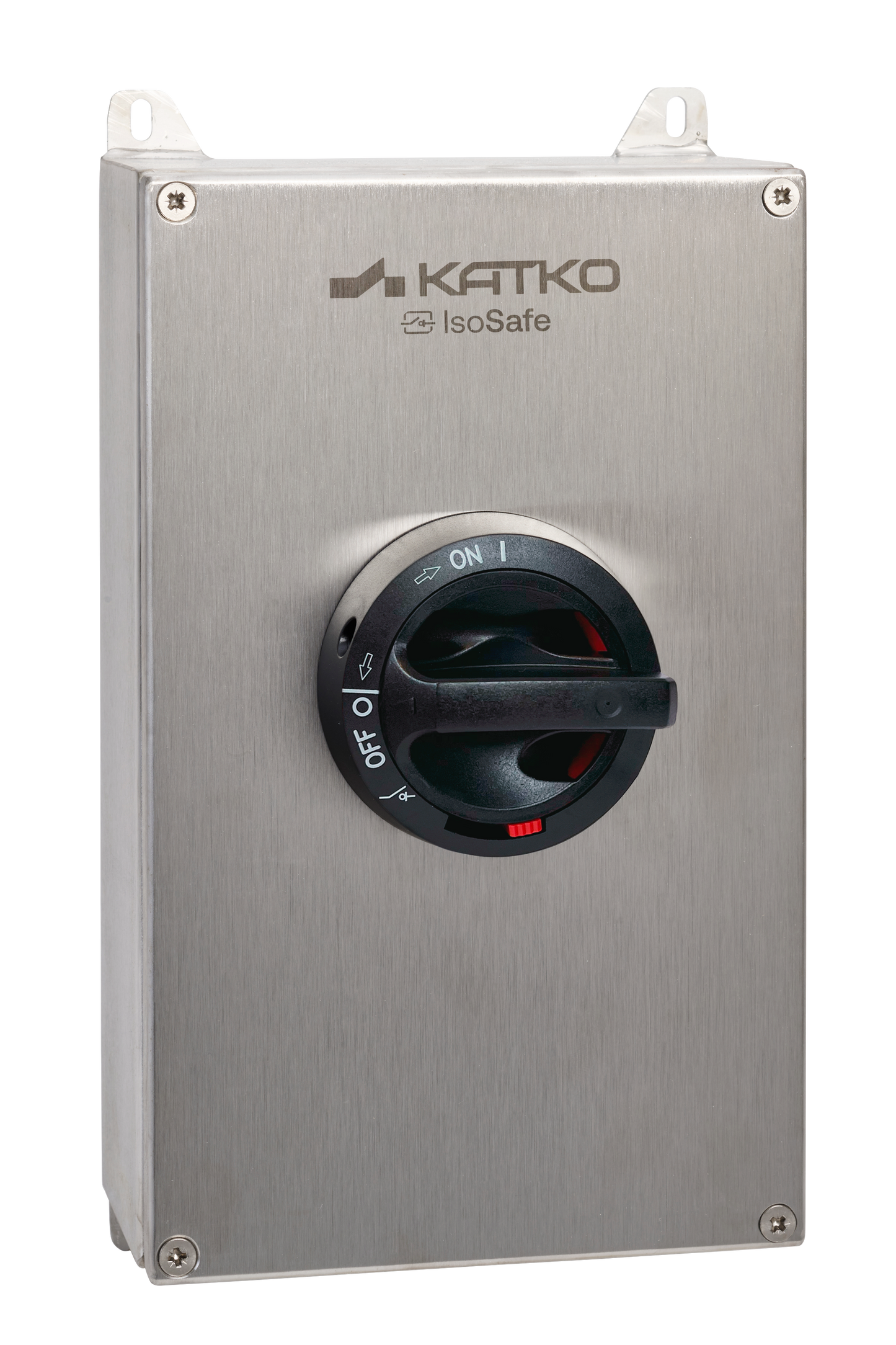

KER 3125 RA4

KER Stainless Steel 16-1600A

  • IP66; AISI 316L Enclosure types RA2, RA4, RA5
  • IP66; AISI304 Enclosure types R6, R7, R8, R9, R10 (AISI 304 as standard, AISI 316L upon request)
  • Where hygiene and good protection against corrosion are required
  • Padlockable with three locks
  • Door interlock with defeat mechanism
  • Tested according to IEC 60947-3
  • Also available as EMC, and EMC/EX -protected
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>

Accessories

Product details

SKU KER 3125 RA4
AC-21 400/415 V (A) 160 A
AC-21 690 V (A) 160 A
AC-22 400/415 V (A) 125 A
AC-22 690 V (A) 125 A
AC-23 400/415 V (A/kW) 125 A / 55 kW
AC-23 690 V (A/kW) 80 A / 75 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size 6-70
Color Standard
EAN 6419410343647
Enclosure RA4
Enclosure Type Stainless Steel: Polycarbonate Handle
IP Rating 66
Number of Poles 3
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 2.3

Dimensional drawing

Product diagram
