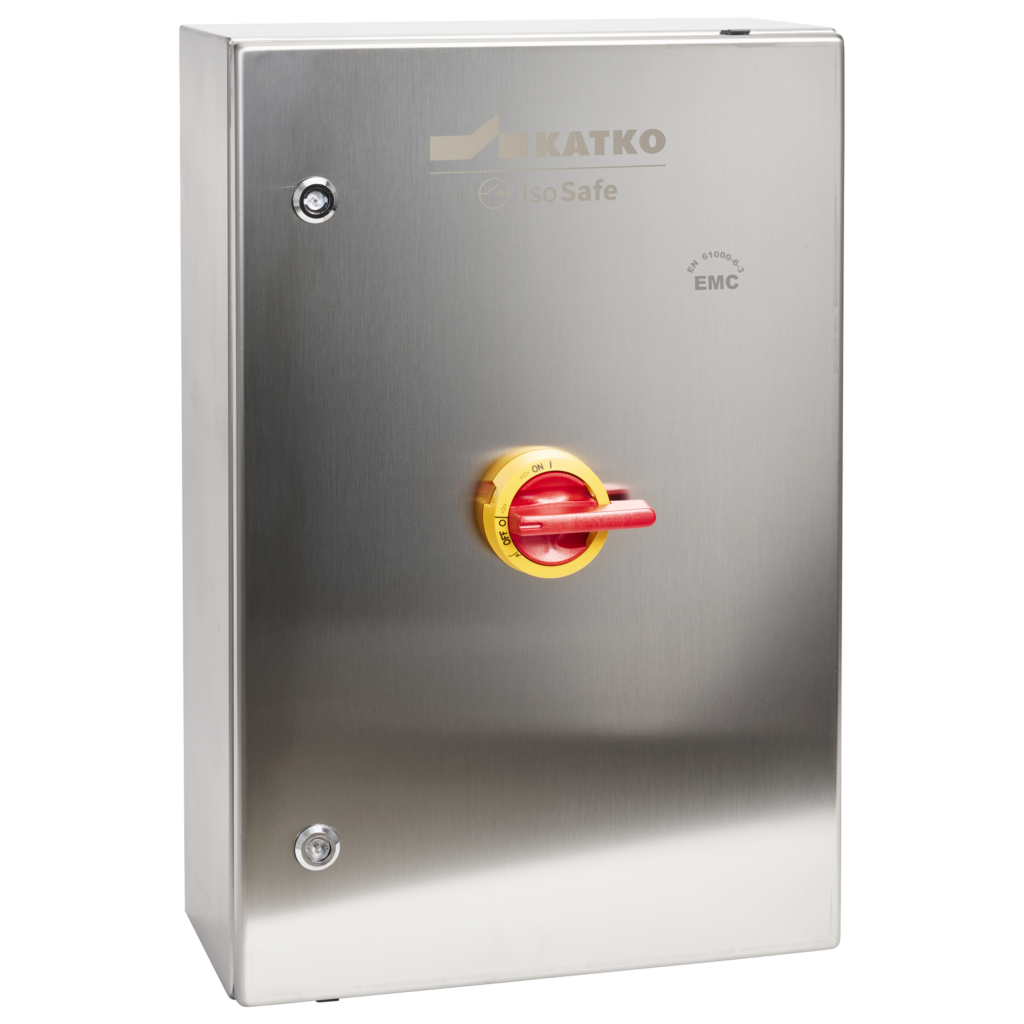

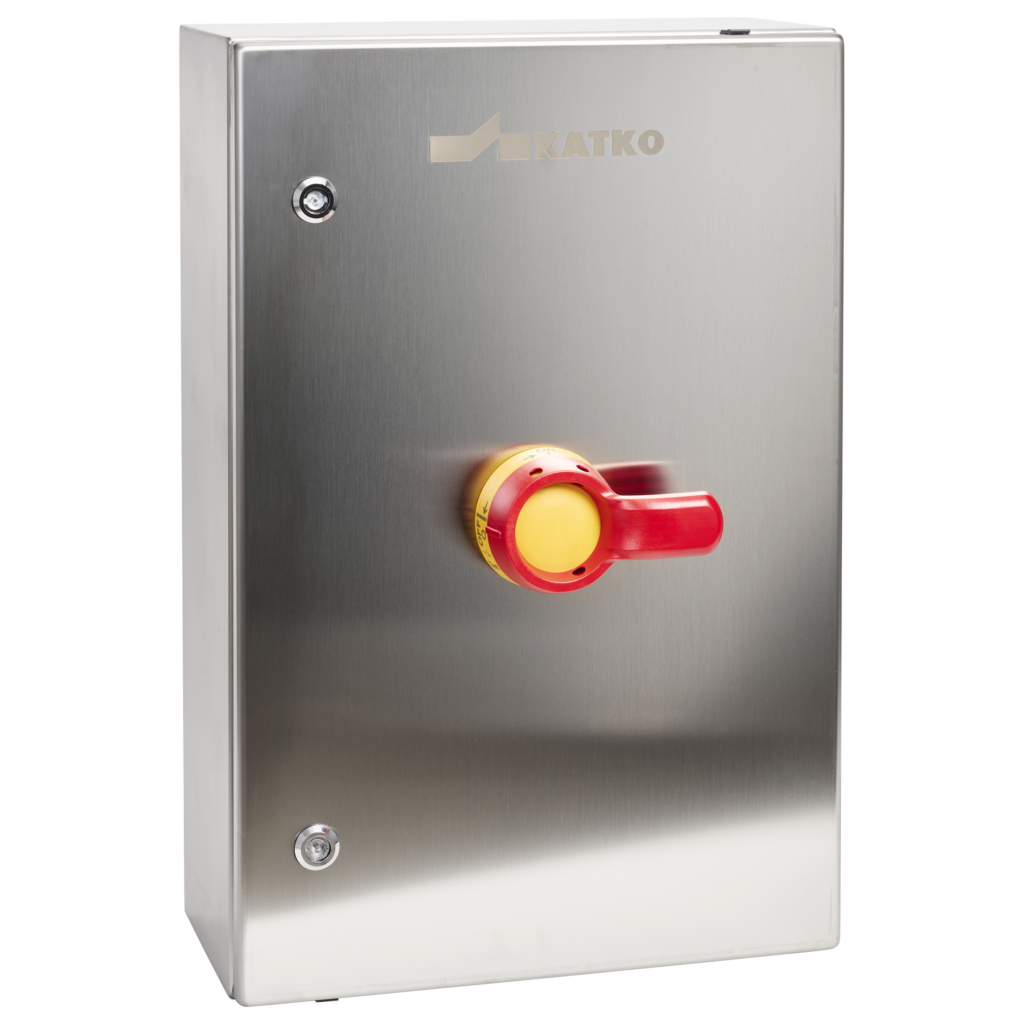

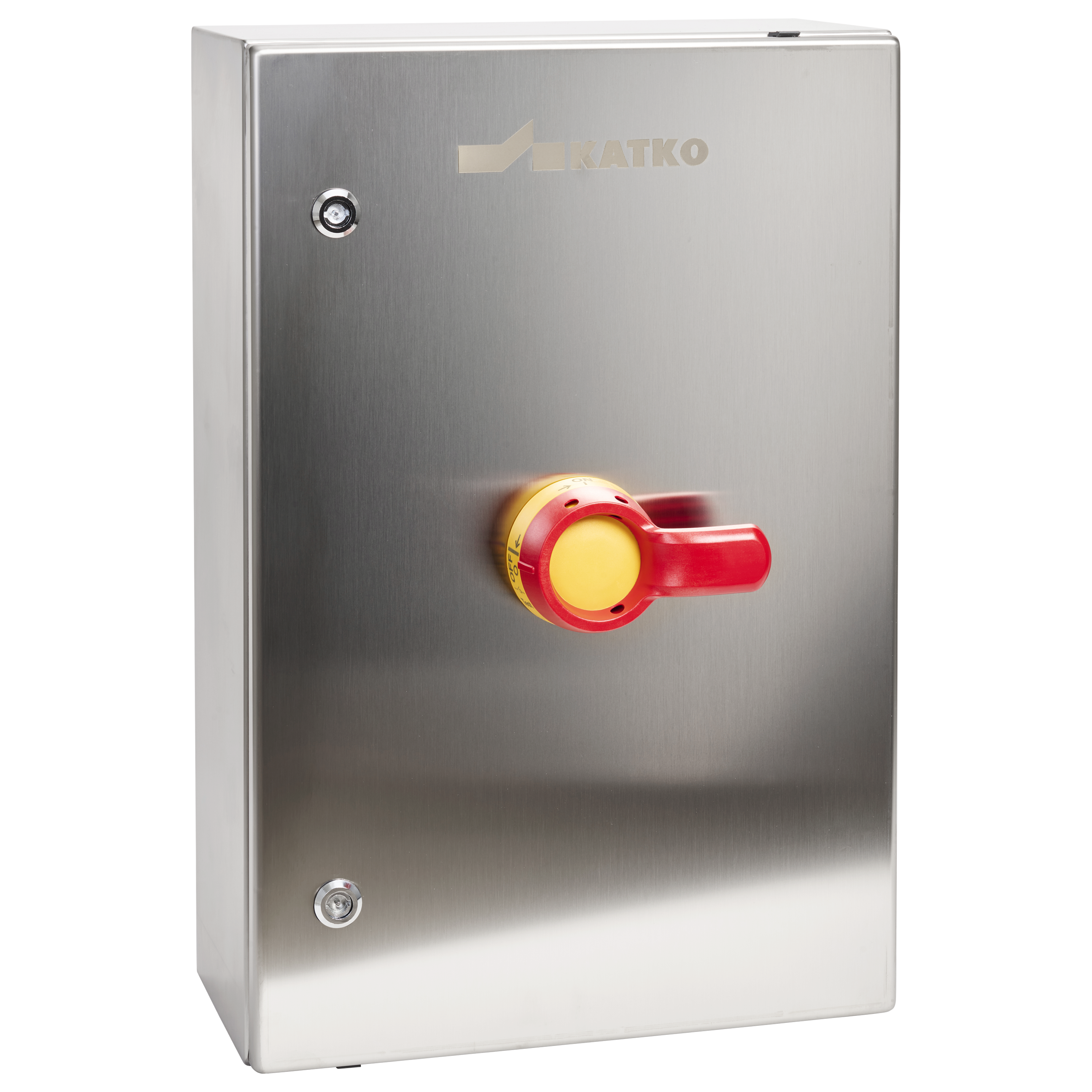

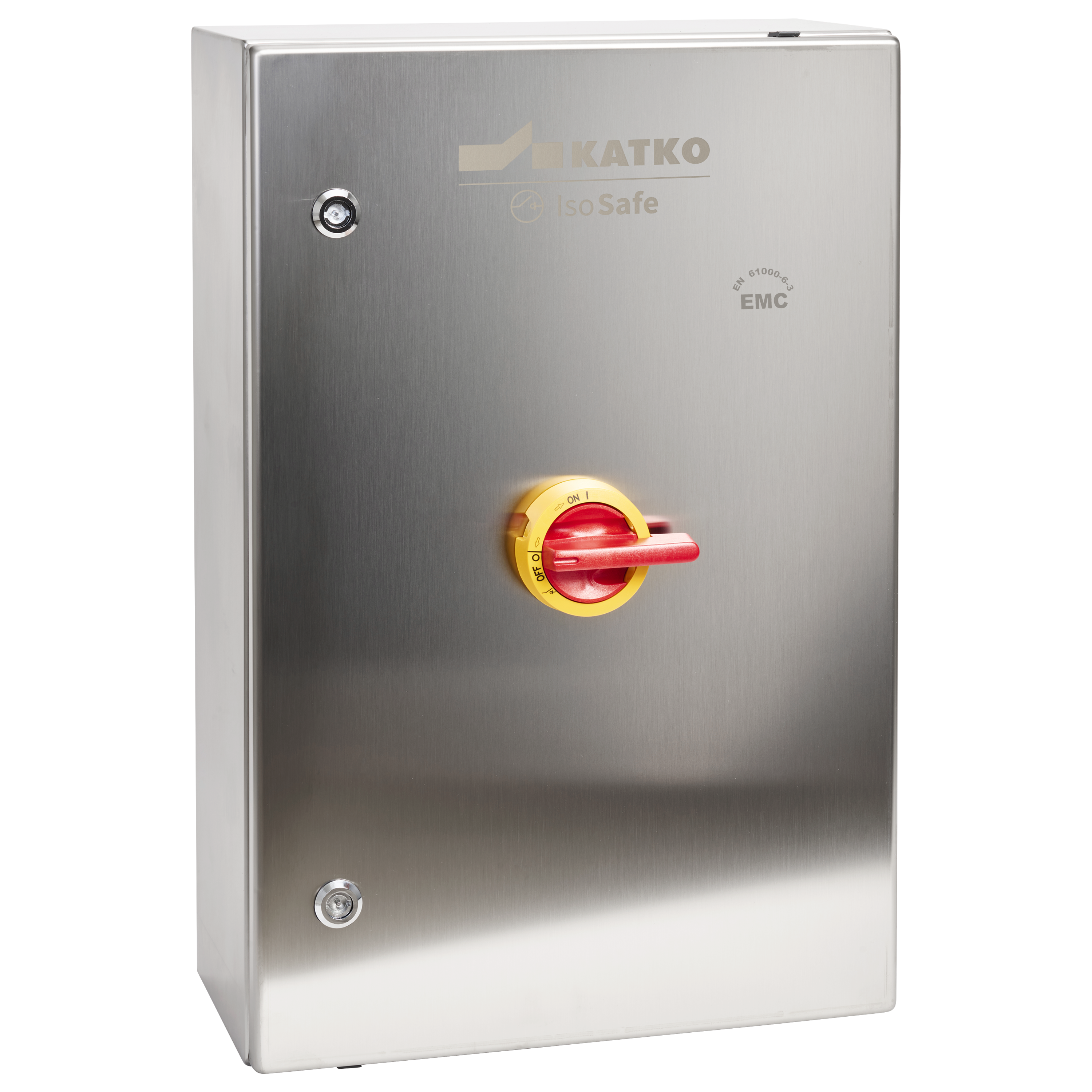

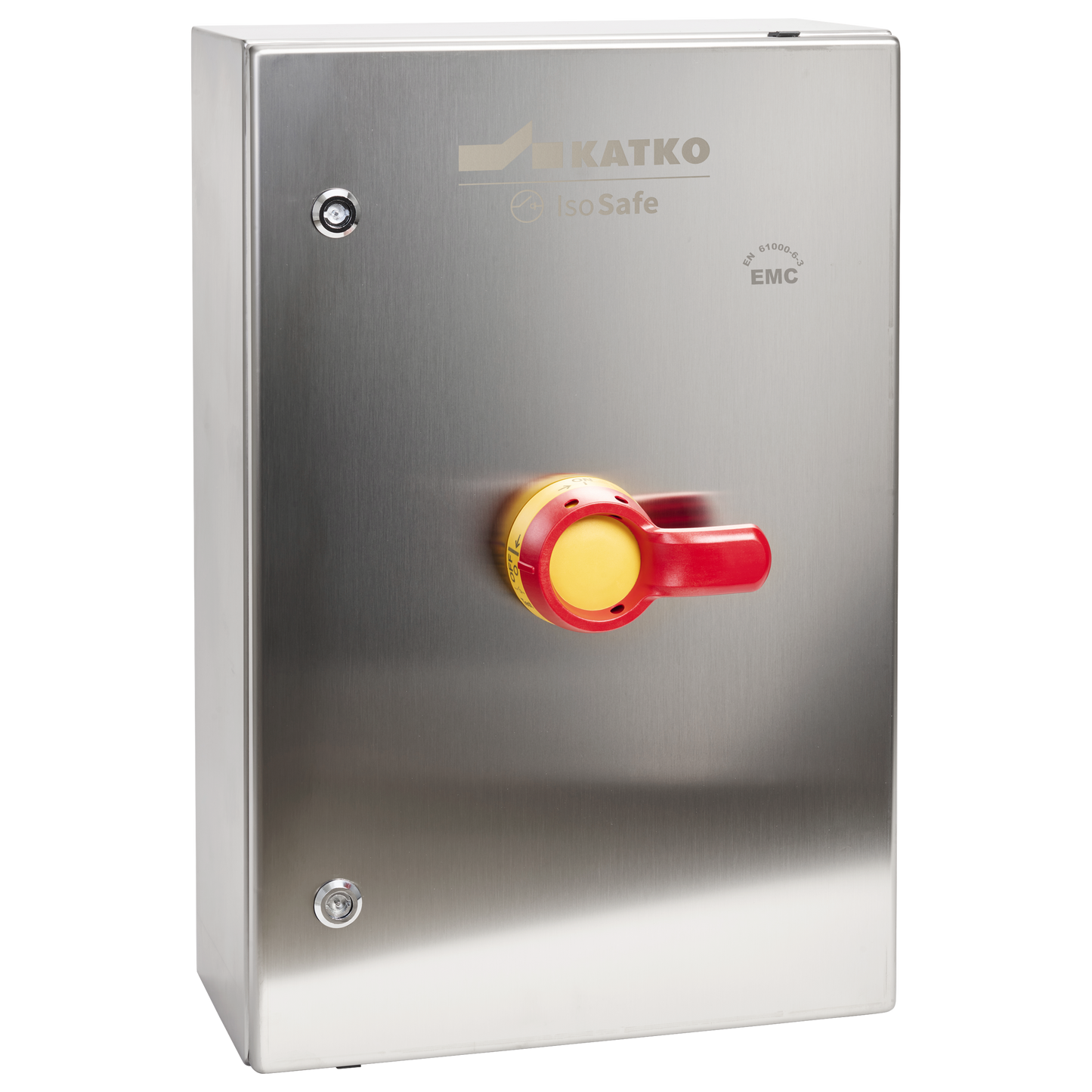

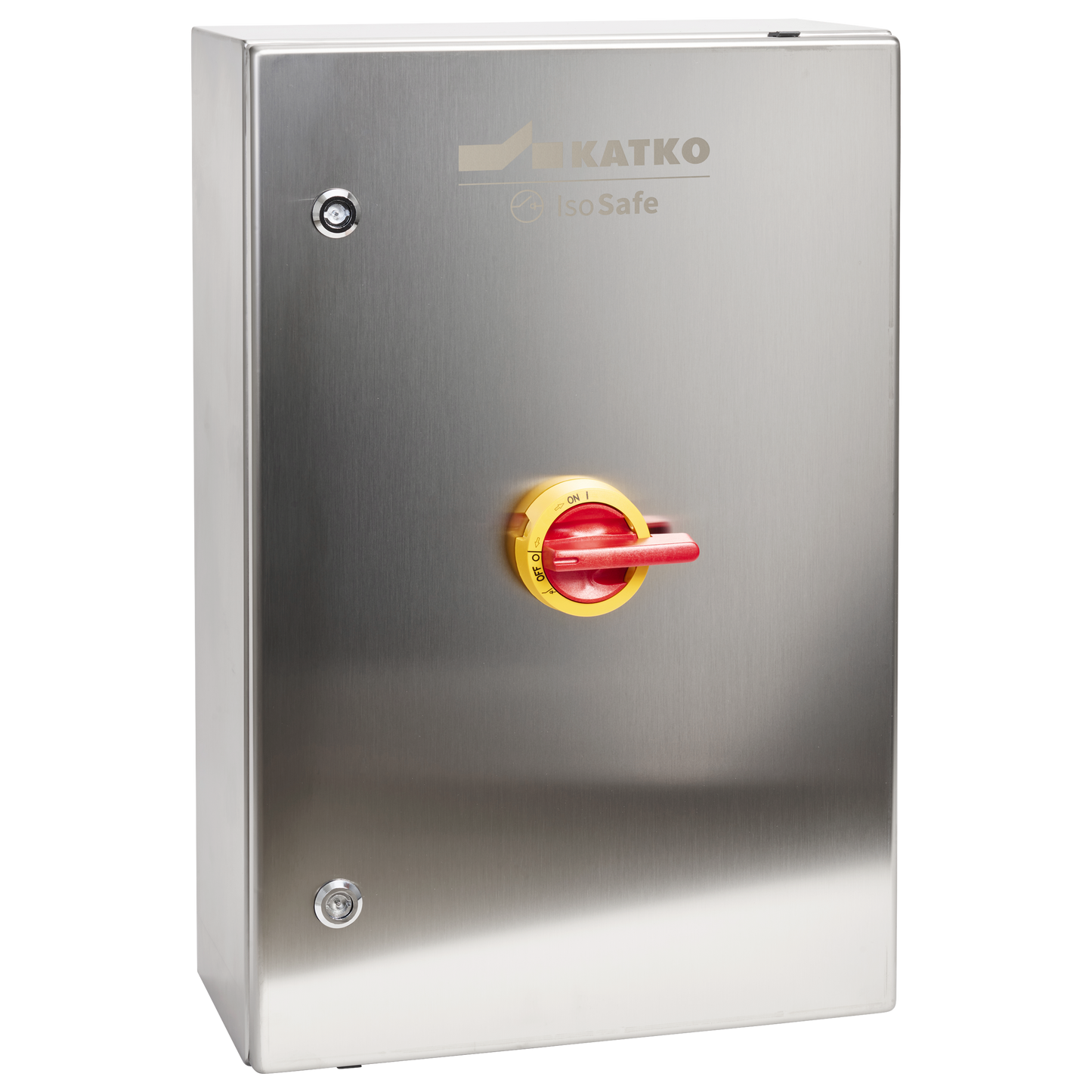

KER 3200 YR R6EMC 2XM50MEMC
EMC Switches 10-630A
- Electromagnetic compatibility ensures safe operation in environments with electromagnetic disturbance
- Tested according to EMC EN 61000-6-3:2007+A1(2011) with EMC- glands shielded power cable
- IP66
- Available in polycarbonate up to 125 A, aluminium up to 160 A and sheet steel up to 630 A
- Padlockable
- EMC cable glands included
- Door interlock with defeat mechanism
- Tested according to IEC 60947-3
- Also available with 4, 6 or 8-poles
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KER 3200 YR R6EMC 2XM50MEMC |
|---|---|
| AC-21 400/415 V (A) | 200 A |
| AC-21 690 V (A) | 200 A |
| AC-22 400/415 V (A) | 200 A |
| AC-22 690 V (A) | 200 A |
| AC-23 400/415 V (A/kW) | 200 A / 110 kW |
| AC-23 690 V (A/kW) | 200 A / 160 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | M10 |
| Cable Gland | 2xM50 |
| EAN | 6419410342404 |
| Enclosure | R6 |
| Enclosure Type | AISI 316L |
| IP Rating | 66 |
| Number of Poles | 3 |
| Operation | Front-operated |
