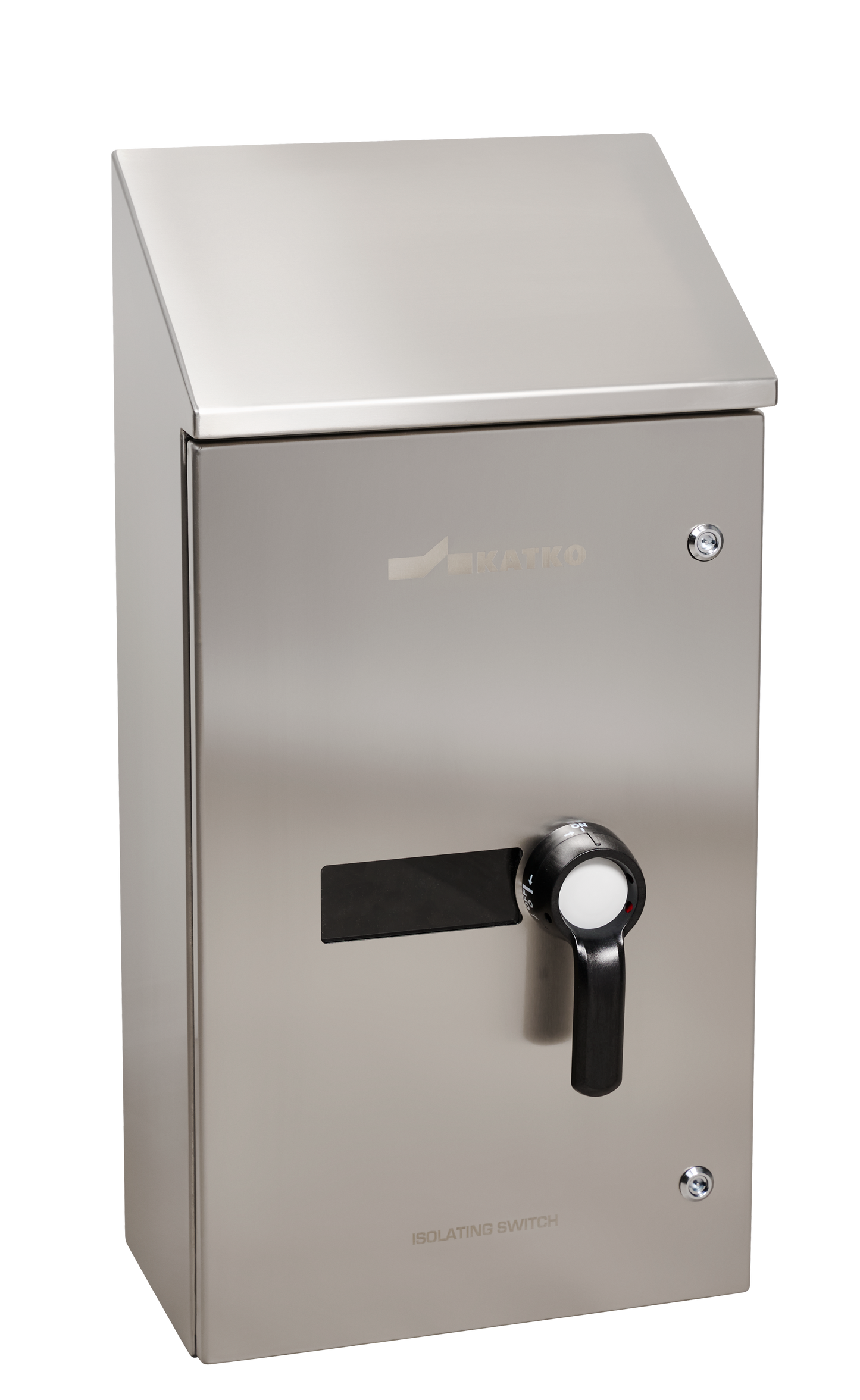

KER 3400 RA7AVS
KER Stainless steel visual isolating 200-800 A
- IP66; AISI 316L Enclosure types RA6AVS, RA7AVS, RA7BVS, RA10VS
- Where hygiene and good protection against corrosion are required
- Visual isolating: visual status indication window in enclosure
- Padlockable with three locks
- Door interlock with defeat mechanism
- Tested according to IEC 60947-3
- 6 and 8-pole versions available
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KER 3400 RA7AVS |
|---|---|
| AC-21 400/415 V (A) | 400 A |
| AC-21 690 V (A) | 400 A |
| AC-22 400/415 V (A) | 400 A |
| AC-22 690 V (A) | 400 A |
| AC-23 400/415 V (A/kW) | 400 A / 200 kW |
| AC-23 690 V (A/kW) | 400 A / 355 kW |
| Color | Standard |
| EAN | 6419410230831 |
| Enclosure | RA7AVS |
| Enclosure Type | Stainless Steel with visual indication |
| Number of Poles | 3 |
| Operation | Front-operated |
| Switch type | Load Break Switch |

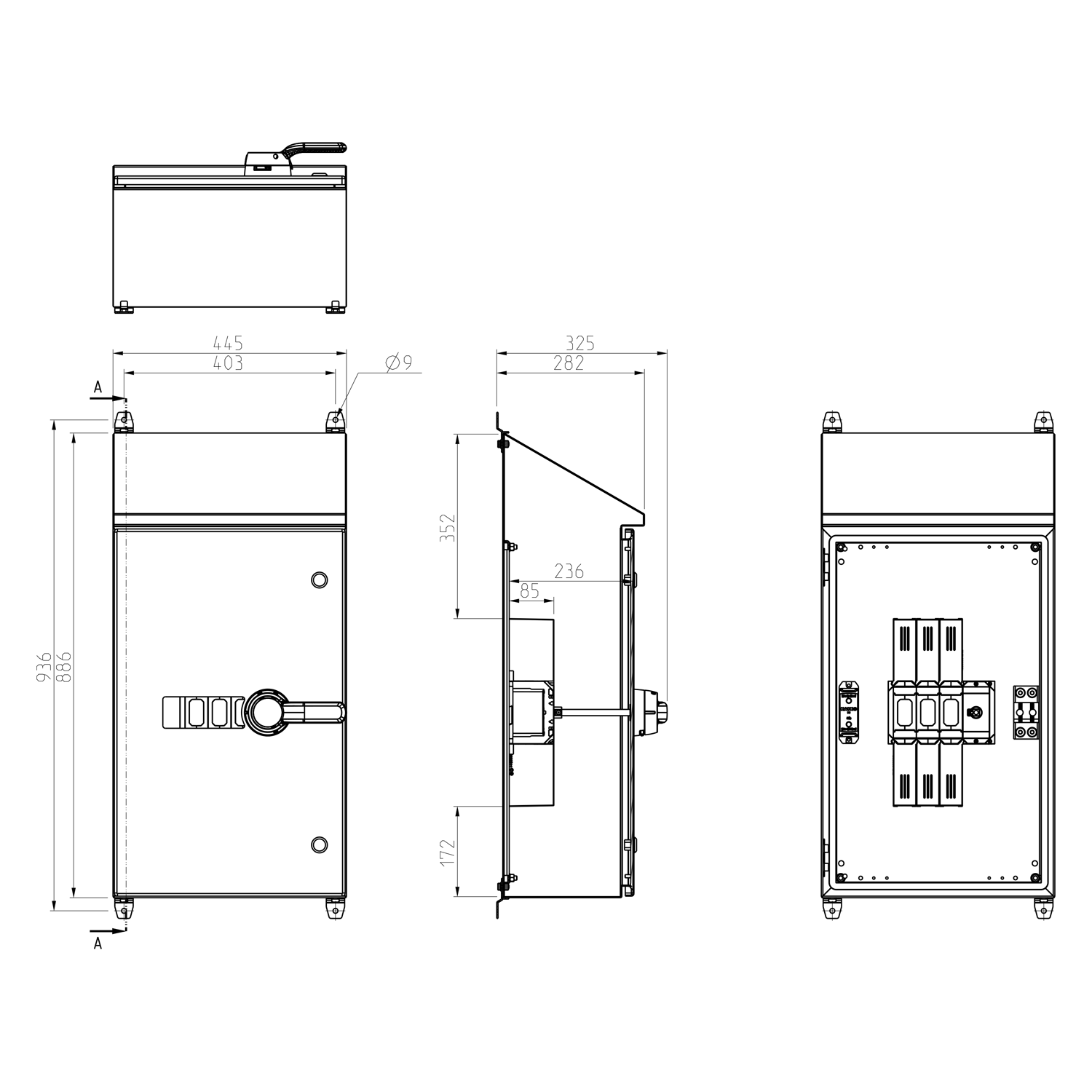

Dimensional drawing
