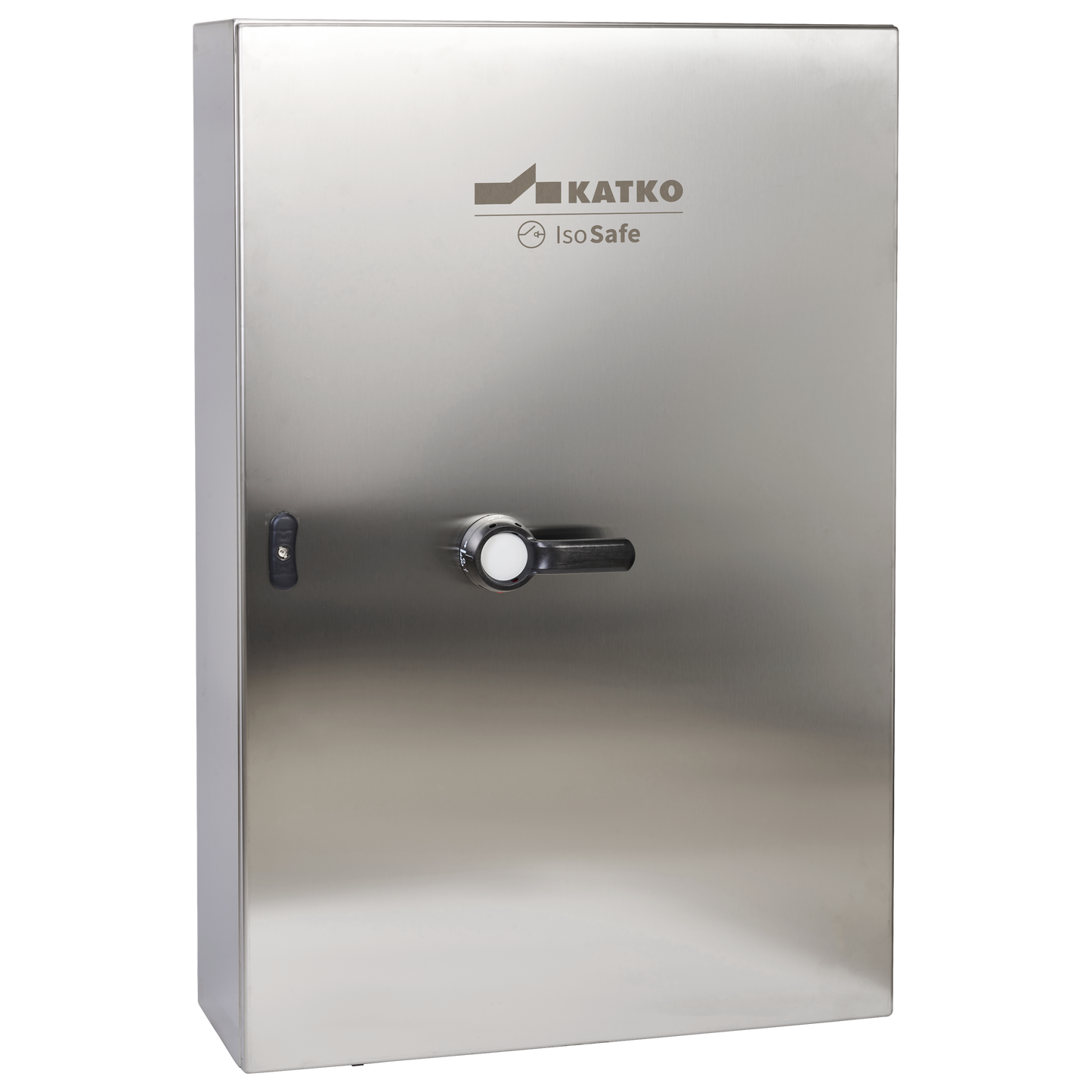

KER 41250 R10
KER Stainless Steel 16-1600A
- IP66; AISI 316L Enclosure types RA2, RA4, RA5
- IP66; AISI304 Enclosure types R6, R7, R8, R9, R10 (AISI 304 as standard, AISI 316L upon request)
- Where hygiene and good protection against corrosion are required
- Padlockable with three locks
- Door interlock with defeat mechanism
- Tested according to IEC 60947-3
- Also available as EMC, and EMC/EX -protected
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KER 41250 R10 |
|---|---|
| AC-21 400/415 V (A) | 1250 A |
| AC-21 690 V (A) | 1250 A |
| AC-22 400/415 V (A) | 1250 A |
| AC-22 690 V (A) | 1250 A |
| AC-23 400/415 V (A/kW) | 1250 A / 710 kW |
| AC-23 690 V (A/kW) | 1250 A / 1000 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 6-70 |
| Color | Standard |
| EAN | 6419410363881 |
| Enclosure | R10 |
| Enclosure Type | Stainless Steel: Polycarbonate Handle |
| IP Rating | 65 |
| Number of Poles | 4 |
| Operation | Front-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 92 |
Dimensional drawing
