KER 825 YRIP69K RA4

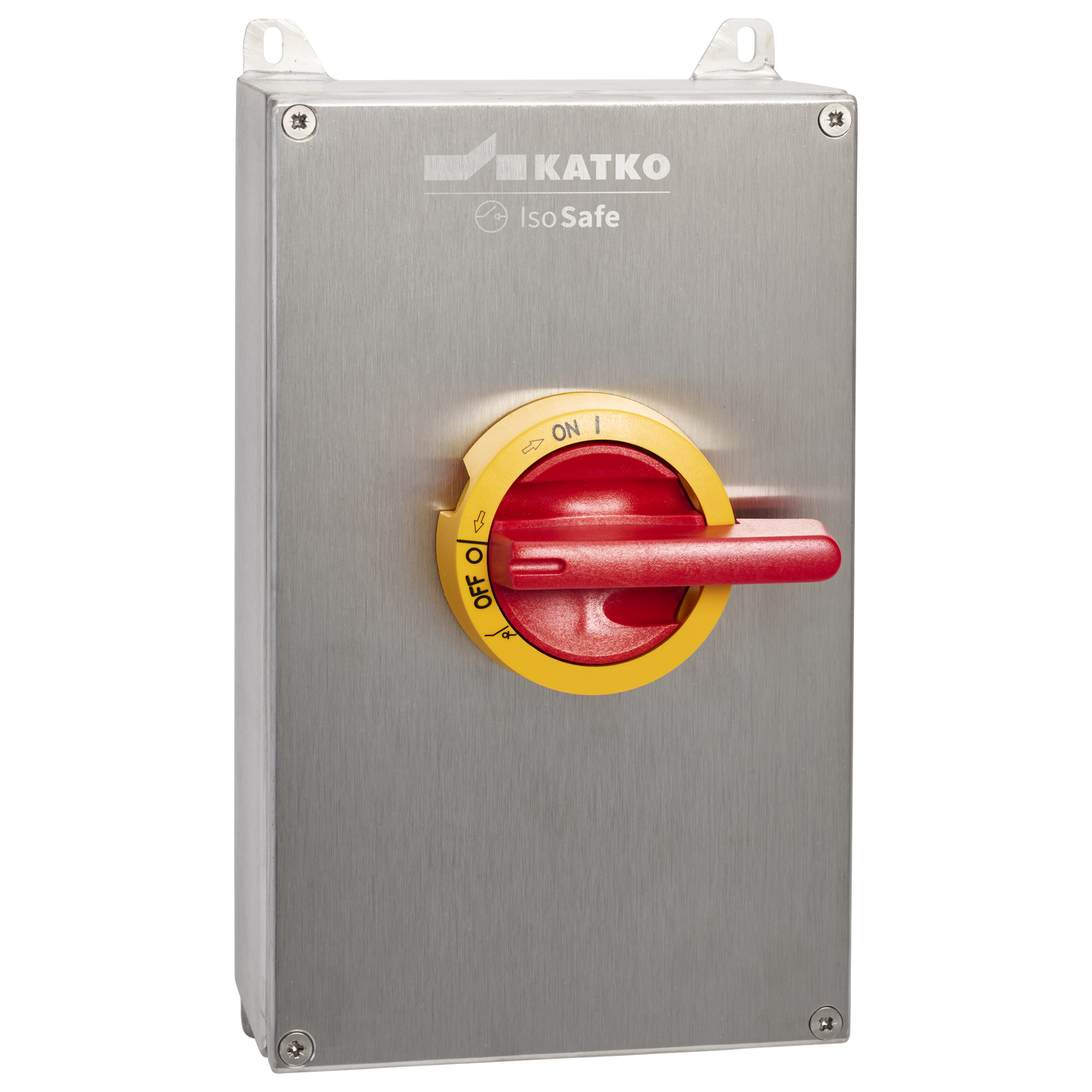

KER IP69K Stainless steel 16-125A
- IP69K rating
- AISI 316L, acid proof
- LK11 handle (Black or yellow/red)
- Where hygiene and good protection against corrosion are required
- Padlockable
- Door interlock with defeat mechanism
- S-model with sloped roof
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KER 825 YRIP69K RA4 |
|---|---|
| AC-22 400/415 V (A) | 25 A |
| AC-22 690 V (A) | 25 A |
| AC-23 400/415 V (A/kW) | 25 A / 11 kW |
| AC-23 690 V (A/kW) | 25 A / 22 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 2.5-35 |
| Color | Yellow / Red |
| EAN | 6419410326350 |
| Enclosure | RA4 |
| Enclosure Type | Stainless Steel: Polycarbonate Handle |
| IP Rating | 69K |
| Number of Poles | 8 |
| Operation | Front-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 2.4 |
Dimensional drawing
