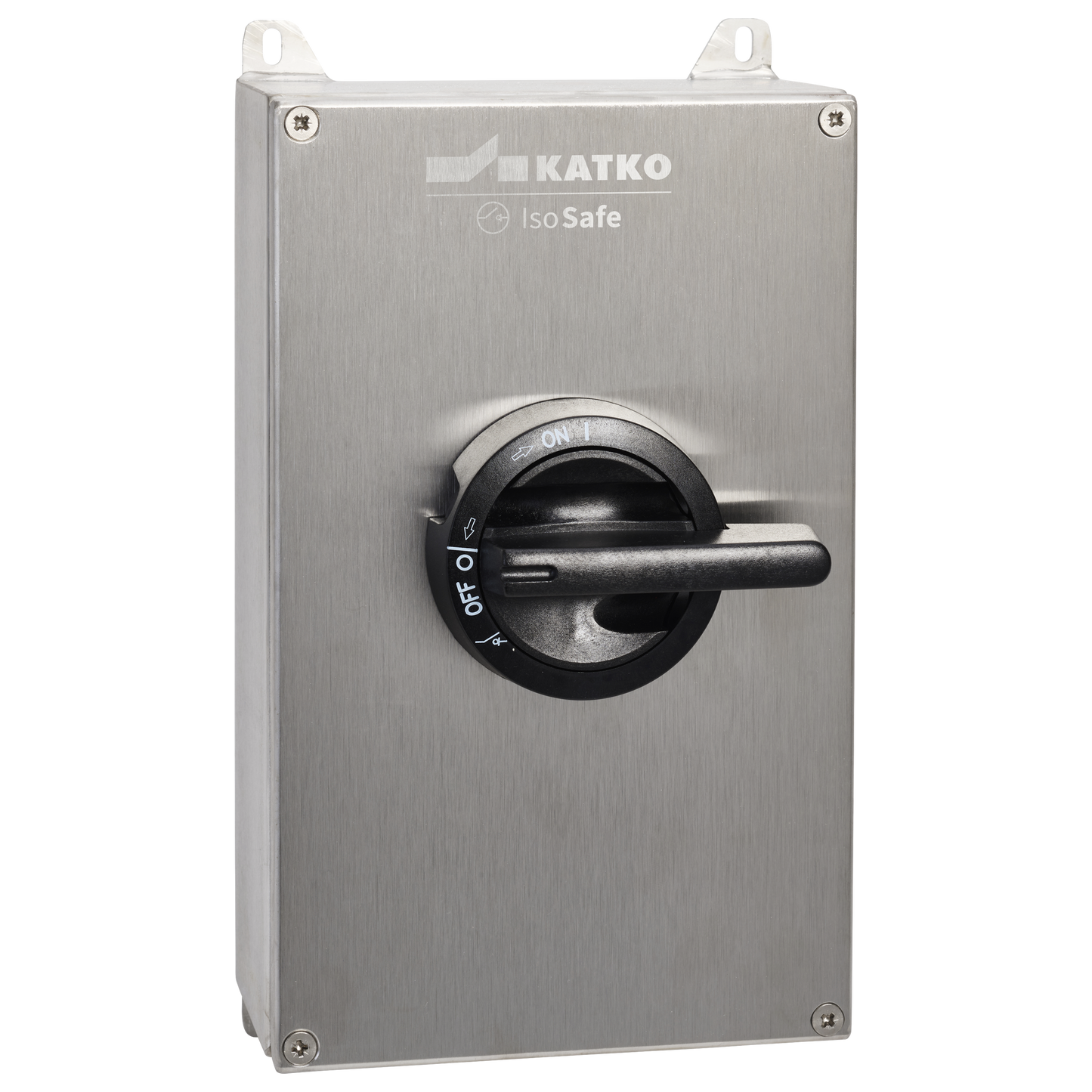

KER 863 IP69K RA4

KER IP69K Stainless steel 16-125A

  • IP69K rating
  • AISI 316L, acid proof
  • LK11 handle (Black or yellow/red)
  • Where hygiene and good protection against corrosion are required
  • Padlockable
  • Door interlock with defeat mechanism
  • S-model with sloped roof
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>

Accessories

Product details

SKU KER 863 IP69K RA4
AC-22 400/415 V (A) 63 A
AC-22 690 V (A) 63 A
AC-23 400/415 V (A/kW) 40 A / 22 kW
AC-23 690 V (A/kW) 40 A / 37 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size 2.5-35
Color Standard
EAN 6419410326138
Enclosure RA4
Enclosure Type Stainless Steel: Polycarbonate Handle
IP Rating 69K
Number of Poles 8
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 2.4

Dimensional drawing

Product diagram
