KET 360UL T4EMC 2XM32MEMC KST16M

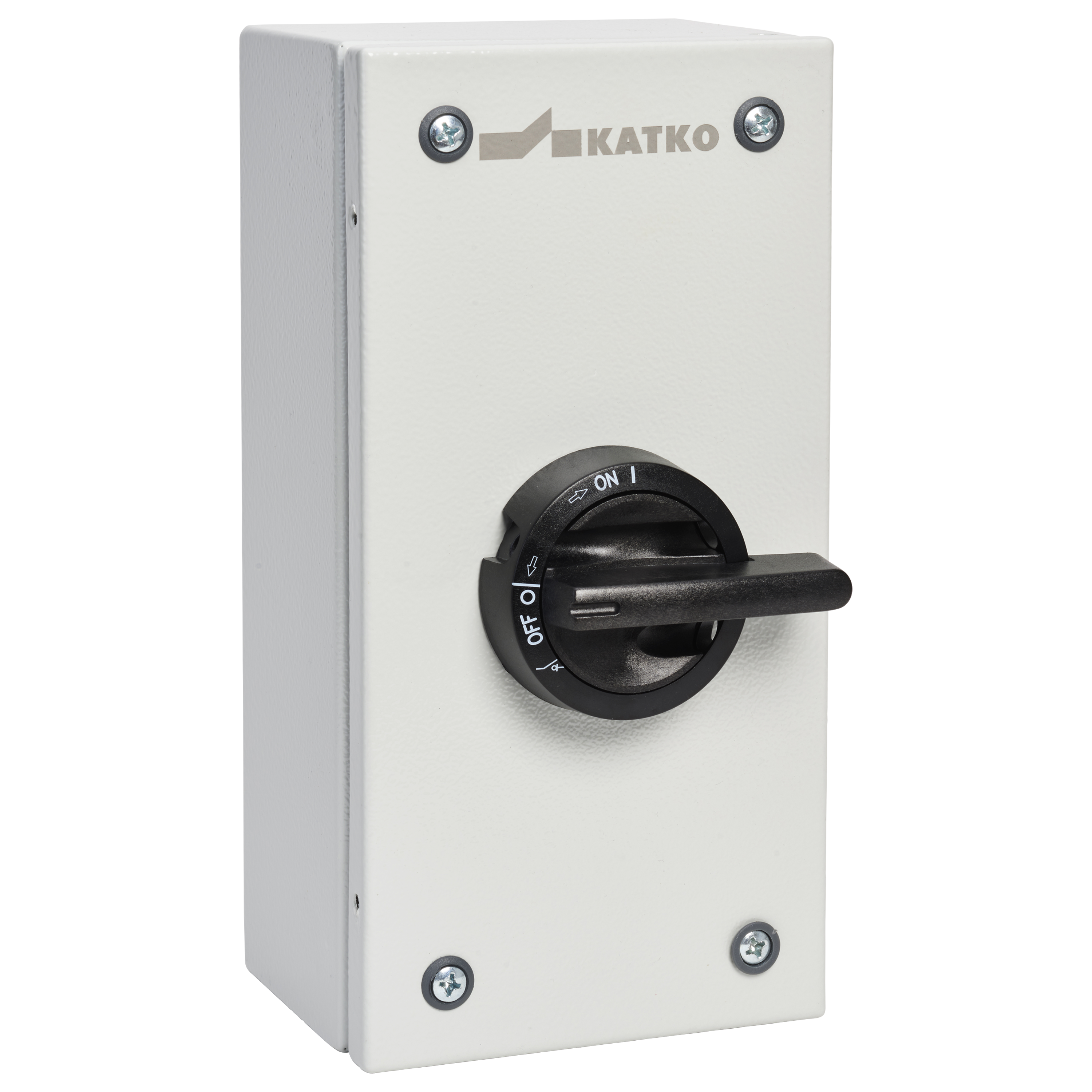

UL Listed EMC-Protected enclosed manual motor controllers 16-125A
- Electromagnetic compatibility ensures safe operation in environments with electromagnetic disturbance
- Tested according to EN 55011 with EMC glands shielded power cable
- Nema Type 4X: M2, M3, MF10, MF11, RA2, RA4 enclosures
- Nema Type 4: A2, A4, T3 enclosures
- Up to 150A/75HP/600V, refer to detailed product specifications
- Easy to install auxiliary contacts
- Padlockable
- Also available as 4-, 6- and 8-pole versions
- EMC cable glands included
- KEM = Polycarbonate
- KEA = Aluminium
- KET = Sheet steel
- KER = Stainless steel
- Cable glands:
- KEM: 16-40A = 2xM25, 60-80A = 2xM32
- KEA: 16-40A = 2xM25, 60-125A = 2xM40
- KET: 16-40A = 2xM25, 60-80A = 2xM32, 100-150A = 2xM40
- KER: 16-40A = 2xM25, 60-80A = 2xM32, 100-125A = 2xM40
Product details
| SKU | KET 360UL T4EMC 2XM32MEMC KST16M |
|---|---|
| Ampere Rating (600V) | 60 A |
| Color | Standard |
| EAN | 6419410308295 |
| Enclosure | T4 |
| HP 208V | 10HP |
| HP 415V | 10HP |
| HP 480V | 25HP |
| HP 600V | 25HP |
| NEMA Rating | 4 |
| Number of Poles | 3 |
| Weight (lb/kg) | 8.82 / 4 |
| Wire Size (Cu Only) | 12-4AWG |
Dimensional drawing
