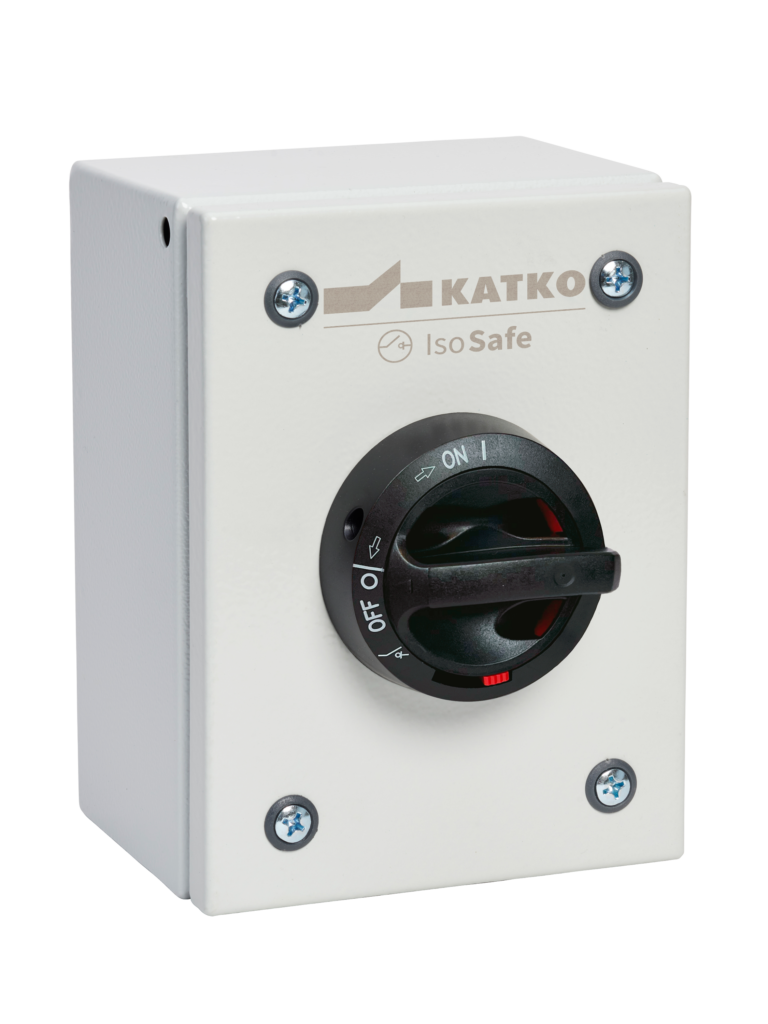

KET 416 T3
KET Sheet Steel 16-1600A
- IP66
- Good corrosion resistance
- Wide operating temperature range
- Padlockable
- Door interlock with defeat mechanism
- Excellent insulating properties
- Good UV resistance
- Good resistance against many chemicals
- Tested according to IEC 60947-3
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Archived Isolators 10-40A
Product details
| SKU | KET 416 T3 |
|---|---|
| AC-21 400/415 V (A) | 25 A |
| AC-21 690 V (A) | 25 A |
| AC-22 400/415 V (A) | 16 A |
| AC-22 690 V (A) | 16 A |
| AC-23 400/415 V (A/kW) | 16 A / 7.5 kW |
| AC-23 690 V (A/kW) | 16 A / 11 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 1.5-16 |
| Color | Standard |
| EAN | 6419410339817 |
| Enclosure | T3 |
| Enclosure Type | Sheet Steel |
| IP Rating | 65 |
| Number of Poles | 4 |
| Operation | Front-operated |
| Switch type | Load Break Switch |
| Weight (kg) | 2.2 |
Dimensional drawing
