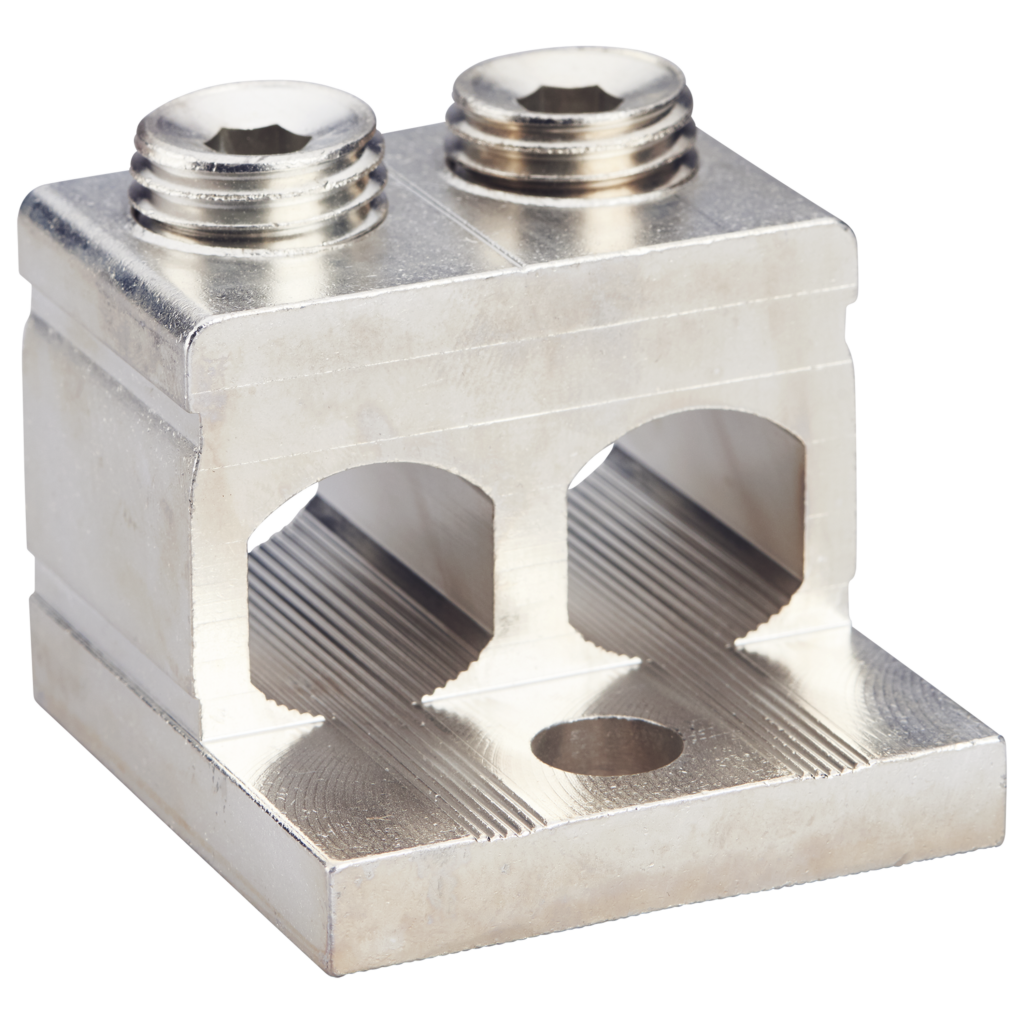

KKL2X240
Cable Connectors
- Sales unit = 1 pc
- Suitable for Al/Cu cables
- Material: tin-coated aluminium
- IEC 61238-1 Class A
- Environmentally friendly materials
Conductors per cross section (mm2) table >>
Product details
| SKU | KKL2X240 |
|---|---|
| Al mm² | 35-240 |
| Color | Standard |
| Cu mm² | 35-240 |
| E-Number | 1942094 |
| EAN | 6419410378649 |
| In (Al) (A) | 630 |
| In (Cu) (A) | 850 |
| Key size | Hex 8 |
| Mounting | Bolt M12 |
| Number of Conductors | 2 |
| Package size | 16 |
| Torque Al/Cu (Nm) | 25 (35-120 mm²) / 55 (150-240 mm²) |
| Un (V) | 690 |
| Weight (lb/kg) | 0.540 / 0.245 |
Dimensional drawing
