KKV 332CC

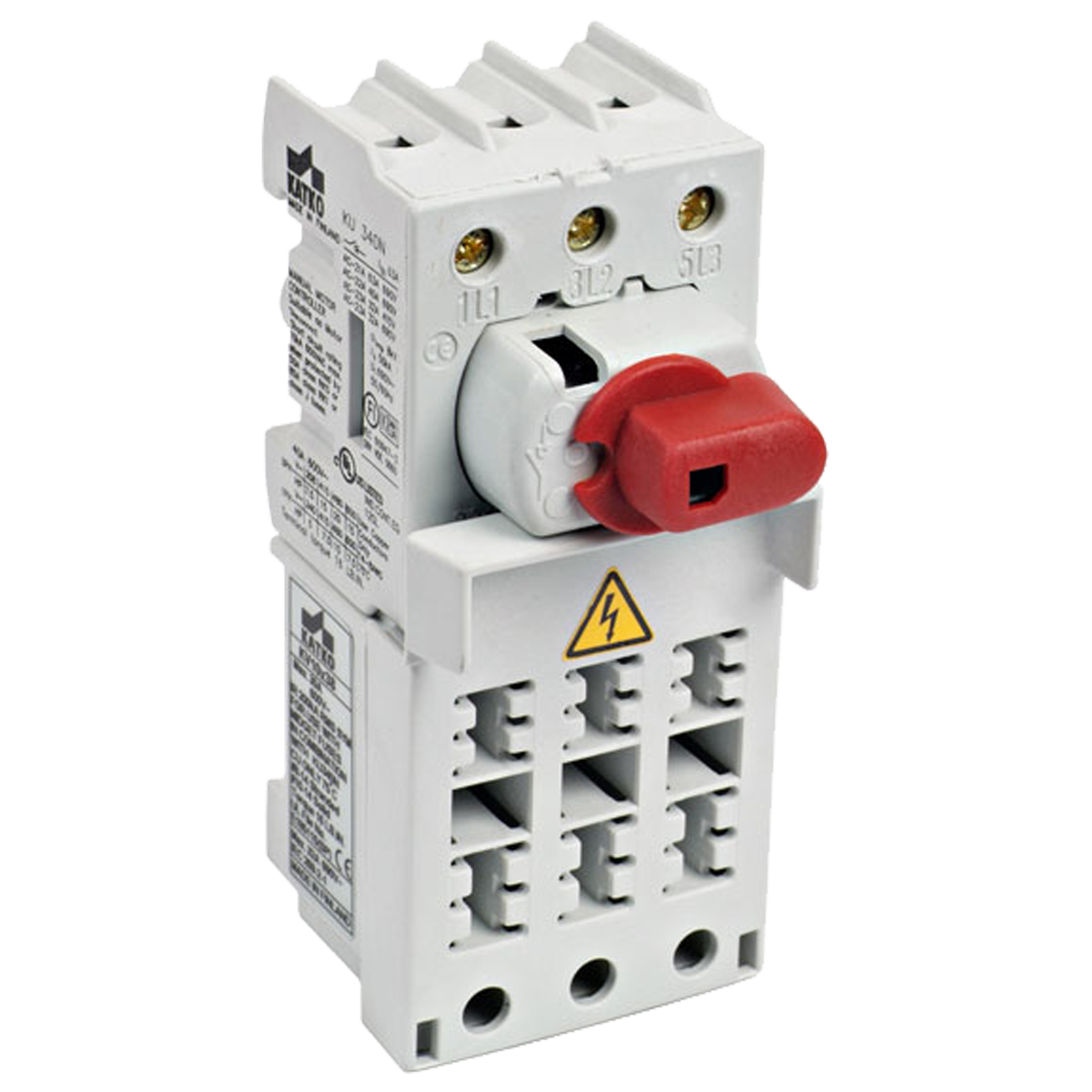

UL Listed KKV Switch fuses 32A
- UL 60947-4-1A
- CCA, CB certificates
- ISO 9001
- Available as 3-pole and 4-pole
- Consist of a KU switch and a fuse holder
- KKV 332 for 10 x 38 fuse, refer to detailed product specifications
- KKV 332 CC for class CC fuse, refer to detailed product specifications
- Compatible with handles LK10UL and LK11UL
- Shafts L=100/200/300 AD11 and L=100/200/300 AD11/VT
Product details
| SKU | KKV 332CC |
|---|---|
| Ampere Rating (600V) | 32 A |
| EAN | 6419410212813 |
| HP 208V | 7.5HP |
| HP 415V | 7.5HP |
| HP 480V | 20HP |
| HP 600V | 15HP |
| Number of Poles | 3 |
| Operation | Rotary |
| Weight (lb/kg) | 0.705 / 0.32 |
| Wire Size (Cu Only) | 14-8 AWG |
Dimensional drawing
