KKVR 332CCUL YR RA4

  • UL 60947-4-1A
  • CCA, CB certificates
  • ISO 9001

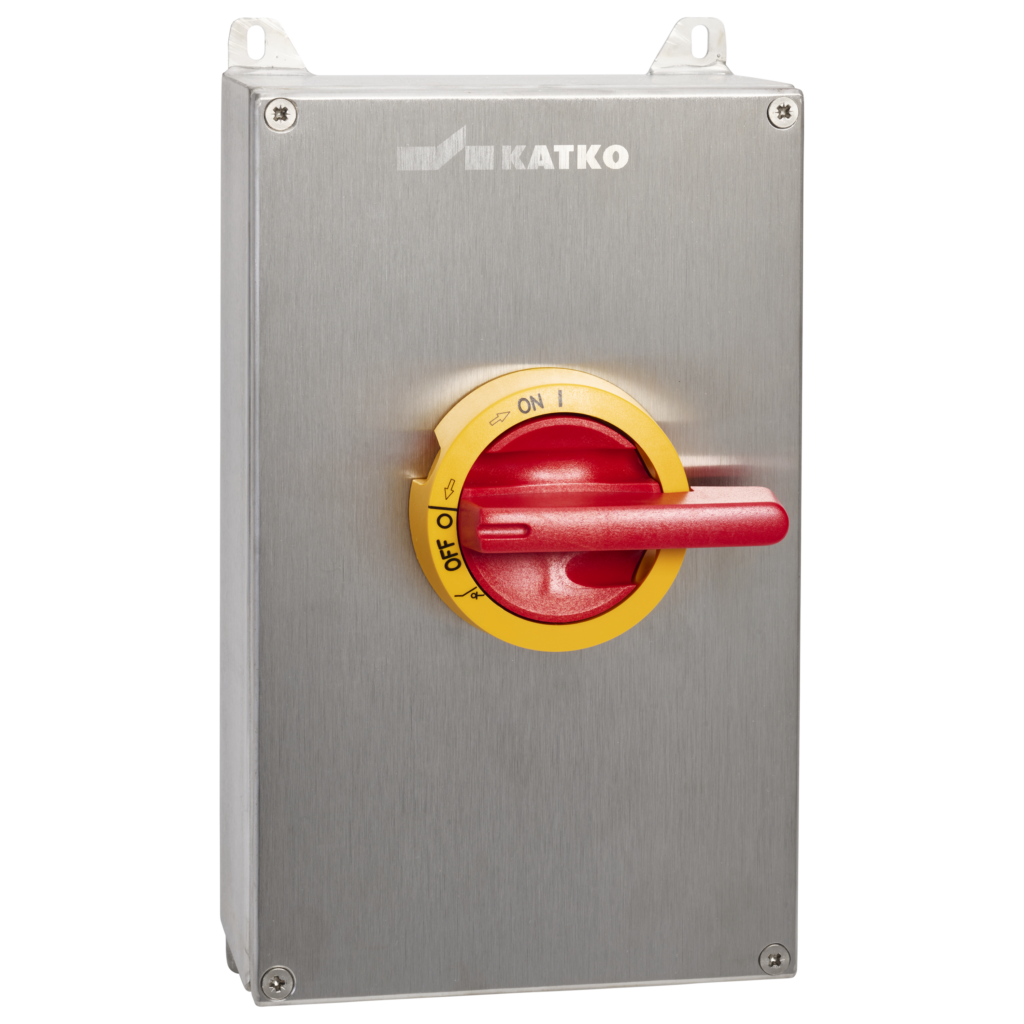

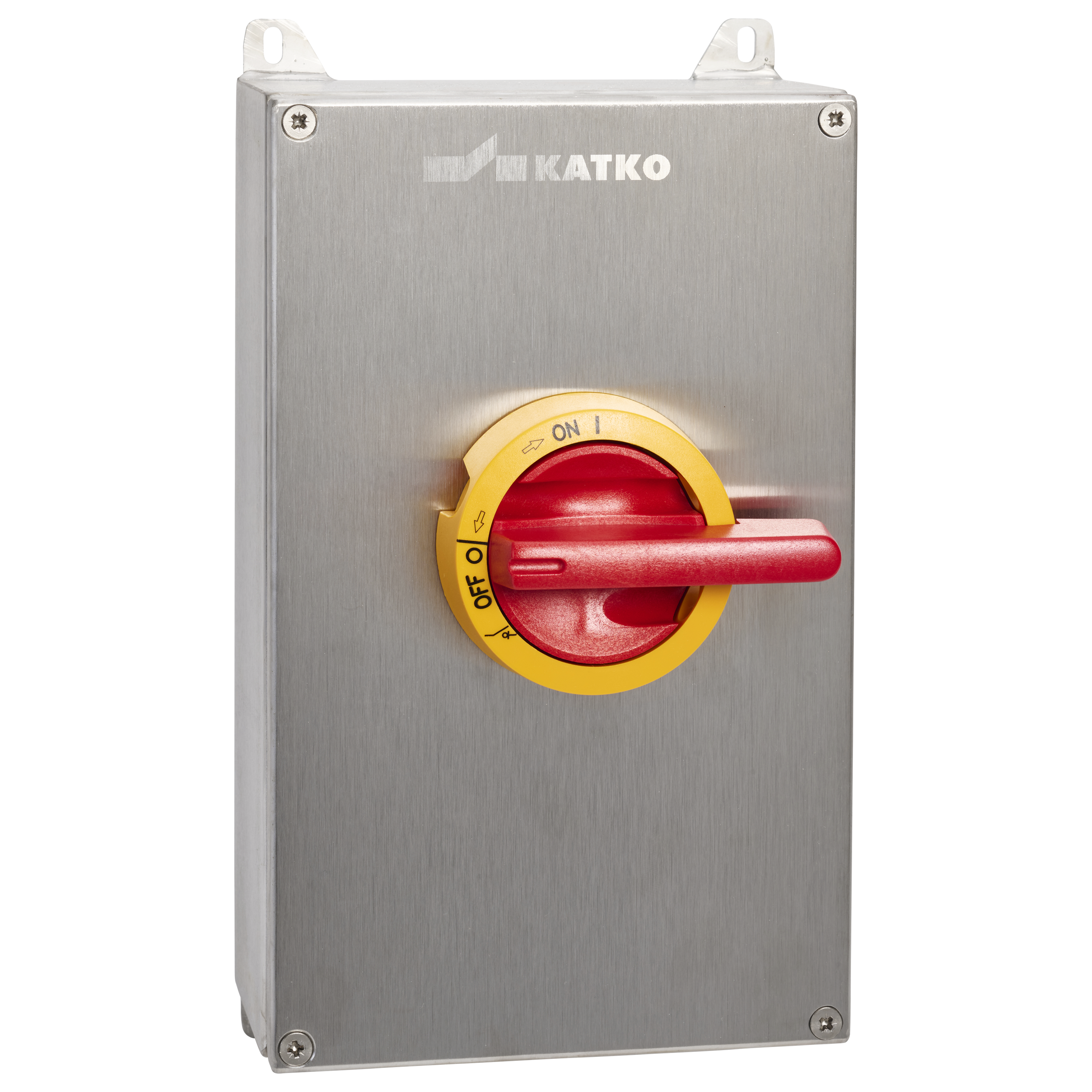

  • Stainless steel enclosure with yellow/red polycarbonate handle
  • Consists of a KU switch and a fuse holder
  • Class CC fuse

Product details

SKU KKVR 332CCUL YR RA4
Ampere Rating (600V) 32 A
EAN 6419410377710
Enclosure RA4
HP 208V 7.5HP
HP 415V 7.5HP
HP 480V 20HP
HP 600V 15HP
Number of Poles 3
Operation Front-operated
Wire Size (Cu Only) 14-8 AWG

Dimensional drawing

Product diagram
