Data subject to change without notice. Always confirm the data is correct from the seller.

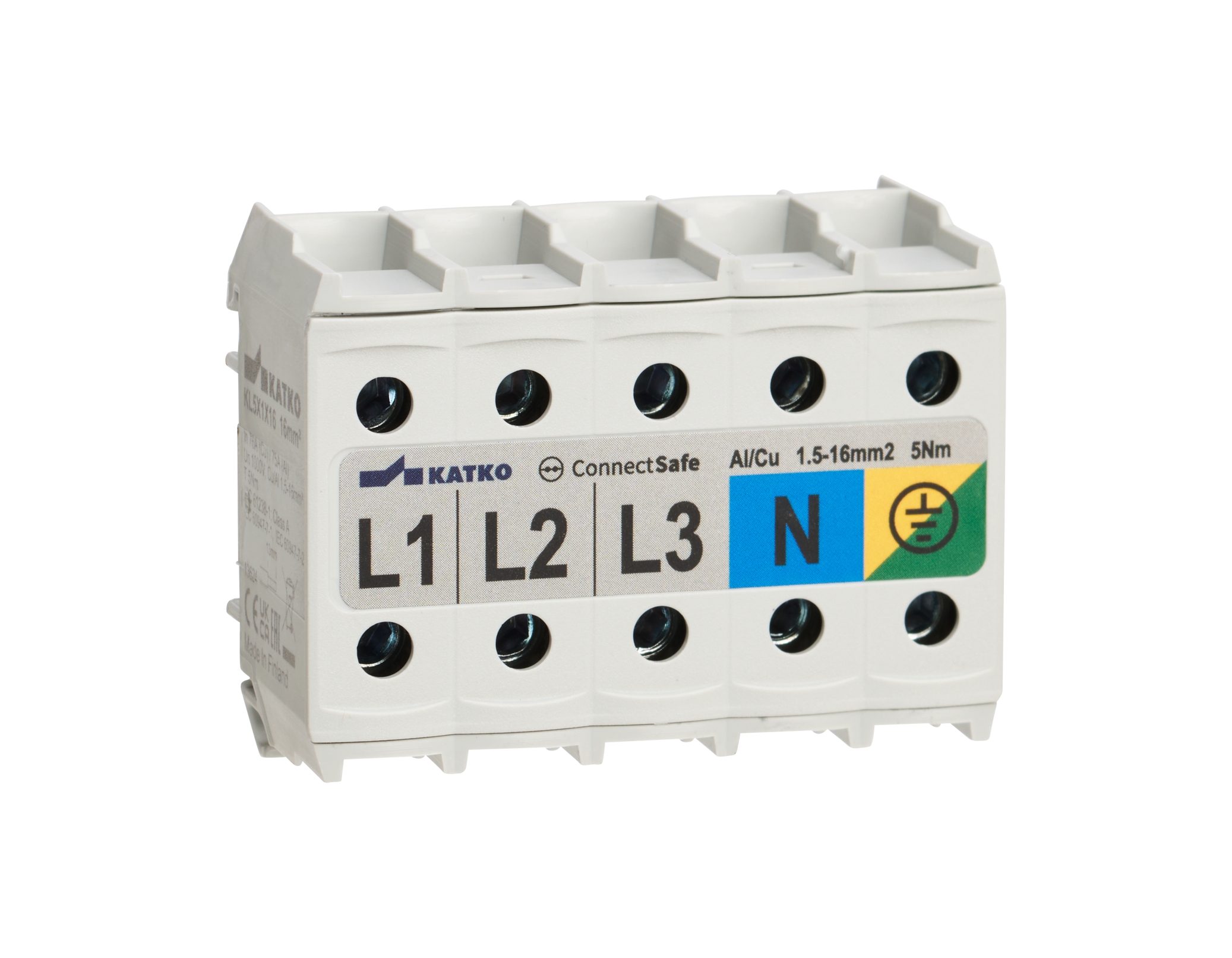

KL5X1X16

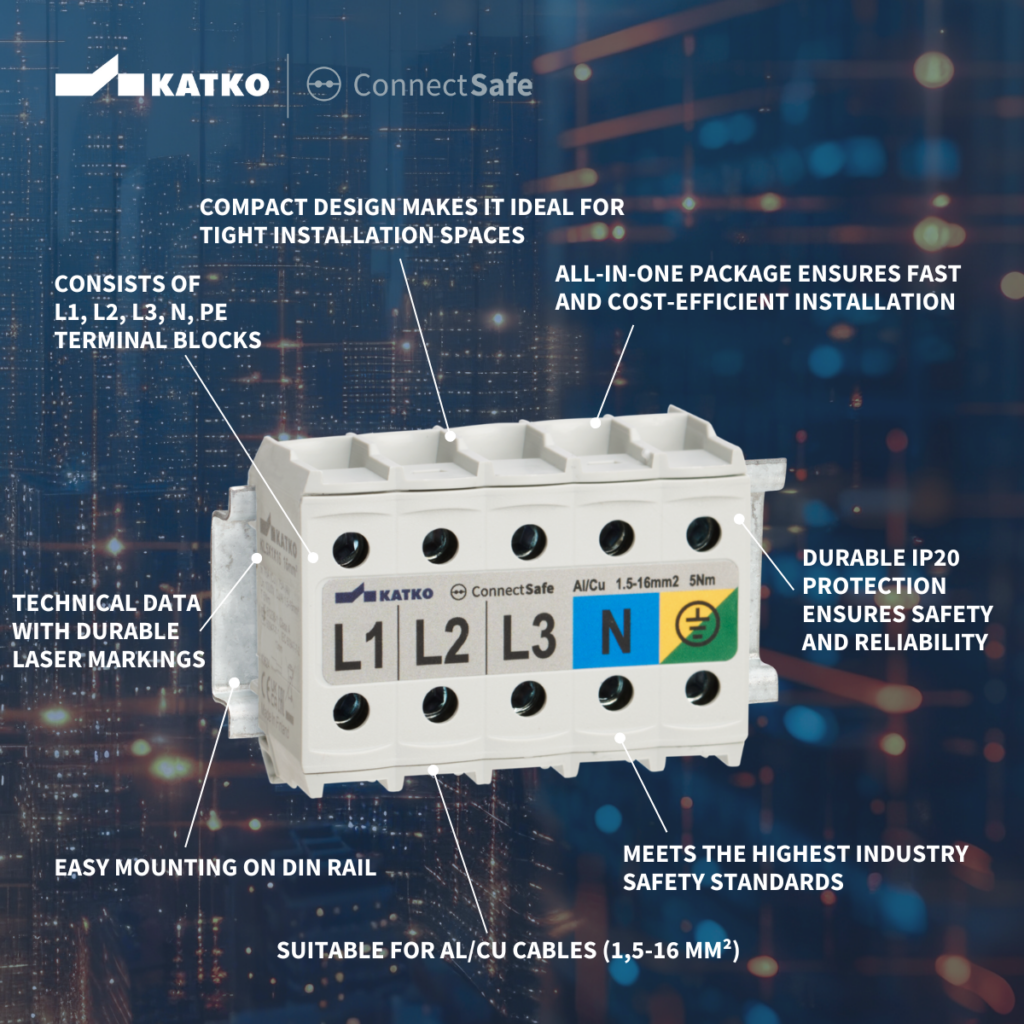

- Suitable for Al/Cu cables (1,5-16 mm²)
- 1000 VAC
- Consists of L1, L2, L3, N, PE terminals
- 5-pole terminal block saves space and time during installation
- A perfect solution for tight installation spaces
- Quick and easy installation on DIN rail
- IP20 touch protection ensures safety and reliability
- Housing and cover in polyamide
- Terminal material KL tin-coated, greased aluminium
- Environmentally friendly materials
- Meets the highest industry safety standards
Certificates:
- Certified according to IEC 61238-1 Class A
- Certified according to IEC 60947-7-1 and IEC 60947-7-2
Product details
| SKU | KL5X1X16 |
|---|---|
| Al mm² | 1,5 - 16 |
| Color | 3L, N and PE |
| Cu mm² | 1,5 - 16 |
| EAN | 6419410334287 |
| In (Al) (A) | 75 |
| In (Cu) (A) | 76 |
| Key size | Hex 4 |
| Mounting | DIN |
| Number of Conductors | 10 |
| Package size | 10 |
| Torque Al/Cu (Nm) | 5 |
| Un (V) | 1000 |
| Weight (lb/kg) | 0.220 / 0.100 |

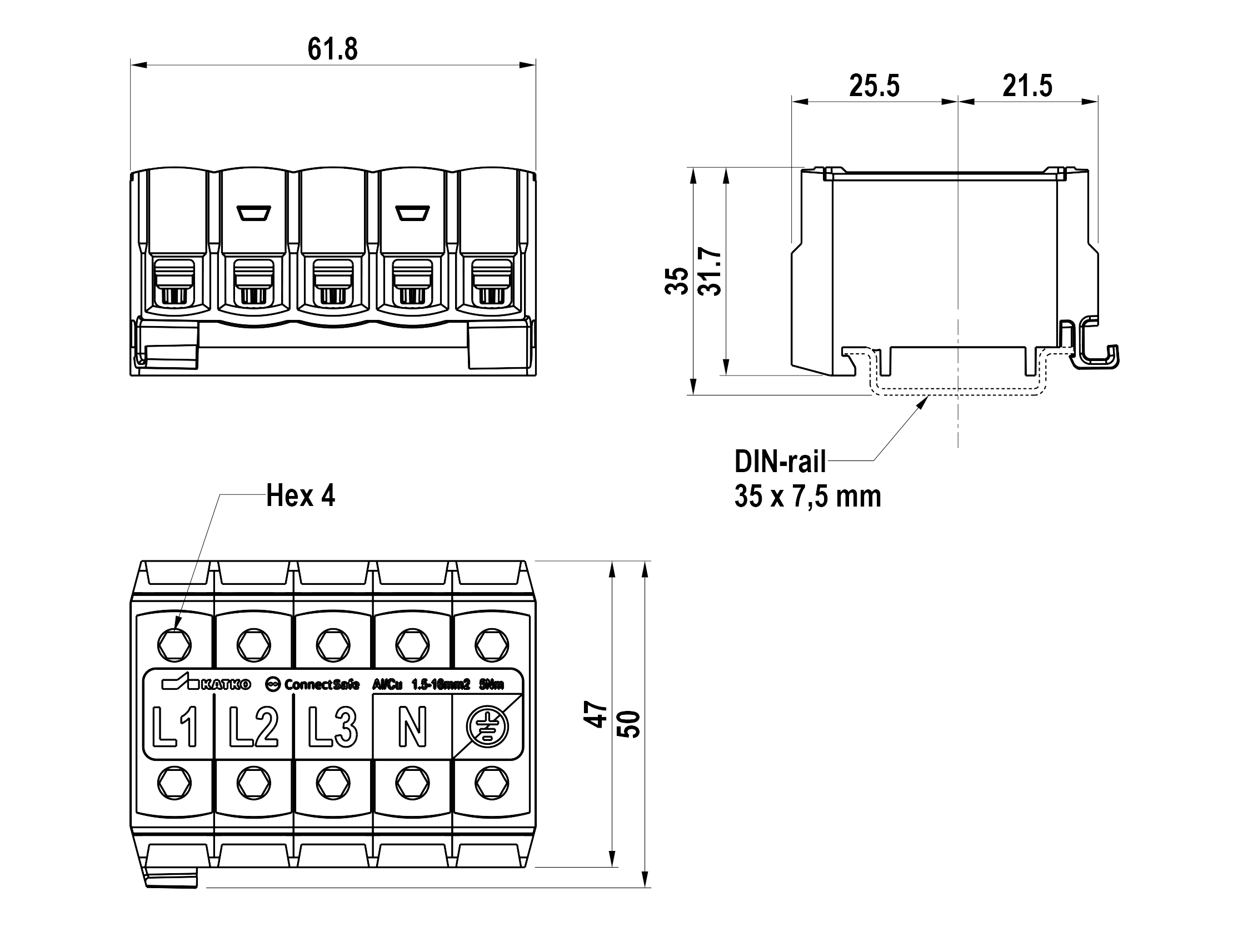

Dimensional drawing
