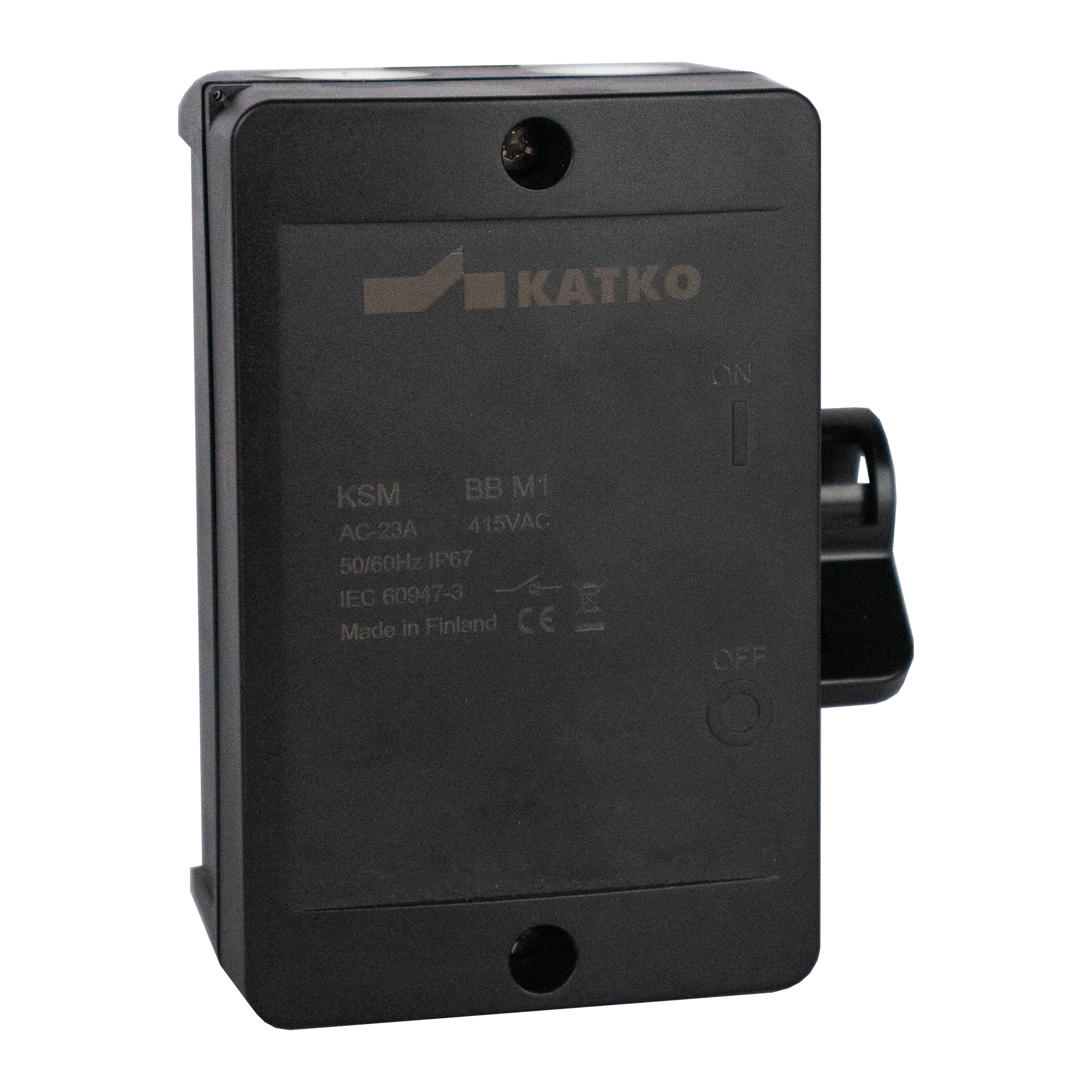

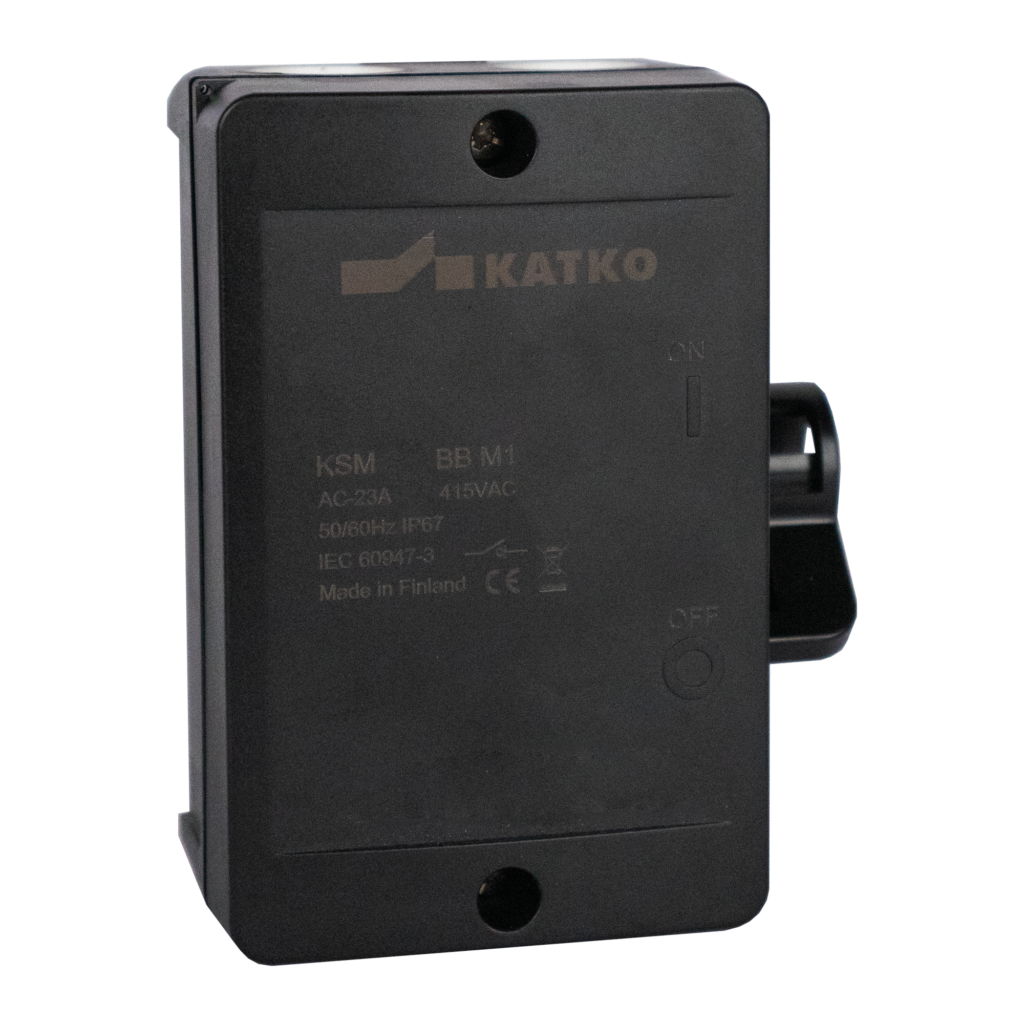

KSM 325 BB M1
KSM Side operated polycarbonate switches 16A & 25A
- Easy to install
- IP67
- Fully rated Load Break Switch
- Good resistance against UV and many chemicals
- Membrane gasket cable entries as standard with strain relief 2 x 20 mm on the top, 2 x 20 mm on the bottom and 2 x 15 mm on the base
- Possible to install M20 cable glands
- Wall mounting with membrane gaskets
- Wall mounting dimensions: 62,0 x 90,0 mm
- Large cable terminals 1,5 – 16 mm2
- Padlockable handle to OFF-position
- Handle sealable to ON-position
- Enclosure can be sealed to any position
- Available 2, 3, 4P and 3P with auxiliary contact (S)
- Large 1,5 – 16 mm2 neutral and earth terminals on 3P switch, earth on 2P and 4P switches
KSM Installation guide video >>
Accessories
Product details
| SKU | KSM 325 BB M1 |
|---|---|
| AC-23 400/415 V (A/kW) | 25 A / 11 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 1.5-16 |
| Cable Gland | 4 x membrane gasket |
| Color | Black |
| EAN | 6419410264836 |
| Enclosure | M1 |
| Enclosure Type | Polycarbonate |
| IP Rating | IP67 |
| Number of Poles | 3 |
| Operation | Side-operated |
| Weight (kg) | 0.28 |
Dimensional drawing
