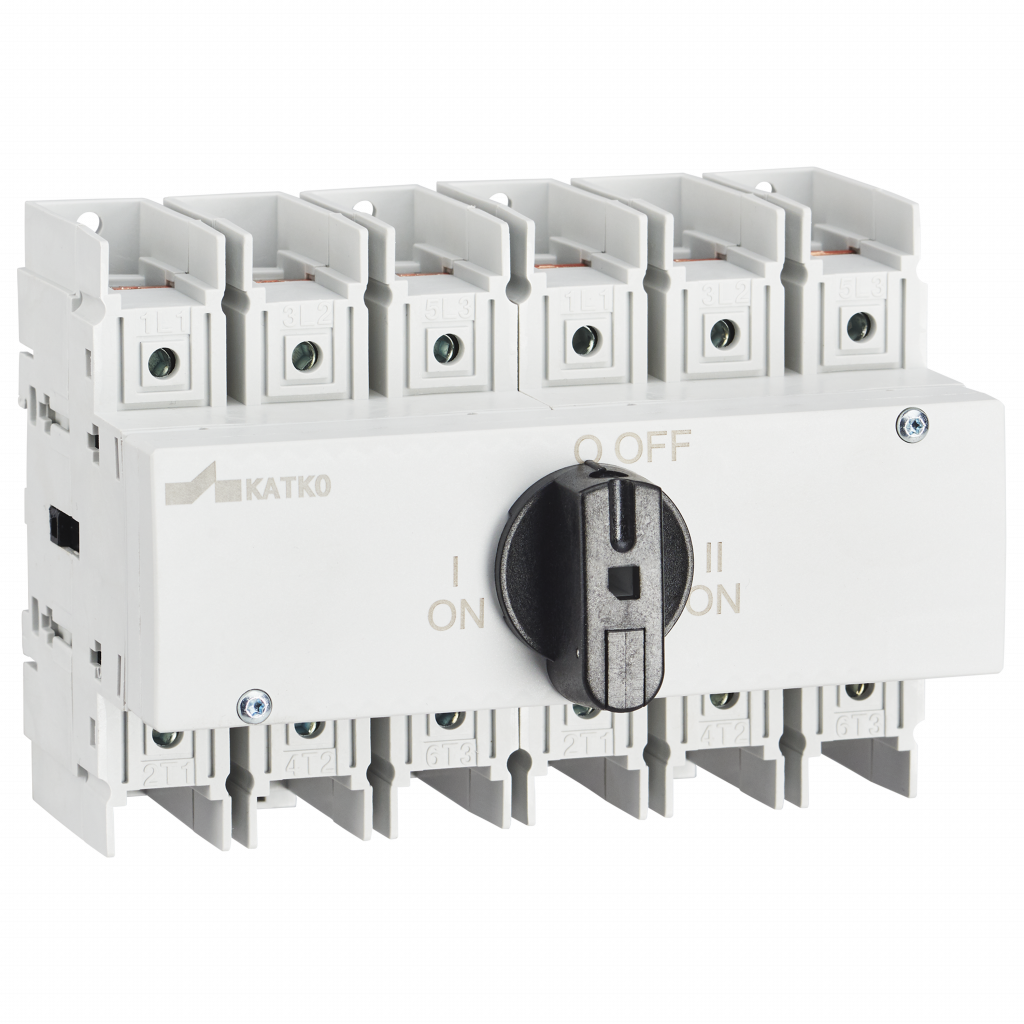

KU 360COUL98
UL 98 Listed KU series 30 - 100A
- General use rating 30 – 100 A / 600VAC, refer to detailed product specifications
- Lockable to off-position
- Modular design
- Switching speed is independent of the operator
- Silver contacts ensure safe and durable operation
- Suitable for use on a circuit capable of delivering 50kA rms symmetrical, 600 Vac when protected by Class J fuse.
- Change-over switches consist of two 3- or 4-pole switches. Marked with CO.
Product details
| SKU | KU 360COUL98 |
|---|---|
| Ampere Rating (600V) | 60 A |
| EAN | 6419410203798 |
| HP 240V | 20HP |
| HP 480V | 40HP |
| HP 600V | 60HP |
| Number of Poles | 3 |
| Operation | Rotary |
| Weight (lb/kg) | 2.2 / 1 |
| Wire Size (Cu Only) | 14-1/0 AWG |
