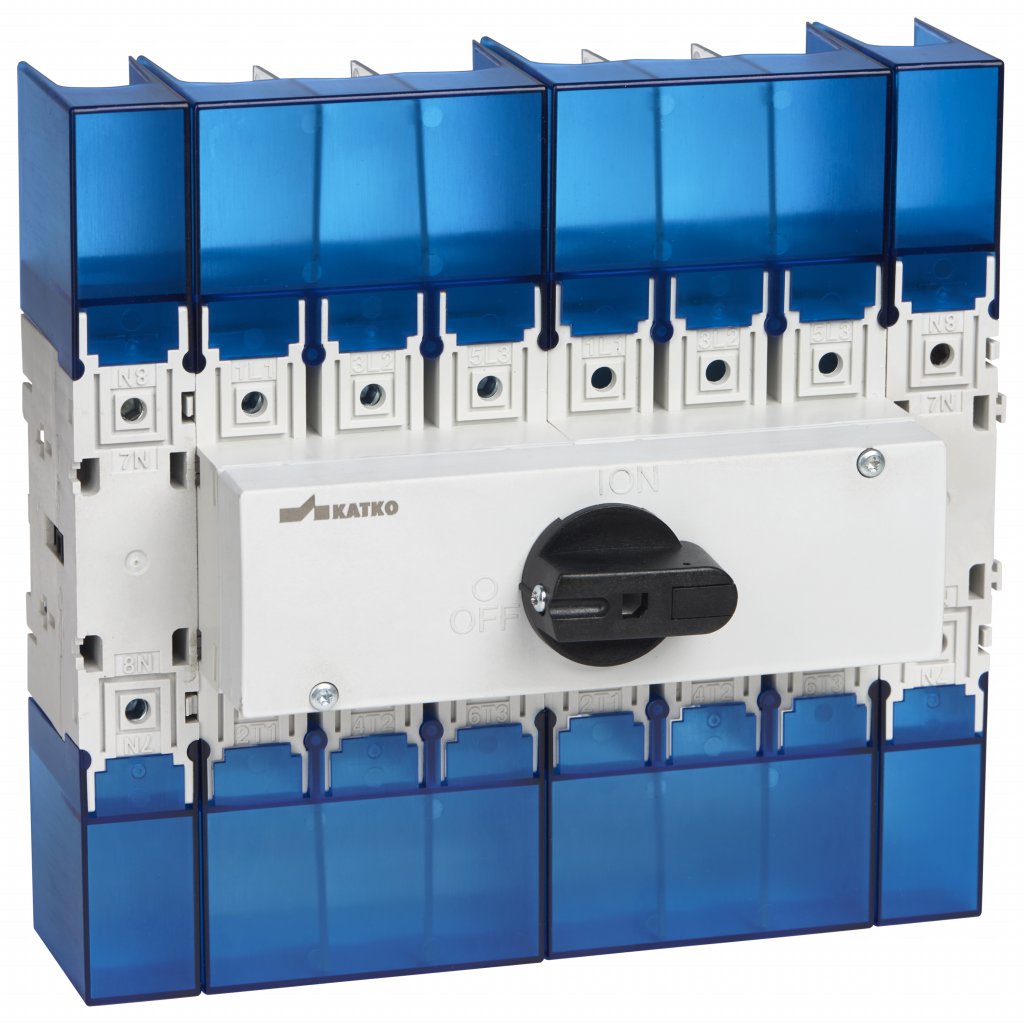

KU 8100
- Modular design
- DIN-rail mounting
- 3-pole and 4-pole KU-switches as standard
- Change-over switches: CO included in type name
- 6-pole and 8-pole versions consist of two 3-pole or 4-pole KU-switches connected by a parallel kit
- Switch technology by means of silver contacts ensures safe and durable operation
- Compatible with handles LK10 and LK11 (3 and 4 poles) and LK12 (6 and 8 poles) and LK12CO102 (change-over switch)
- Shafts L=100/200/300 AD11 and L=100/200/300 AD11/VT (3 and 4 poles), L=100/200/300 AD12/VT (6 and 8 poles and change-over switch)
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
- Note! Auxiliary contacts 160KU1V, 160KU2V, 160KU1VAU and 160KU2VAU used with 4 pole and 8 pole KU 100-160A (IEC) and KU 60-100A (UL98) might have less than 20ms time interval between the opening of the contacts of the auxiliary switch and the contacts of the main poles.
Product details
| SKU | KU 8100 |
|---|---|
| AC-22 400/415 V (A) | 100 A |
| AC-22 690 V (A) | 100 A |
| AC-23 400/415 V (A/kW) | 100 A / 55 kW |
| AC-23 690 V (A/kW) | 63 A / 55 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 6-70 |
| E-Number | 3600797 |
| EAN | 6419410203552 |
| Number of Poles | 8 |
| Operation | Rotary |
| Switch type | Load Break Switch |
| Weight (kg) | 1.18 |
