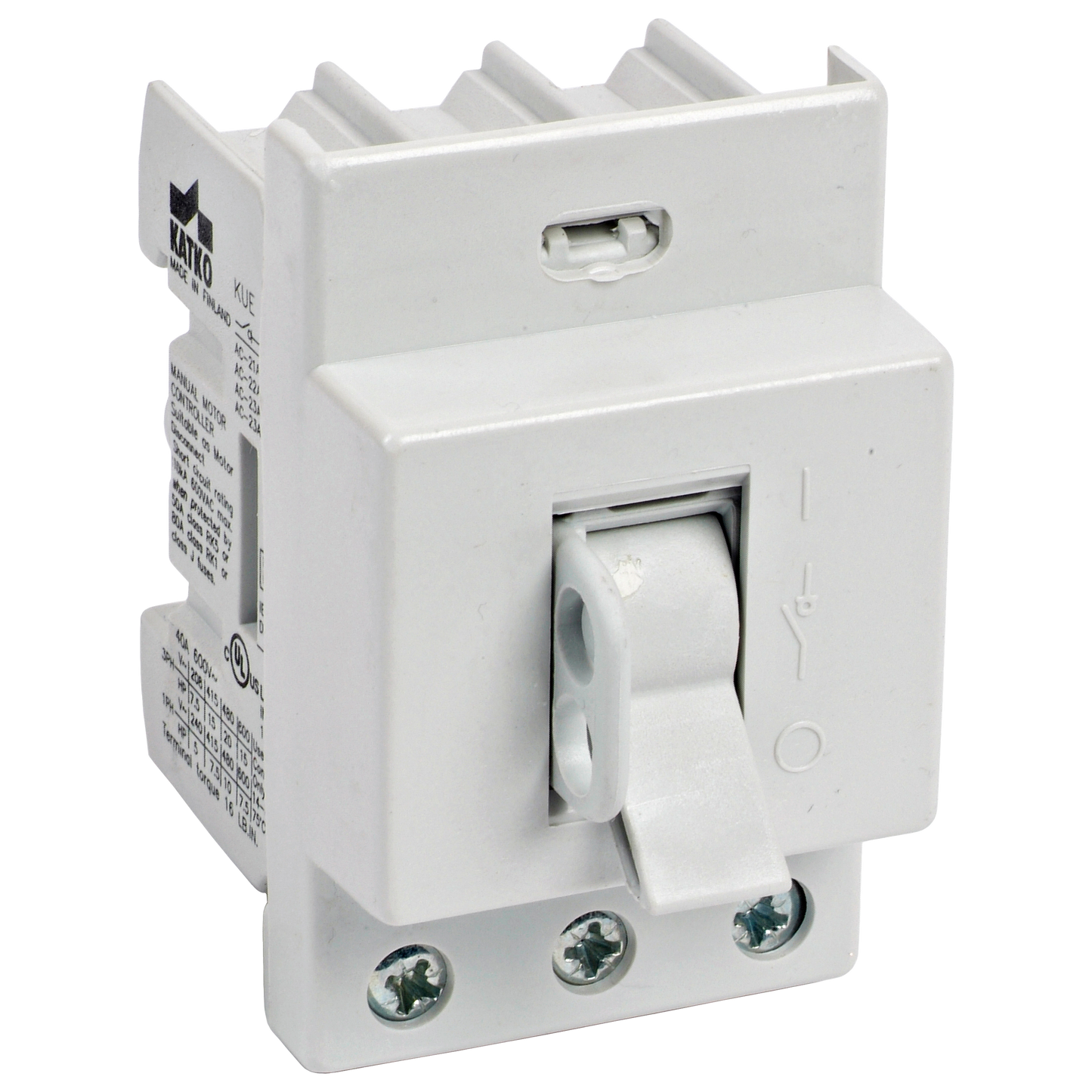

KUE 380 AD1KKUE
KUE Toggle switches 16-125A
- Compact size
- DIN-rail mounting
- 3-pole
- Switch technology by means of silver contacts ensures safe and durable operation
- Available with adapter to connect the switch to a three-phase section rail. Three different connection heights
- Tested according to IEC 60947-3
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Product details
| SKU | KUE 380 AD1KKUE |
|---|---|
| AC-21 400/415 V (A) | 100 A |
| AC-21 690 V (A) | 100 A |
| AC-22 400/415 V (A) | 80 A |
| AC-22 690 V (A) | 80 A |
| AC-23 400/415 V (A/kW) | 63 A / 30 kW |
| AC-23 690 V (A/kW) | 32 A / 30 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 2.5-35 |
| E-Number | 3635035 |
| EAN | 6419410200728 |
| Number of Poles | 3 |
| Operation | Toggle |
| Switch type | Load Break Switch |
| Weight (kg) | 0.22 |
Dimensional drawing
