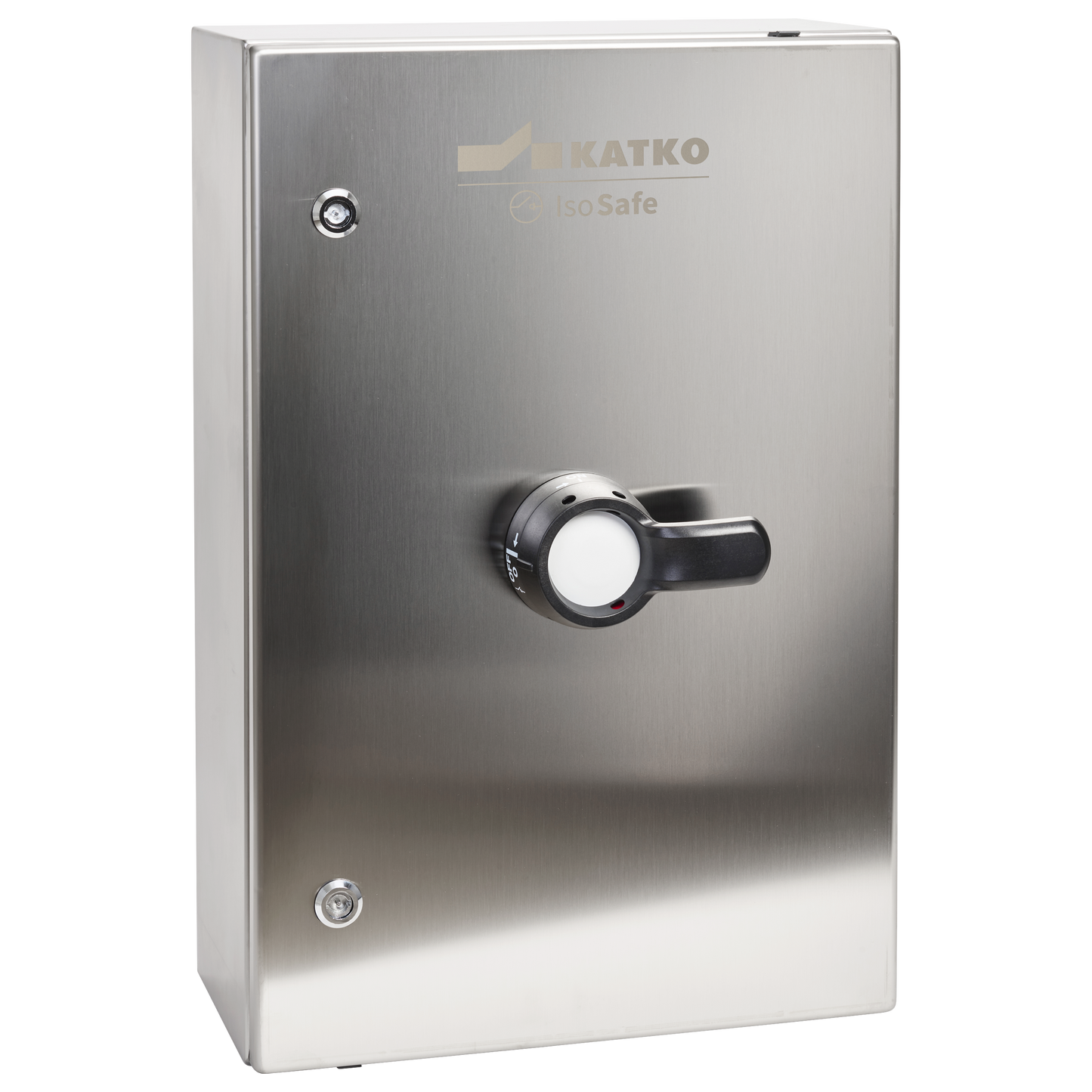

KVKER 3160 R6
Enclosed switch fuses 16-630A
- Available as 1P, 2P, 3P and 4P versions
- KKVT/M/R (16 – 32 A) with KU switch and KV 10×38 fuse holder
- KVKET/M/R (20-630 A) with KVKE switch fuse
- Available as BS and DIN fuse version. DIN as standard
- All versions available in grey/black or yellow/red. Grey/black as standard
- M=polycarbonate, T=steel, R=stainless steel
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Accessories
Product details
| SKU | KVKER 3160 R6 |
|---|---|
| AC-21 400/415 V (A) | 160 A |
| AC-21 690 V (A) | 160 A |
| AC-22 400/415 V (A) | 160 A |
| AC-22 690 V (A) | 160 A |
| AC-23 400/415 V (A/kW) | 125 A / 55 kW |
| AC-23 690 V (A/kW) | 125 A / 110 kW |
| Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size | 6-70 |
| Color | Standard |
| EAN | 6419410378090 |
| Enclosure | R6 |
| Enclosure Type | Stainless Steel: Polycarbonate Handle |
| IP Rating | 65 |
| Number of Poles | 3 |
| Operation | Front-operated |
| Switch type | Switch Fuse |
| Weight (kg) | 16 |
Dimensional drawing
