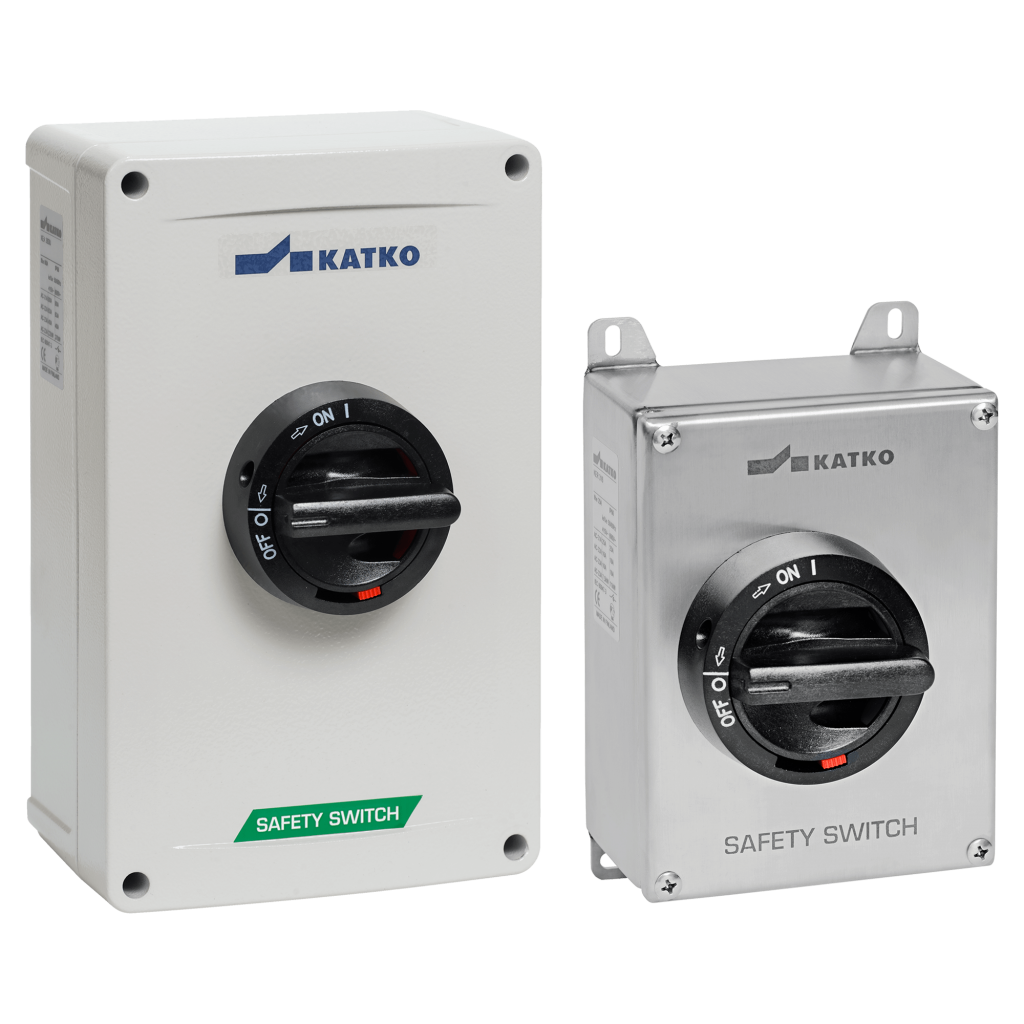

ATEX Switches 16-160A

Conforming to Directive 2014/34/EU, EN 60079-0 (2012), EN 60079-31 (2014)
Suitable for use in Zone 22 (Category 3D)
IP66
Frontal impact test of 7 Joules
Temperature range from -20 °C to +40°C
Available in aluminium and stainless steel
Padlockable with three locks
Door interlock with defeat mechanism
Separate ATEX-enclosures upon request
ATEX cable glands included
Tested according to IEC 60947-3
Available as EX EMC
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>

Accessories

Note: Certificates may vary between products. Check product specific certificates from the product page.

Data subject to change without notice. Always confirm the data is correct from the seller.

Inquire About This Product Group

Email*
Country*
Company
Phone number
Comments
Request a 3D drawing (.stp)
- Yes
Request a 2D drawing (.dwg)
- Yes
For which product?
Subscribe for a KATKO newsletter
- Yes
Name
This field is for validation purposes and should be left unchanged.

Products

Type	Enclosure Type	Number of Poles	AC-22 400/415 V	AC-23 400/415 V	AC-23 690 V	Enclosure	EAN
KEA 316 A2EX 2XM25PEX KST16MEX	Aluminium	3	16 A	16 A / 7.5 kW	16 A / 11 kW	A2	6419410305508
KEA 325 A2EX 2XM25PEX KST16MEX	Aluminium	3	25 A	25 A / 11 kW	25 A / 22 kW	A2	6419410305515
KEA 340 A2EX 2XM25PEX KST16MEX	Aluminium	3	40 A	40 A / 22 kW	32 A / 30 kW	A2	6419410305522
KEA 363 A4EX 2XM40PEX KST16MEX	Aluminium	3	63 A	40 A / 22 kW	40 A / 37 kW	A4	6419410305560
KEA 380 A4EX 2XM40PEX KST16MEX	Aluminium	3	80 A	63 A / 30 kW	40 A / 37 kW	A4	6419410305577
KEA 3100 A4EX 2XM40PEX KST16MEX	Aluminium	3	100 A	100 A / 55 kW	63 A / 55 kW	A4	6419410315422
KEA 3125 A4EX 2XM40PEX KST16MEX	Aluminium	3	125 A	125 A / 55 kW	80 A / 75 kW	A4	6419410305584
KEA 3160 A4EX 2XM40PEX KST16MEX	Aluminium	3	160 A	160 A / 90 kW	100 A / 90 kW	A4	6419410305591
KEA 416 A2EX 2XM25PEX KST16MEX	Aluminium	4	16 A	16 A / 7.5 kW	16 A / 11 kW	A2	6419410305539
KEA 425 A2EX 2XM25PEX KST16MEX	Aluminium	4	25 A	25 A / 11 kW	25 A / 22 kW	A2	6419410305546
KEA 440 A2EX 2XM25PEX KST16MEX	Aluminium	4	40 A	40 A / 22 kW	32 A / 30 kW	A2	6419410305553
KEA 463 A4EX 2XM40PEX KST16MEX	Aluminium	4	63 A	40 A / 22 kW	40 A / 37 kW	A4	6419410305607
KEA 480 A4EX 2XM40PEX KST16MEX	Aluminium	4	80 A	63 A / 30 kW	40 A / 37 kW	A4	6419410305614
KEA 4100 A4EX 2XM40PEX KST16MEX	Aluminium	4	100 A	100 A / 55 kW	63 A / 55 kW	A4	6419410315439
KEA 4125 A4EX 2XM40PEX KST16MEX	Aluminium	4	125 A	125 A / 55 kW	80 A / 75 kW	A4	6419410305621
KEA 4160 A4EX 2XM40PEX KST16MEX	Aluminium	4	160 A	160 A / 90 kW	100 A / 90 kW	A4	6419410305638
KEA 616 A4EX 4XM25PEX KST16MEX	Aluminium	6	16 A	16 A / 7.5 kW	16 A / 11 kW	A4	6419410306208
KEA 625 A4EX 4XM25PEX KST16MEX	Aluminium	6	25 A	25 A / 11 kW	25 A / 22 kW	A4	6419410306215
KEA 640 A4EX 4XM40PEX KST16MEX	Aluminium	6	40 A	40 A / 22 kW	32 A / 30 kW	A4	6419410306222
KEA 663 A4EX 4XM40PEX KST16MEX	Aluminium	6	63 A	40 A / 22 kW	40 A / 37 kW	A4	6419410306239
KEA 680 A4EX 4XM40PEX KST16MEX	Aluminium	6	80 A	63 A / 30 kW	40 A / 37 kW	A4	6419410306246
KEA 816 A4EX 4XM25PEX KST16MEX	Aluminium	8	16 A	16 A / 7.5 kW	16 A / 11 kW	A4	6419410306253
KEA 825 A4EX 4XM25PEX KST16MEX	Aluminium	8	25 A	25 A / 11 kW	25 A / 22 kW	A4	6419410306260
KEA 840 A4EX 4XM40PEX KST16MEX	Aluminium	8	40 A	40 A / 22 kW	32 A / 30 kW	A4	6419410306277
KEA 863 A4EX 4XM40PEX KST16MEX	Aluminium	8	63 A	40 A / 22 kW	40 A / 37 kW	A4	6419410306284
KEA 880 A4EX 4XM40PEX KST16MEX	Aluminium	8	80 A	63 A / 30 kW	40 A / 37 kW	A4	6419410306291
KER 316 RA2EX 2XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	3	16 A	16 A / 7.5 kW	16 A / 11 kW	RA2	6419410309797
KER 325 RA2EX 2XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	3	25 A	25 A / 11 kW	25 A / 22 kW	RA2	6419410309803
KER 340 RA2EX 2XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	3	40 A	40 A / 22 kW	32 A / 30 kW	RA2	6419410309810
KER 363 RA4EX 2XM32MEX KST16MEX	Stainless Steel: Polycarbonate Handle	3	63 A	40 A / 22 kW	40 A / 37 kW	RA4	6419410309858
KER 380 RA4EX 2XM32MEX KST16MEX	Stainless Steel: Polycarbonate Handle	3	80 A	63 A / 30 kW	40 A / 37 kW	RA4	6419410309865
KER 3100 RA5EX 2XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	3	100 A	100 A / 55 kW	63 A / 55 kW	RA5	6419410315446
KER 3125 RA5EX 2XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	3	125 A	125 A / 55 kW	80 A / 75 kW	RA5	6419410309872
KER 3160 RA5EX 2XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	3	160 A	160 A / 90 kW	100 A / 90 kW	RA5	6419410309889
KER 416 RA2EX 2XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	4	16 A	16 A / 7.5 kW	16 A / 11 kW	RA2	6419410309827
KER 425 RA2EX 2XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	4	25 A	25 A / 11 kW	25 A / 22 kW	RA2	6419410309834
KER 440 RA2EX 2XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	4	40 A	40 A / 22 kW	32 A / 30 kW	RA2	6419410309841
KER 463 RA4EX 2XM32MEX KST16MEX	Stainless Steel: Polycarbonate Handle	4	63 A	40 A / 22 kW	40 A / 37 kW	RA4	6419410309896
KER 480 RA4EX 2XM32MEX KST16MEX	Stainless Steel: Polycarbonate Handle	4	80 A	63 A / 30 kW	40 A / 37 kW	RA4	6419410309902
KER 4100 RA5EX 2XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	4	100 A	100 A / 55 kW	63 A / 55 kW	RA5	6419410315453
KER 4125 RA5EX 2XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	4	125 A	125 A / 55 kW	80 A / 75 kW	RA5	6419410305768
KER 4160 RA5EX 2XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	4	160 A	160 A / 90 kW	100 A / 90 kW	RA5	6419410305775
KER 616 RA4EX 4XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	6	16 A	16 A / 7.5 kW	16 A / 11 kW	RA4	6419410306406
KER 625 RA4EX 4XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	6	25 A	25 A / 11 kW	25 A / 22 kW	RA4	6419410306413
KER 640 RA4EX 4XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	6	40 A	40 A / 22 kW	32 A / 30 kW	RA4	6419410306420
KER 663 RA4EX 4XM32MEX KST16MEX	Stainless Steel: Polycarbonate Handle	6	63 A	40 A / 22 kW	40 A / 37 kW	RA4	6419410306437
KER 680 RA4EX 4XM32MEX KST16MEX	Stainless Steel: Polycarbonate Handle	6	80 A	63 A / 30 kW	40 A / 37 kW	RA4	6419410306444
KER 6100 RA5EX 4XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	6	100 A	100 A / 55 kW	63 A / 55 kW	RA5	6419410315460
KER 6125 RA5EX 4XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	6	125 A	125 A / 55 kW	80 A / 75 kW	RA5	6419410306505
KER 6160 RA5EX 4XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	6	160 A	160 A / 90 kW	100 A / 90 kW	RA5	6419410306512
KER 816 RA4EX 4XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	8	16 A	16 A / 7.5 kW	16 A / 11 kW	RA4	6419410306451
KER 825 RA4EX 4XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	8	25 A	25 A / 11 kW	25 A / 22 kW	RA4	6419410306468
KER 840 RA4EX 4XM25MEX KST16MEX	Stainless Steel: Polycarbonate Handle	8	40 A	40 A / 22 kW	32 A / 30 kW	RA4	6419410306475
KER 863 RA4EX 4XM32MEX KST16MEX	Stainless Steel: Polycarbonate Handle	8	63 A	40 A / 22 kW	40 A / 37 kW	RA4	6419410306482
KER 880 RA4EX 4XM32MEX KST16MEX	Stainless Steel: Polycarbonate Handle	8	80 A	63 A / 30 kW	40 A / 37 kW	RA4	6419410306499
KER 8100 RA5EX 4XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	8	100 A	100 A / 55 kW	63 A / 55 kW	RA5	6419410315477
KER 8125 RA5EX 4XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	8	125 A	125 A / 55 kW	80 A / 75 kW	RA5	6419410306529
KER 8160 RA5EX 4XM40MEX KST16MEX	Stainless Steel: Polycarbonate Handle	8	160 A	160 A / 90 kW	100 A / 90 kW	RA5	6419410306536
