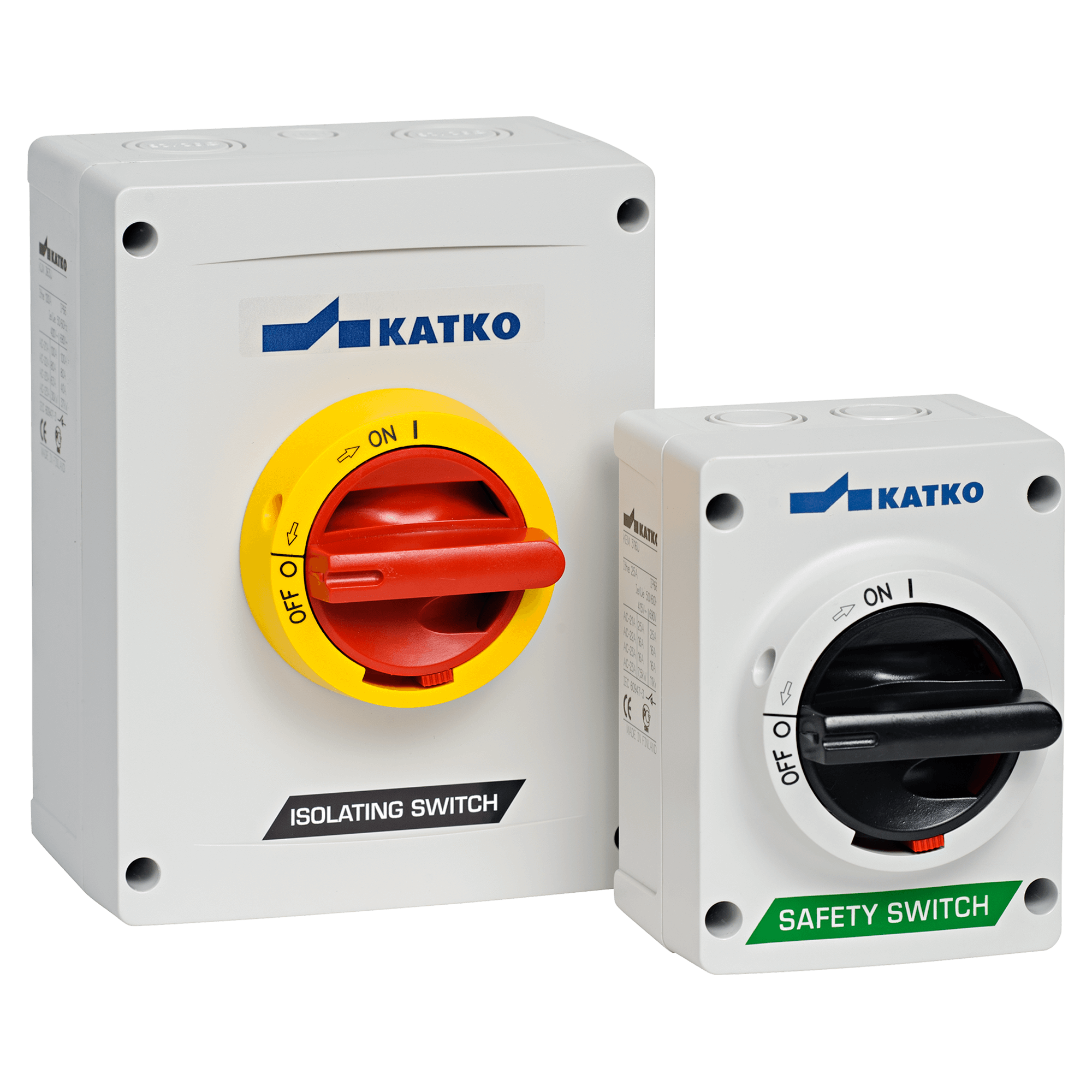

KEM ABS 10-80A

IP65
Recommended for indoor installation only
Padlockable with three locks
Door interlock with defeat mechanism
Excellent insulating properties
Good resistance against many chemicals
Tested according to IEC 60947-3
Katko uses recycled ABS plastic. Minor variance in properties of the material.
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

KEM 16-40 A Installation video guide >>

KEM 63-80 A Installation video guide >>

Technical datasheet >>

Accessories

Note: Certificates may vary between products. Check product specific certificates from the product page.

Data subject to change without notice. Always confirm the data is correct from the seller.

Inquire About This Product Group

Email*
Country*
Company
Phone number
Comments
Request a 3D drawing (.stp)
- Yes
Request a 2D drawing (.dwg)
- Yes
For which product?
Subscribe for a KATKO newsletter
- Yes
CAPTCHA
Phone
This field is for validation purposes and should be left unchanged.

Products

Type	Number of Poles	AC-22 400/415 V	AC-23 400/415 V	AC-23 690 V	EAN	Enclosure	Weight (kg)
KEM 110 M2ABS *	1	10 A	10 A / 2 kW (240V)		6419410276396	M2	0.4
KEM 116 M2ABS *	1	16 A	16 A / 3 kW (240V)		6419410276419	M2	0.4
KEM 125 M2ABS *	1	25 A	25 A / 4 kW (240V)		6419410276433	M2	0.4
KEM 140 M2ABS *	1	40 A	40 A / 7.5 kW (240V)		6419410276457	M2	0.4
KEM 210 M2ABS *	2	10 A	10 A / 2 kW (240V)		6419410276471	M2	0.5
KEM 216 M2ABS *	2	16 A	16 A / 3 kW (240V)		6419410276495	M2	0.5
KEM 225 M2ABS *	2	25 A	25 A / 4 kW (240V)		6419410276518	M2	0.5
KEM 240 M2ABS *	2	40 A	40 A / 7.5 kW (240V)		6419410276532	M2	0.5
KEM 310 M2ABS *	3	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410277096	M2	0.4
KEM 316 M2ABS *	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410277119	M2	0.4
KEM 325 M2ABS *	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410277126	M2	0.4
KEM 340 M2ABS *	3	40 A	40 A / 22 kW	25 A / 22 kW	6419410277140	M2	0.4
KEM 410 M2ABS *	4	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410277102	M2	0.5
KEM 416 M2ABS *	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410281444	M2	0.5
KEM 425 M2ABS *	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410277133	M2	0.5
KEM 440 M2ABS *	4	40 A	40 A / 22 kW	25 A / 22 kW	6419410277157	M2	0.5
KEM 110 YR M2ABS *	1	10 A	10 A / 2 kW (240V)		6419410276402	M2	0.4
KEM 116 YR M2ABS *	1	16 A	16 A / 3 kW (240V)		6419410276426	M2	0.4
KEM 125 YR M2ABS *	1	25 A	25 A / 4 kW (240V)		6419410276440	M2	0.4
KEM 140 YR M2ABS *	1	40 A	40 A / 7.5 kW (240V)		6419410276464	M2	0.4
KEM 210 YR M2ABS *	2	10 A	10 A / 2 kW (240V)		6419410276488	M2	0.5
KEM 216 YR M2ABS *	2	16 A	16 A / 3 kW (240V)		6419410276501	M2	0.5
KEM 225 YR M2ABS *	2	25 A	25 A / 4 kW (240V)		6419410276525	M2	0.5
KEM 240 YR M2ABS *	2	40 A	40 A / 7.5 kW (240V)		6419410276549	M2	0.5
KEM 310 YR M2ABS *	3	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410277164	M2	0.4
KEM 316 YR M2ABS *	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410277188	M2	0.4
KEM 325 YR M2ABS *	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410277201	M2	0.4
KEM 340 YR M2ABS *	3	40 A	40 A / 22 kW	25 A / 22 kW	6419410277225	M2	0.4
KEM 410 YR M2ABS *	4	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410277171	M2	0.5
KEM 416 YR M2ABS *	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410277195	M2	0.5
KEM 425 YR M2ABS *	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410277218	M2	0.5
KEM 440 YR M2ABS *	4	40 A	40 A / 22 kW	25 A / 22 kW	6419410277232	M2	0.5
KEM 110 M2ABS	1	10 A	10 A / 2 kW (240V)		6419410353806	M2	0.4
KEM 116 M2ABS	1	16 A	16 A / 3 kW (240V)		6419410353820	M2	0.4
KEM 125 M2ABS	1	25 A	25 A / 4 kW (240V)		6419410353844	M2	0.4
KEM 140 M2ABS	1	40 A	40 A / 5.5 kW (240V)		6419410353868	M2	0.4
KEM 163 M3ABS	1	63 A	40 A / 7.5 kW (240V)		6419410353882	M3	0.6
KEM 180 M3ABS	1	80 A	63 A / 11 kW (240V)		6419410353905	M3	0.6
KEM 210 M2ABS	2	10 A	10 A / 2 kW (240V)		6419410353929	M2	0.5
KEM 216 M2ABS	2	16 A	16 A / 3 kW (240V)		6419410353943	M2	0.5
KEM 225 M2ABS	2	25 A	25 A / 4 kW (240V)		6419410353967	M2	0.5
KEM 240 M2ABS	2	40 A	40 A / 5.5 kW (240V)		6419410353981	M2	0.5
KEM 263 M3ABS	2	63 A	40 A / 7.5 kW (240V)		6419410354001	M3	0.7
KEM 280 M3ABS	2	80 A	63 A / 11 kW (240V)		6419410354025	M3	0.7
KEM 310 M2ABS	3	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410481004	M2	0.4
KEM 316 M2ABS	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410481028	M2	0.4
KEM 325 M2ABS	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410481042	M2	0.4
KEM 340 M2ABS	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410481066	M2	0.4
KEM 363 M3ABS	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410481325	M3	0.6
KEM 380 M3ABS	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410481363	M3	0.6
KEM 410 M2ABS	4	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410481011	M2	0.5
KEM 416 M2ABS	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410481035	M2	0.5
KEM 425 M2ABS	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410481059	M2	0.5
KEM 440 M2ABS	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410481073	M2	0.5
KEM 463 M3ABS	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410481332	M3	0.7
KEM 480 M3ABS	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410481370	M3	0.7
KEM 110 YR M2ABS	1	10 A	10 A / 2 kW (240V)		6419410353813	M2	0.4
KEM 116 YR M2ABS	1	16 A	16 A / 3 kW (240V)		6419410353837	M2	0.4
KEM 125 YR M2ABS	1	25 A	25 A / 4 kW (240V)		6419410353851	M2	0.4
KEM 140 YR M2ABS	1	40 A	40 A / 5.5 kW (240V)		6419410353875	M2	0.4
KEM 163 YR M3ABS	1	63 A	40 A / 7.5 kW (240V)		6419410353899	M3	0.6
KEM 180 YR M3ABS	1	80 A	63 A / 11 kW (240V)		6419410353912	M3	0.6
KEM 210 YR M2ABS	2	10 A	10 A / 2 kW (240V)		6419410353936	M2	0.5
KEM 216 YR M2ABS	2	16 A	16 A / 3 kW (240V)		6419410353950	M2	0.5
KEM 225 YR M2ABS	2	25 A	25 A / 4 kW (240V)		6419410353974	M2	0.5
KEM 240 YR M2ABS	2	40 A	40 A / 5.5 kW (240V)		6419410353998	M2	0.5
KEM 263 YR M3ABS	2	63 A	40 A / 7.5 kW (240V)		6419410354018	M3	0.7
KEM 280 YR M3ABS	2	80 A	63 A / 11 kW (240V)		6419410354032	M3	0.7
KEM 310 YR M2ABS	3	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410481165	M2	0.4
KEM 316 YR M2ABS	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410481189	M2	0.4
KEM 325 YR M2ABS	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410481202	M2	0.4
KEM 340 YR M2ABS	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410481226	M2	0.4
KEM 363 YR M3ABS	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410481646	M3	0.6
KEM 380 YR M3ABS	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410481684	M3	0.6
KEM 410 YR M2ABS	4	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410481172	M2	0.5
KEM 416 YR M2ABS	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410481196	M2	0.5
KEM 425 YR M2ABS	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410481219	M2	0.5
KEM 440 YR M2ABS	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410481233	M2	0.5
KEM 463 YR M3ABS	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410481653	M3	0.7
KEM 480 YR M3ABS	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410481691	M3	0.7
