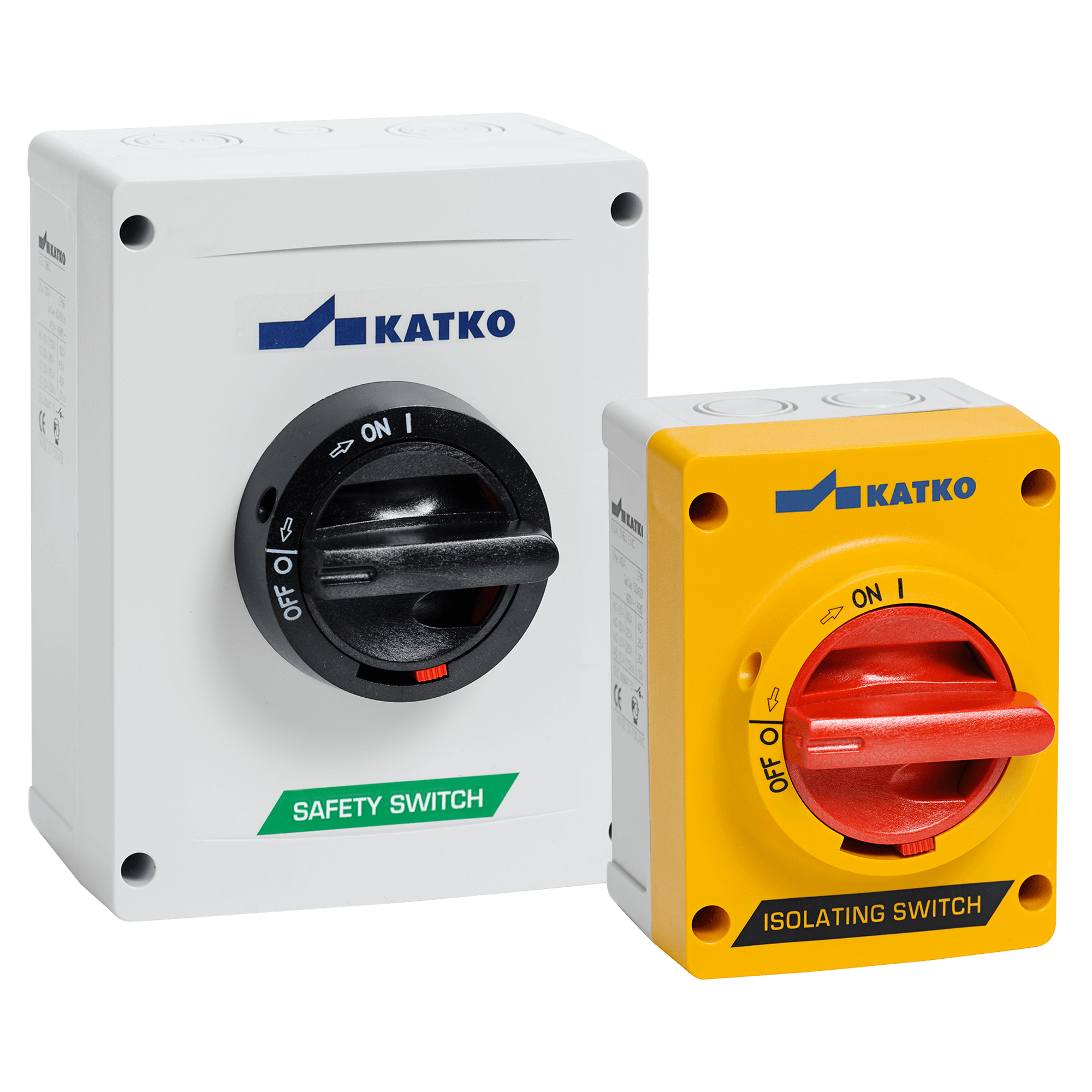

KEM Polycarbonate 10-630A

IP66; Enclosure types M2, M3, M4, MF11, MF01, MF02 MF03, MF04
Self-extinguishing material
Wide operating temperature range
Padlockable with 3 locks
Door interlock with defeat mechanism
Excellent insulating properties
Good UV resistance
Good resistance against many chemicals
Tested according to IEC 60947-3
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

KEM 16-40 A Installation guide video >>

KEM 63-80 A Installation guide video >>

Technical datasheet >>

Accessories

Note: Certificates may vary between products. Check product specific certificates from the product page.

Data subject to change without notice. Always confirm the data is correct from the seller.

Inquire About This Product Group

Email*
Country*
Company
Phone number
Comments
Request a 3D drawing (.stp)
- Yes
Request a 2D drawing (.dwg)
- Yes
For which product?
Subscribe for a KATKO newsletter
- Yes
Phone
This field is for validation purposes and should be left unchanged.

Products

Type	Number of Poles	AC-22 400/415 V	AC-23 400/415 V	AC-23 690 V	EAN	Enclosure	Weight (kg)
KEM 110 M2 *	1	10 A	10 A / 2 kW (240V)		6419410276358	M2	0.4
KEM 116 M2 *	1	16 A	16 A / 3 kW (240V)		6419410439913	M2	0.4
KEM 125 M2 *	1	25 A	25 A / 4 kW (240V)		6419410439982	M2	0.4
KEM 140 M2 *	1	40 A	40 A / 7.5 kW (240V)		6419410440056	M2	0.4
KEM 210 M2 *	2	10 A	10 A / 2 kW (240V)		6419410276372	M2	0.4
KEM 216 M2 *	2	16 A	16 A / 3 kW (240V)		6419410440124	M2	0.4
KEM 225 M2 *	2	25 A	25 A / 4 kW (240V)		6419410440193	M2	0.4
KEM 240 M2 *	2	40 A	40 A / 7.5 kW (240V)		6419410440261	M2	0.4
KEM 310 M2 *	3	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410270585	M2	0.4
KEM 316 M2 *	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410440339	M2	0.4
KEM 325 M2 *	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410440407	M2	0.4
KEM 340 M2 *	3	40 A	40 A / 22 kW	25 A / 22 kW	6419410440476	M2	0.4
KEM 410 M2 *	4	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410270608	M2	0.5
KEM 416 M2 *	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410440544	M2	0.5
KEM 425 M2 *	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410440612	M2	0.5
KEM 440 M2 *	4	40 A	40 A / 22 kW	25 A / 22 kW	6419410440681	M2	0.5
KEM 110 YR M2 *	1	10 A	10 A / 2 kW (240V)		6419410276365	M2	0.4
KEM 116 YR M2 *	1	16 A	16 A / 3 kW (240V)		6419410444115	M2	0.4
KEM 125 YR M2 *	1	25 A	25 A / 4 kW (240V)		6419410444184	M2	0.4
KEM 140 YR M2 *	1	40 A	40 A / 7.5 kW (240V)		6419410444252	M2	0.4
KEM 210 YR M2 *	2	10 A	10 A / 2 kW (240V)		6419410276389	M2	0.4
KEM 216 YR M2 *	2	16 A	16 A / 3 kW (240V)		6419410444320	M2	0.4
KEM 225 YR M2 *	2	25 A	25 A / 4 kW (240V)		6419410444399	M2	0.4
KEM 240 YR M2 *	2	40 A	40 A / 7.5 kW (240V)		6419410444467	M2	0.4
KEM 310 YR M2 *	3	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410270592	M2	0.4
KEM 316 YR M2 *	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410444535	M2	0.4
KEM 325 YR M2 *	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410444603	M2	0.4
KEM 340 YR M2 *	3	40 A	40 A / 22 kW	25 A / 22 kW	6419410444672	M2	0.4
KEM 410 YR M2 *	4	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410270615	M2	0.5
KEM 416 YR M2 *	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410444740	M2	0.5
KEM 425 YR M2 *	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410444818	M2	0.5
KEM 440 YR M2 *	4	40 A	40 A / 22 kW	25 A / 22 kW	6419410444887	M2	0.5
KEM 325 M3 *	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410441244	M3	0.6
KEM 340 M3 *	3	40 A	40 A / 22 kW	25 A / 22 kW	6419410441312	M3	0.6
KEM 425 M3 *	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410441459	M3	0.7
KEM 440 M3 *	4	40 A	40 A / 22 kW	25 A / 22 kW	6419410441527	M3	0.7
KEM 425 M3	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410351550	M3	0.7
KEM 440 M3	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410351574	M3	0.7
KEM 110 M2	1	10 A	10 A / 2 kW (240V)		6419410353585	M2	0.4
KEM 110 YR M2	1	10 A	10 A / 2 kW (240V)		6419410353592	M2	0.4
KEM 116 M2	1	16 A	16 A / 3 kW (240V)		6419410351475	M2	0.4
KEM 116 YR M2	1	16 A	16 A / 3 kW (240V)		6419410353608	M2	0.4
KEM 125 M2	1	25 A	25 A / 4 kW (240V)		6419410351482	M2	0.4
KEM 125 YR M2	1	25 A	25 A / 4 kW (240V)		6419410353615	M2	0.4
KEM 140 M2	1	40 A	40 A / 7.5 kW (240V)		6419410353622	M2	0.4
KEM 140 YR M2	1	40 A	40 A / 7.5 kW (240V)		6419410353639	M2	0.4
KEM 163 M3	1	63 A	40 A / 7.5 kW (240V)		6419410353646	M3	0.6
KEM 163 YR M3	1	63 A	40 A / 7.5 kW (240V)		6419410353653	M3	0.6
KEM 180 M3	1	80 A	63 A / 11 kW (240V)		6419410353660	M3	0.6
KEM 180 YR M3	1	80 A	63 A / 11 kW (240V)		6419410353677	M3	0.6
KEM 210 M2	2	10 A	10 A / 2 kW (240V)		6419410353684	M2	0.4
KEM 210 YR M2	2	10 A	10 A / 2 kW (240V)		6419410353691	M2	0.4
KEM 216 M2	2	16 A	16 A / 3 kW (240V)		6419410353707	M2	0.4
KEM 216 YR M2	2	16 A	16 A / 3 kW (240V)		6419410353714	M2	0.4
KEM 225 M2	2	25 A	25 A / 4 kW (240V)		6419410353721	M2	0.4
KEM 225 YR M2	2	25 A	25 A / 4 kW (240V)		6419410353738	M2	0.4
KEM 240 M2	2	40 A	40 A / 7.5 kW (240V)		6419410353745	M2	0.4
KEM 240 YR M2	2	40 A	40 A / 7.5 kW (240V)		6419410353752	M2	0.4
KEM 263 M3	2	63 A	40 A / 7.5 kW (240V)		6419410353769	M3	0.6
KEM 263 YR M3	2	63 A	40 A / 7.5 kW (240V)		6419410353776	M3	0.6
KEM 280 M3	2	80 A	63 A / 11 kW (240V)		6419410353783	M3	0.6
KEM 280 YR M3	2	80 A	63 A / 11 kW (240V)		6419410353790	M3	0.6
KEM 310 M2	3	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410327654	M2	0.4
KEM 310 YR M2	3	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410327722	M2	0.4
KEM 316 M2	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410327661	M2	0.4
KEM 316 YR M2	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410327739	M2	0.4
KEM 325 M2	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410327685	M2	0.4
KEM 325 YR M2	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410327753	M2	0.4
KEM 340 M2	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410327708	M2	0.4
KEM 340 YR M2	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410327777	M2	0.4
KEM 363 M3	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410399637	M3	0.6
KEM 363 YR M3	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410399644	M3	0.6
KEM 380 M3	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410399651	M3	0.6
KEM 380 YR M3	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410399668	M3	0.6
KEM 3100 M4	3	100 A	100 A / 55 kW	63 A / 55 kW	6419410315101	M4	1
KEM 3100 YR M4	3	100 A	100 A / 55 kW	63 A / 55 kW	6419410315149	M4	1
KEM 3125 M4	3	125 A	125 A / 55 kW	80 A / 75 kW	6419410481721	M4	1
KEM 3125 YR M4	3	125 A	125 A / 55 kW	80 A / 75 kW	6419410481738	M4	1
KEM 3160 MF11	3	160 A	160 A / 90 kW	100 A / 90 kW	6419410323403	MF11	3.3
KEM 3160 YR MF11	3	160 A	160 A / 90 kW	100 A / 90 kW	6419410319505	MF11	3.3
KEM 3200 MF03	3	200 A	200 A / 110 kW	200 A / 160 kW	6419410323809	MF03	7.8
KEM 3200 YR MF03	3	200 A	200 A / 110 kW	200 A / 160 kW	6419410319826	MF03	7.8
KEM 3200C MF11	3	200 A	200 A / 110 kW		6419410323816	MF11	3.4
KEM 3200C YR MF11	3	200 A	200 A / 110 kW		6419410323823	MF11	3.4
KEM 3250 MF03	3	250 A	250 A / 132 kW	250 A / 250 kW	6419410324202	MF03	7.8
KEM 3250 YR MF03	3	250 A	250 A / 132 kW	250 A / 250 kW	6419410319888	MF03	7.8
KEM 3315 MF03	3	315 A	315 A / 160 kW	315 A / 315 kW	6419410324608	MF03	8.2
KEM 3250C MF11	3	250 A	250 A / 132 kW		6419410324219	MF11	3.4
KEM 3315 YR MF03	3	315 A	315 A / 160 kW	315 A / 315 kW	6419410319949	MF03	8.2
KEM 3250C YR MF11	3	250 A	250 A / 132 kW		6419410324226	MF11	3.4
KEM 3400 MF03	3	400 A	400 A / 200 kW	400 A / 355 kW	6419410325001	MF03	8.2
KEM 3400 YR MF03	3	400 A	400 A / 200 kW	400 A / 355 kW	6419410320006	MF03	8.2
KEM 3630 MF04	3	630 A	630 A / 355 kW	630 A / 630 kW	6419410325407	MF04	21
KEM 3630 YR MF04	3	630 A	630 A / 355 kW	630 A / 630 kW	6419410320068	MF04	21
KEM 410 M2	4	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410321072	M2	0.5
KEM 410 YR M2	4	10 A	10 A / 5.5 kW	10 A / 7.5 kW	6419410301487	M2	0.5
KEM 416 M2	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410327678	M2	0.5
KEM 416 YR M2	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410327746	M2	0.5
KEM 425 M2	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410327692	M2	0.5
KEM 425 YR M2	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410327760	M2	0.5
KEM 440 M2	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410327715	M2	0.5
KEM 440 YR M2	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410327784	M2	0.5
KEM 463 M3	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410399675	M3	0.7
KEM 463 YR M3	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410399682	M3	0.7
KEM 480 M3	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410399699	M3	0.7
KEM 4100 YR M4	4	100 A	100 A / 55 kW	63 A / 55 kW	6419410315156	M4	1
KEM 480 YR M3	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410399705	M3	0.7
KEM 4125 M4	4	125 A	125 A / 55 kW	80 A / 75 kW	6419410323120	M4	1
KEM 4100 M4	4	100 A	100 A / 55 kW	63 A / 55 kW	6419410315118	M4	1
KEM 4125 YR M4	4	125 A	125 A / 55 kW	80 A / 75 kW	6419410323144	M4	1
KEM 4160 MF11	4	160 A	160 A / 90 kW	100 A / 90 kW	6419410323502	MF11	3.4
KEM 4160 YR MF11	4	160 A	160 A / 90 kW	100 A / 90 kW	6419410319604	MF11	3.4
KEM 4200 MF03	4	200 A	200 A / 110 kW	200 A / 160 kW	6419410323908	MF03	8.3
KEM 4200 YR MF03	4	200 A	200 A / 110 kW	200 A / 160 kW	6419410323922	MF03	8.3
KEM 4200C MF11	4	200 A	200 A / 110 kW		6419410323915	MF11	3.5
KEM 4200C YR MF11	4	200 A	200 A / 110 kW		6419410323939	MF11	3.5
KEM 4250 MF03	4	250 A	250 A / 132 kW	250 A / 250 kW	6419410324325	MF03	8.3
KEM 4250 YR MF03	4	250 A	250 A / 132 kW	250 A / 250 kW	6419410324349	MF03	8.3
KEM 4250C MF11	4	250 A	250 A / 132 kW		6419410324332	MF11	3.5
KEM 4250C YR MF11	4	250 A	250 A / 132 kW		6419410324356	MF11	3.5
KEM 4315 MF03	4	315 A	315 A / 160 kW	315 A / 315 kW	6419410324707	MF03	8.8
KEM 4315 YR MF03	4	315 A	315 A / 160 kW	315 A / 315 kW	6419410324721	MF03	8.8
KEM 4400 MF03	4	400 A	400 A / 200 kW	400 A / 355 kW	6419410325100	MF03	8.8
KEM 4400 YR MF03	4	400 A	400 A / 200 kW	400 A / 355 kW	6419410325124	MF03	8.8
KEM 4630 MF04	4	630 A	630 A / 355 kW	630 A / 630 kW	6419410327616	MF04	22.1
KEM 4630 YR MF04	4	630 A	630 A / 355 kW	630 A / 630 kW	6419410327623	MF04	22.1
KEM 616 M3	6	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410399712	M3	0.9
KEM 616 YR M3	6	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410399729	M3	0.9
KEM 625 M3	6	25 A	25 A / 11 kW	25 A / 22 kW	6419410399736	M3	0.9
KEM 625 YR M3	6	25 A	25 A / 11 kW	25 A / 22 kW	6419410399743	M3	0.9
KEM 640 M3	6	40 A	40 A / 22 kW	32 A / 30 kW	6419410399750	M3	0.9
KEM 640 YR M3	6	40 A	40 A / 22 kW	32 A / 30 kW	6419410399767	M3	0.9
KEM 663 M3	6	63 A	40 A / 22 kW	40 A / 37 kW	6419410399774	M3	0.9
KEM 663 YR M3	6	63 A	40 A / 22 kW	40 A / 37 kW	6419410399781	M3	0.9
KEM 680 M3	6	80 A	63 A / 30 kW	40 A / 37 kW	6419410399798	M3	0.9
KEM 6100 YR MF11	6	100 A	100 A / 55 kW	63 A / 55 kW	6419410315163	MF11	2.1
KEM 680 YR M3	6	80 A	63 A / 30 kW	40 A / 37 kW	6419410399804	M3	0.9
KEM 6125 MF11	6	125 A	125 A / 55 kW	80 A / 75 kW	6419410323205	MF11	2.1
KEM 6100 MF11	6	100 A	100 A / 55 kW	63 A / 55 kW	6419410315125	MF11	2.1
KEM 6125 YR MF11	6	125 A	125 A / 55 kW	80 A / 75 kW	6419410319307	MF11	2.1
KEM 6160 MF11	6	160 A	160 A / 90 kW	100 A / 90 kW	6419410323601	MF11	3.8
KEM 6160 YR MF11	6	160 A	160 A / 90 kW	100 A / 90 kW	6419410319703	MF11	3.8
KEM 816 M3	8	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410399811	M3	1
KEM 816 YR M3	8	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410399828	M3	1
KEM 825 M3	8	25 A	25 A / 11 kW	25 A / 22 kW	6419410399835	M3	1
KEM 825 YR M3	8	25 A	25 A / 11 kW	25 A / 22 kW	6419410399842	M3	1
KEM 840 M3	8	40 A	40 A / 22 kW	32 A / 30 kW	6419410399859	M3	1
KEM 840 YR M3	8	40 A	40 A / 22 kW	32 A / 30 kW	6419410399866	M3	1
KEM 863 M3	8	63 A	40 A / 22 kW	40 A / 37 kW	6419410399873	M3	1
KEM 863 YR M3	8	63 A	40 A / 22 kW	40 A / 37 kW	6419410399880	M3	1
KEM 880 M3	8	80 A	63 A / 30 kW	40 A / 37 kW	6419410399897	M3	1
KEM 880 YR M3	8	80 A	63 A / 30 kW	40 A / 37 kW	6419410399903	M3	1
KEM 8100 MF11	8	100 A	100 A / 55 kW	63 A / 55 kW	6419410315132	MF11	2.2
KEM 8100 YR MF11	8	100 A	100 A / 55 kW	63 A / 55 kW	6419410315170	MF11	2.2
KEM 8125 MF11	8	125 A	125 A / 55 kW	80 A / 75 kW	6419410323304	MF11	2.2
KEM 8125 YR MF11	8	125 A	125 A / 55 kW	80 A / 75 kW	6419410319406	MF11	2.2
KEM 8160 MF11	8	160 A	160 A / 90 kW	100 A / 90 kW	6419410323700	MF11	4
KEM 8160 YR MF11	8	160 A	160 A / 90 kW	100 A / 90 kW	6419410319758	MF11	4
