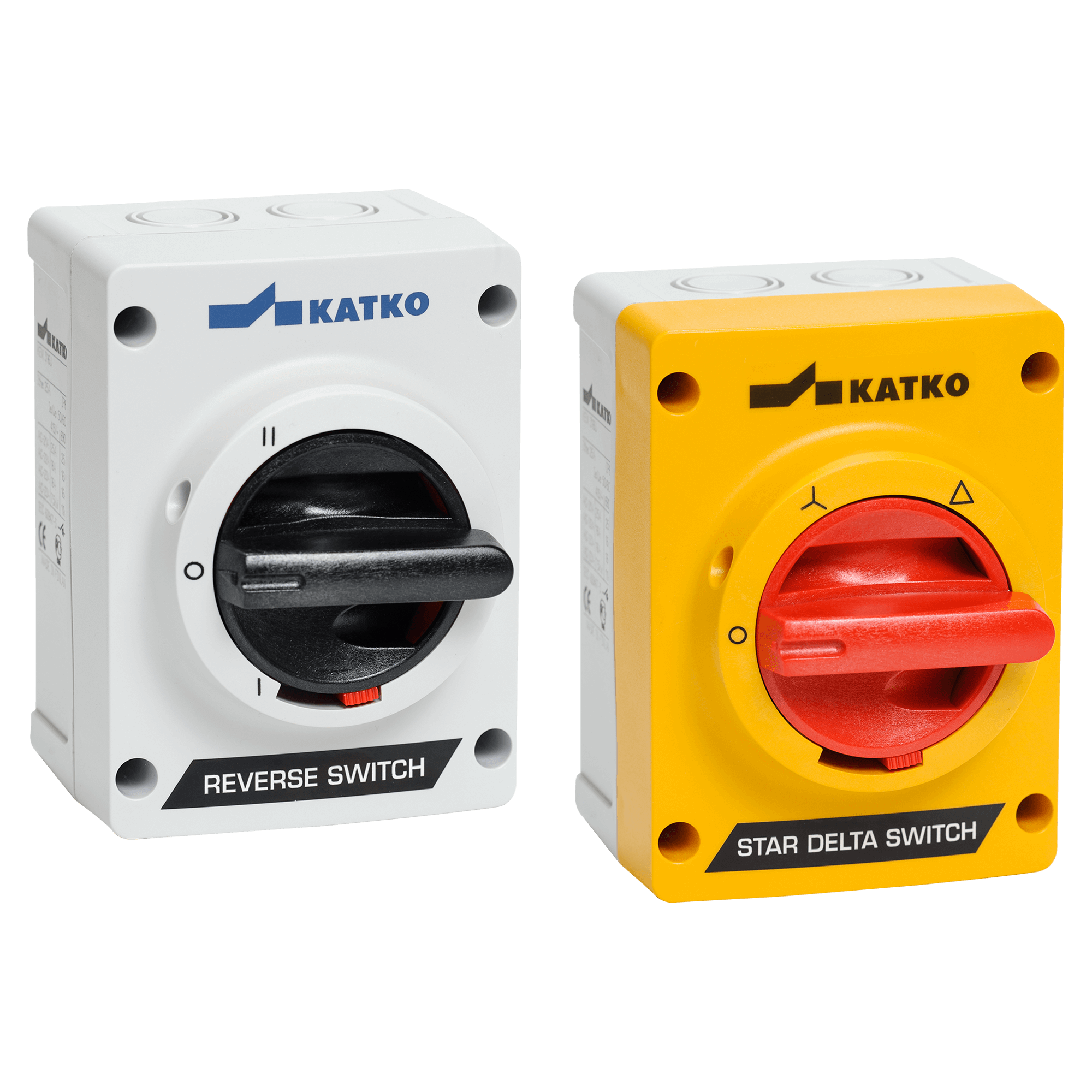

TKM Motor control switches 16-40A

Cam switches
Polycarbonate enclosed
IP66
Rated thermal current I (the) 16 – 40 A
Padlockable with three locks
Door interlock with defeat mechanism
Terminals: Cu 1,5 – 16 mm 2
Max. terminal torque: 1,8 Nm
IEC 60 947-3
TK= star delta
SK= reverse switch
Tested according to IEC 60947-3
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet>>

Accessories

Note: Certificates may vary between products. Check product specific certificates from the product page.

Data subject to change without notice. Always confirm the data is correct from the seller.

Inquire About This Product Group

Email*
Country*
Company
Phone number
Comments
Request a 3D drawing (.stp)
- Yes
Request a 2D drawing (.dwg)
- Yes
For which product?
Subscribe for a KATKO newsletter
- Yes
Phone
This field is for validation purposes and should be left unchanged.

Products

Type	Enclosure Material	Number of Poles	AC-22 400/415 V	AC-23 400/415 V	AC-23 690 V	EAN	Enclosure
TKM 325SSSK M2 3XM25P	Polycarbonate	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410204795	M2
TKM 316SK M2 3XM25P	Polycarbonate	3	16 A	16 A / 7.5 kW		6419410344729	M2
TKM 325SK M2 3XM25P	Polycarbonate	3	25 A	25 A / 11 kW		6419410345221	M2
TKK 325TK A2 3XM25M KST25M KST16M	Aluminium	3		25 A / 11 kW	25 A / 22 kW	6419410345108	A2
TKM 340SK M2 3XM25P	Polycarbonate	3	40 A	40 A / 18.5 kW		6419410345962	M2
TKM 316SK YR M2 3XM25P	Polycarbonate	3	16 A	16 A / 7.5 kW		6419410344743	M2
TKM 325SK YR M2 3XM25P	Polycarbonate	3	25 A	25 A / 11 kW		6419410345238	M2
TKM 340SK YR M2 3XM25P	Polycarbonate	3	40 A	40 A / 18.5 kW		6419410345986	M2
TKM 316TK M2 3XM25P	Polycarbonate	3	16 A	16 A / 7.5 kW		6419410344828	M2
TKM 325TK M2 3XM25P	Polycarbonate	3	25 A	25 A / 11 kW		6419410345023	M2
TKK 325SK A2 3XM25M KST16M	Aluminium	3		25 A / 11 kW	25 A / 22 kW	6419410345306	A2
TKM 340TK M2 3XM25P	Polycarbonate	3	40 A	40 A / 18.5 kW		6419410301272	M2
TKM 316TK YR M2 3XM25P	Polycarbonate	3	16 A	16 A / 7.5 kW		6419410344842	M2
TKM 325TK YR M2 3XM25P	Polycarbonate	3	25 A	25 A / 11 kW		6419410345030	M2
TKM 340TK YR M2 3XM25P	Polycarbonate	3	40 A	40 A / 18.5 kW		6419410345641	M2
