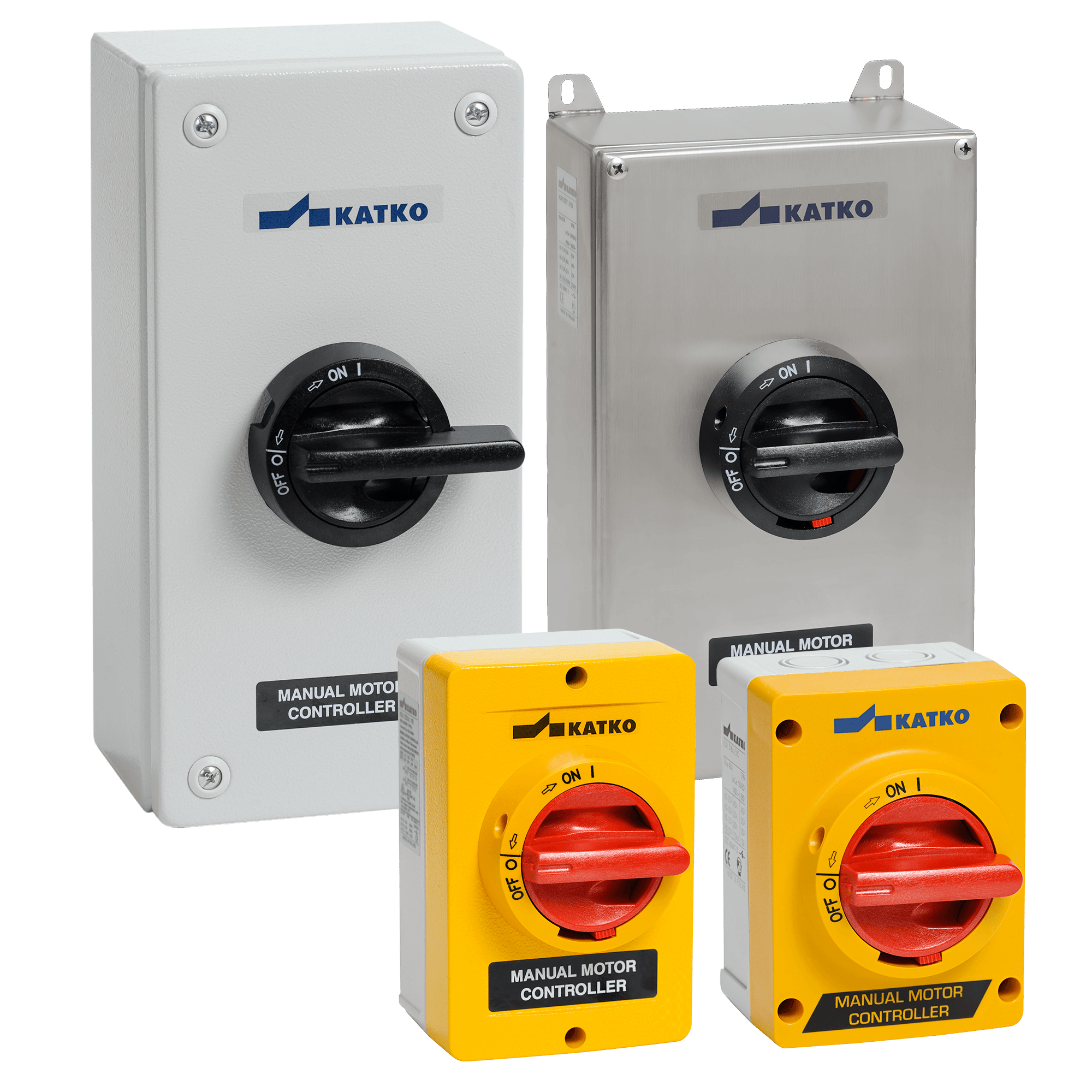

UL Listed EMC-Protected enclosed manual motor controllers 16-125A

Electromagnetic compatibility ensures safe operation in environments with electromagnetic disturbance
Tested according to EN 55011 with EMC glands shielded power cable
Nema Type 4X: M2, M3, MF10, MF11, RA2, RA4 enclosures
Nema Type 4: A2, A4, T3 enclosures
Up to 150A/75HP/600V, refer to detailed product specifications
Easy to install auxiliary contacts
Padlockable

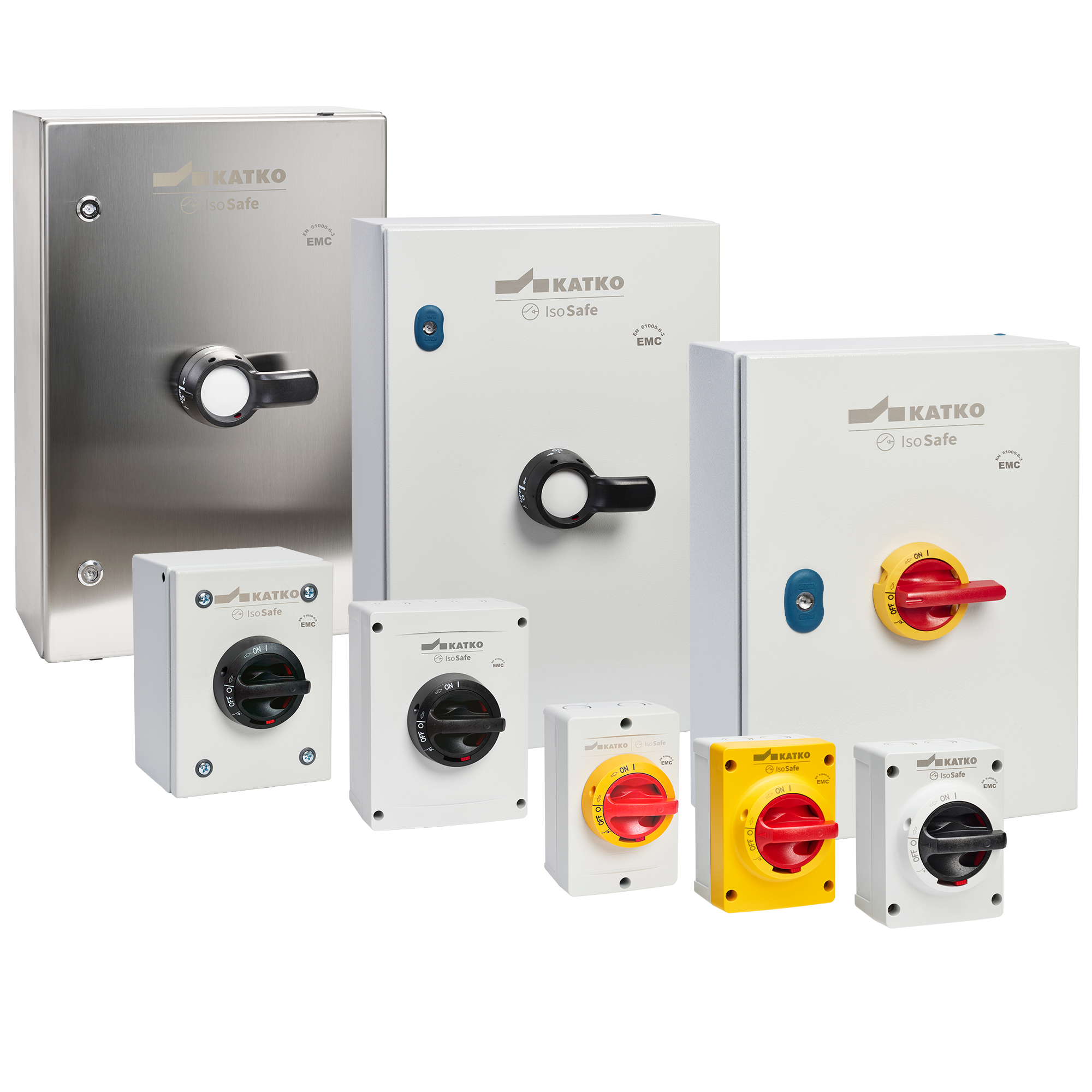

Also available as 4-, 6- and 8-pole versions
EMC cable glands included
KEM = Polycarbonate
KEA = Aluminium
KET = Sheet steel
KER = Stainless steel
Cable glands:
- KEM: 16-40A = 2xM25, 60-80A = 2xM32
- KEA: 16-40A = 2xM25, 60-125A = 2xM40
- KET: 16-40A = 2xM25, 60-80A = 2xM32, 100-150A = 2xM40
- KER: 16-40A = 2xM25, 60-80A = 2xM32, 100-125A = 2xM40

Note: Certificates may vary between products. Check product specific certificates from the product page.

Data subject to change without notice. Always confirm the data is correct from the seller.

Inquire About This Product Group

Email*
Country*
Company
Phone number
Comments
Request a 3D drawing (.stp)
- Yes
Request a 2D drawing (.dwg)
- Yes
For which product?
Subscribe for a KATKO newsletter
- Yes
Phone
This field is for validation purposes and should be left unchanged.

Products

Type	Number of Poles	Ampere Rating 600 V	HP 480 V	HP 600 V	EAN	Enclosure	Weight (lb/kg)
ISF 316UL M2EMC2XM25MEMC	3	16 A	7.5HP	10HP	6419410350850	M2	0.9 / 0.4
ISF 316UL YR M2EMC 2XM25MEMC	3	16 A	7.5HP	10HP	6419410352236	M2	0.9 / 0.4
ISF 330UL M2EMC2XM25MEMC	3	30 A	10HP	15HP	6419410350867	M2	0.9 / 0.4
ISF 330UL YR M2EMC2XM25MEMC	3	30 A	10HP	15HP	6419410352243	M2	0.9 / 0.4
ISF 340UL M3EMC2XM25MEMC	3	40 A	10HP	15HP	6419410350874	M3	0.9 / 0.4
ISF 340UL YR M3EMC2XM25MEMC	3	40 A	10HP	15HP	6419410352250	M3	0.9 / 0.4
ISF 316UL A2EMC2XM25MEMC KST16M	3	16 A	7.5HP	10HP	6419410350881	A2	0.9 / 0.4
ISF 316UL YR A2EMC2XM25MEMC KST16M	3	16 A	7.5HP	10HP	6419410352267	A2	0.9 / 0.4
ISF 330UL A2EMC2XM25MEMC KST16M	3	30 A	10HP	15HP	6419410350898	A2	0.9 / 0.4
ISF 330UL YR A2EMC2XM25MEMC KST16M	3	30 A	10HP	15HP	6419410352274	A2	0.9 / 0.4
ISF 340UL A2EMC2XM25MEMC KST16M	3	40 A	10HP	15HP	6419410350904	A2	0.9 / 0.4
ISF 340UL YR A2EMC2XM25MEMC KST16M	3	40 A	10HP	15HP	6419410352281	A2	0.9 / 0.4
ISF 316UL T3EMC2XM25MEMC	3	16 A	7.5HP	10HP	6419410352014	T3	0.9 / 0.4
ISF 316UL YR T3EMC2XM25MEMC	3	16 A	7.5HP	10HP	6419410352335	T3	0.9 / 0.4
ISF 330UL T3EMC2XM25MEMC	3	30 A	10HP	15HP	6419410352021	T3	0.9 / 0.4
ISF 330UL YR T3EMC2XM25MEMC	3	30 A	10HP	15HP	6419410352342	T3	0.9 / 0.4
ISF 340UL T3EMC2XM25MEMC	3	40 A	10HP	15HP	6419410352038	T3	0.9 / 0.4
ISF 340UL YR T3EMC2XM25MEMC	3	40 A	10HP	15HP	6419410352359	T3	0.9 / 0.4
ISF 316UL RA2EMC2XM25MEMC	3	16 A	7.5HP	10HP	6419410350911	RA2	0.9 / 0.4
ISF 316UL YR RA2EMC2XM25MEMC	3	16 A	7.5HP	10HP	6419410352298	RA2	0.9 / 0.4
ISF 330UL RA2EMC2XM25MEMC	3	30 A	10HP	15HP	6419410350928	RA2	0.9 / 0.4
ISF 330UL YR RA2EMC2XM25MEMC	3	30 A	10HP	15HP	6419410352311	RA2	0.9 / 0.4
ISF 340UL RA2EMC2XM25MEMC	3	40 A	10HP	15HP	6419410351468	RA2	0.9 / 0.4
ISF 340UL YR RA2EMC2XM25MEMC	3	40 A	10HP	15HP	6419410352328	RA2	0.9 / 0.4
KEM 316UL M2EMC 2XM25MEMC	3	16 A	10HP	7.5HP	6419410307922	M2	1.102 / 0.5
KEM 325UL M2EMC 2XM25MEMC	3	25 A	15HP	10HP	6419410307939	M2	1.102 / 0.5
KEM 340UL M3EMC 2XM25MEMC	3	40 A	20HP	15HP	6419410307946	M3	1.543 / 0.7
KEM 360UL M3EMC 2XM32MEMC	3	60 A	25HP	25HP	6419410307953	M3	1.543 / 0.7
KEM 380CUL M3EMC 2XM32MEMC	3	80 A	30HP	30HP	6419410307960	M3	1.543 / 0.7
KEM 380UL M3EMC 2XM32MEMC	3	80 A	30HP	40HP	6419410307977	M3	4.851 / 2.2
KEA 316UL A2EMC 2XM25MEMC KST16M	3	16 A	10HP	7.5HP	6419410308806	A2	1.764 / 0.8
KEA 325UL A2EMC 2XM25MEMC KST16M	3	25 A	15HP	10HP	6419410308813	A2	1.764 / 0.8
KEA 340UL A2EMC 2XM25MEMC KST16M	3	40 A	20HP	15HP	6419410308820	A2	1.764 / 0.8
KEA 360UL A4EMC 2XM40MEMC KST16M	3	60 A	25HP	25HP	6419410308837	A4	4.41 / 2
KEA 380CUL A4EMC 2XM40MEMC KST16M	3	80 A	30HP	30HP	6419410308844	A4	4.41 / 2
KEA 380UL A4EMC 2XM40MEMC KST16M	3	80 A	30HP	40HP	6419410308851	A4	5.071 / 2.3
KEA 3100UL A4EMC 2XM40MEMC KST16M	3	100 A	40HP	50HP	6419410308868	A4	5.071 / 2.3
KEA 3125UL A4EMC 2XM40MEMC KST16M	3	125 A	50HP	60HP	6419410308875	A4	5.071 / 2.3
KET 316UL T3EMC 2XM25MEMC KST16M	3	16 A	10HP	7.5HP	6419410308264	T3	4.63 / 2.1
KET 325UL T3EMC 2XM25MEMC KST16M	3	25 A	15HP	10HP	6419410308271	T3	4.63 / 2.1
KET 340UL T3EMC 2XM25MEMC KST16M	3	40 A	20HP	15HP	6419410308288	T3	4.63 / 2.1
KET 360UL T4EMC 2XM32MEMC KST16M	3	60 A	25HP	25HP	6419410308295	T4	8.82 / 4
KET 380CUL T4EMC 2XM32MEMC KST16M	3	80 A	30HP	30HP	6419410308301	T4	8.82 / 4
KET 380UL T4EMC 2XM32MEMC KST16M	3	80 A	30HP	40HP	6419410308318	T4	9.481 / 4.3
KET 3100UL T4EMC 2XM40MEMC	3	100 A	40HP	50HP	6419410308325	T4	9.481 / 4.3
KET 3125UL T4EMC 2XM40MEMC	3	125 A	50HP	60HP	6419410308332	T4	9.481 / 4.3
KET 3150UL T5EMC 2XM40MEMC	3	150 A	60HP	75HP	6419410308349	T5	21.38 / 9.7
KER 316UL RA2EMC 2XM25MEMC KST16M	3	16 A	10HP	7.5HP	6419410309223	RA2	2.646 / 1.2
KER 325UL RA2EMC 2XM25MEMC KST16M	3	25 A	15HP	10HP	6419410309230	RA2	2.646 / 1.2
KER 340UL RA2EMC 2XM25MEMC KST16M	3	40 A	20HP	15HP	6419410309247	RA2	2.646 / 1.2
KER 360UL RA4EMC 2XM32MEMC KST16M	3	60 A	25HP	25HP	6419410309254	RA4	4.851 / 2.2
KER 380CUL RA4EMC 2XM32MEMC KST16M	3	80 A	30HP	30HP	6419410309261	RA4	4.851 / 2.2
KER 380UL RA4EMC 2XM32MEMC KST16M	3	80 A	30HP	40HP	6419410309278	RA4	4.851 / 2.2
KER 3100UL RA4EMC 2XM40MEMC KST16M	3	100 A	40HP	50HP	6419410309285	RA4	5.512 / 2.5
KER 3125UL RA4EMC 2XM40MEMC KST16M	3	125 A	50HP	60HP	6419410309292	RA4	5.512 / 2.5
KEM 316UL YR M2EMC 2XM25MEMC	3	16 A	10HP	7.5HP	6419410307984	M2	1.102 / 0.5
KEM 325UL YR M2EMC 2XM25MEMC	3	25 A	15HP	10HP	6419410307991	M2	1.102 / 0.5
KEM 340UL YR M3EMC 2XM25MEMC	3	40 A	20HP	15HP	6419410308004	M3	1.543 / 0.7
KEM 360UL YR M3EMC 2XM32MEMC	3	60 A	25HP	25HP	6419410308011	M3	1.543 / 0.7
KEM 380CUL YR M3EMC 2XM32MEMC	3	80 A	30HP	30HP	6419410308028	M3	1.543 / 0.7
KEM 380UL YR M3EMC 2XM32MEMC	3	80 A	30HP	40HP	6419410308035	M3	4.851 / 2.2
KEA 316UL YR A2EMC 2XM25MEMC KST16M	3	16 A	10HP	7.5HP	6419410308882	A2	1.764 / 0.8
KEA 325UL YR A2EMC 2XM25MEMC KST16M	3	25 A	15HP	10HP	6419410308899	A2	1.764 / 0.8
KEA 340UL YR A2EMC 2XM25MEMC KST16M	3	40 A	20HP	15HP	6419410308905	A2	1.764 / 0.8
KEA 360UL YR A4EMC 2XM40MEMC KST16M	3	60 A	25HP	25HP	6419410308912	A4	4.41 / 2
KEA 380CUL YR A4EMC 2XM40MEMC KST16M	3	80 A	30HP	30HP	6419410308929	A4	4.41 / 2
KEA 380UL YR A4EMC 2XM40MEMC KST16M	3	80 A	30HP	40HP	6419410308936	A4	5.071 / 2.3
KEA 3100UL YR A4EMC 2XM40MEMC KST16M	3	100 A	40HP	50HP	6419410308943	A4	5.071 / 2.3
KEA 3125UL YR A4EMC 2XM40MEMC KST16M	3	125 A	50HP	60HP	6419410308950	A4	5.071 / 2.3
KET 316UL YR T3EMC 2XM25MEMC KST16M	3	16 A	10HP	7.5HP	6419410308356	T3	4.63 / 2.1
KET 325UL YR T3EMC 2XM25MEMC KST16M	3	25 A	15HP	10HP	6419410308363	T3	4.63 / 2.1
KET 340UL YR T3EMC 2XM25MEMC KST16M	3	40 A	20HP	15HP	6419410308370	T3	4.63 / 2.1
KET 360UL YR T4EMC 2XM32MEMC KST16M	3	60 A	25HP	25HP	6419410308387	T4	8.82 / 4
KET 380CUL YR T4EMC 2XM32MEMC KST16M	3	80 A	30HP	30HP	6419410308394	T4	8.82 / 4
KET 380UL YR T4EMC 2XM32MEMC KST16M	3	80 A	30HP	40HP	6419410308400	T4	9.481 / 4.3
KET 3100UL YR T4EMC 2XM40MEMC	3	100 A	40HP	50HP	6419410308417	T4	9.481 / 4.3
KET 3125UL YR T4EMC 2XM40MEMC	3	125 A	50HP	60HP	6419410308424	T4	9.481 / 4.3
KET 3150UL YR T5EMC 2XM40MEMC	3	150 A	60HP	75HP	6419410308431	T5	21.38 / 9.7
KER 316UL YR RA2EMC 2XM25MEMC KST16M	3	16 A	10HP	7.5HP	6419410309308	RA2	2.646 / 1.2
KER 325UL YR RA2EMC 2XM25MEMC KST16M	3	25 A	15HP	10HP	6419410309315	RA2	2.646 / 1.2
KER 340UL YR RA2EMC 2XM25MEMC KST16M	3	40 A	20HP	15HP	6419410309322	RA2	2.646 / 1.2
KER 360UL YR RA4EMC 2XM32MEMC KST16M	3	60 A	25HP	25HP	6419410309339	RA4	4.851 / 2.2
KER 380CUL YR RA4EMC 2XM32MEMC KST16M	3	80 A	30HP	30HP	6419410309346	RA4	4.851 / 2.2
KER 380UL YR RA4EMC 2XM32MEMC KST16M	3	80 A	30HP	40HP	6419410309353	RA4	4.851 / 2.2
KER 3100UL YR RA4EMC 2XM40MEMC KST16M	3	100 A	40HP	50HP	6419410309360	RA4	5.512 / 2.5
KER 3125UL YR RA4EMC 2XM40MEMC KST16M	3	125 A	50HP	60HP	6419410309377	RA4	5.512 / 2.5
