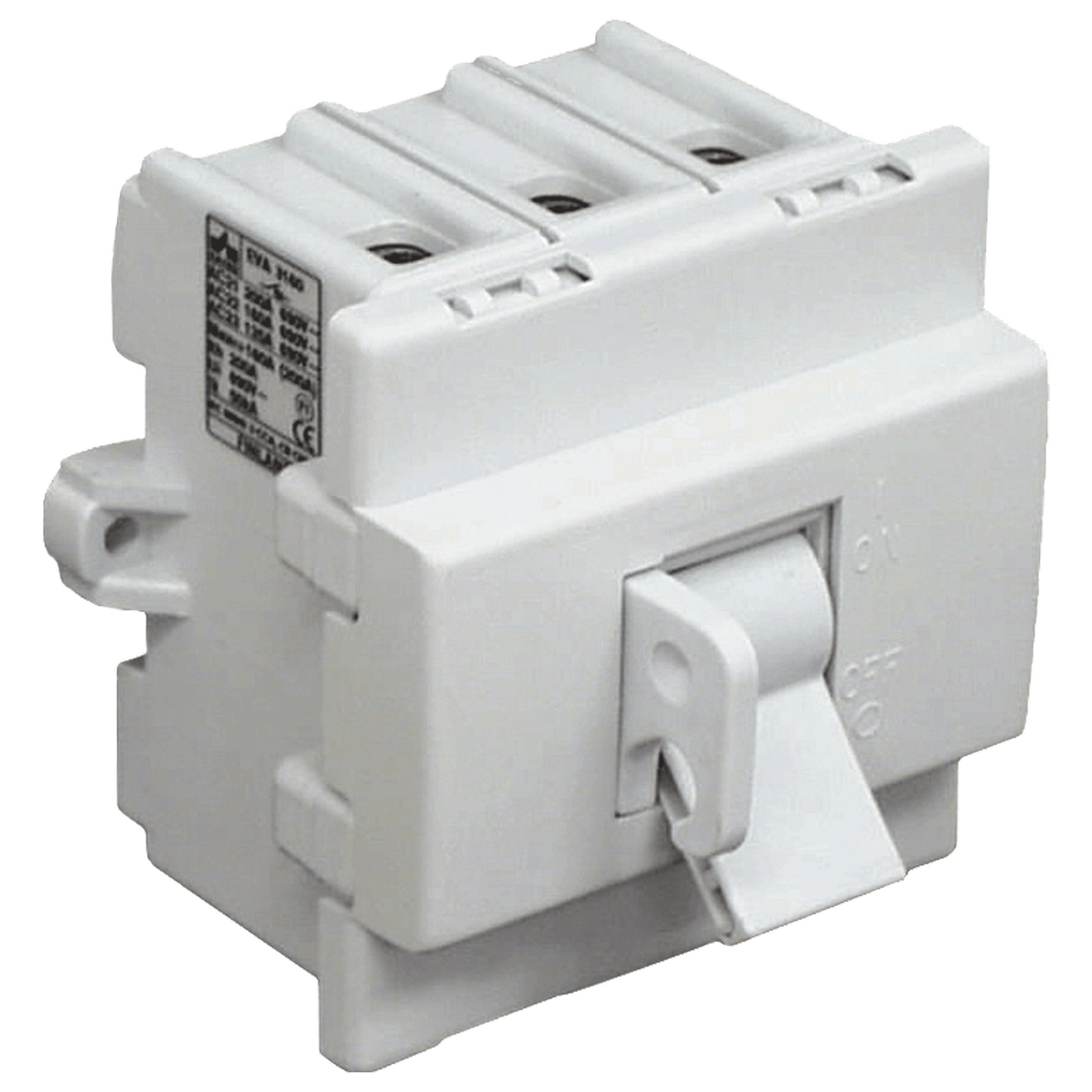

EVA 3125 KEVAR

EVA 3125 KEVAR

EVA 3125 KEVAR

E-number FI
3600801
GTIN
6419410202524
Rated operational current AC-22A 415V (A)
125
Pokaż kompletne dane

Product details and documents

Technical data

Depth
82 mm
ETIM Class
EC000216
E-number FI
3600801
GTIN
6419410202524
Height
78 mm
Long product name
Toggle switch, 3-pole, Front plate, Red toggle
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Nom. values w/cable size (mm²)
70
Number of poles
3
Product type
EVA 3125 KEVAR
Rated breaking cap. ICN AC-23A 415V (A)
640
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
6
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-22A 415V (A)
125
Rated operational current AC-23A 415V (A)
80
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
45
Rated short-ckt. making cap. Icm 690V (kA)
5.1
Rated short-time withstand current 1s Icw 690V (kA)
3.5
Rated therm. current Ith (A)
160
Switch type
Load Break Switch
Technical name
3x80A 400V 45kW
Terminals bolt size (Cu mm²)
6..70
Volume
0.5053 l
Width
79 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
82 mm
Package size 1 GTIN code
6.41941e+12
Package size 1 height
78 mm
Package size 1 volume
0.5245 l
Package size 1 width
82 mm
Sales unit
1
