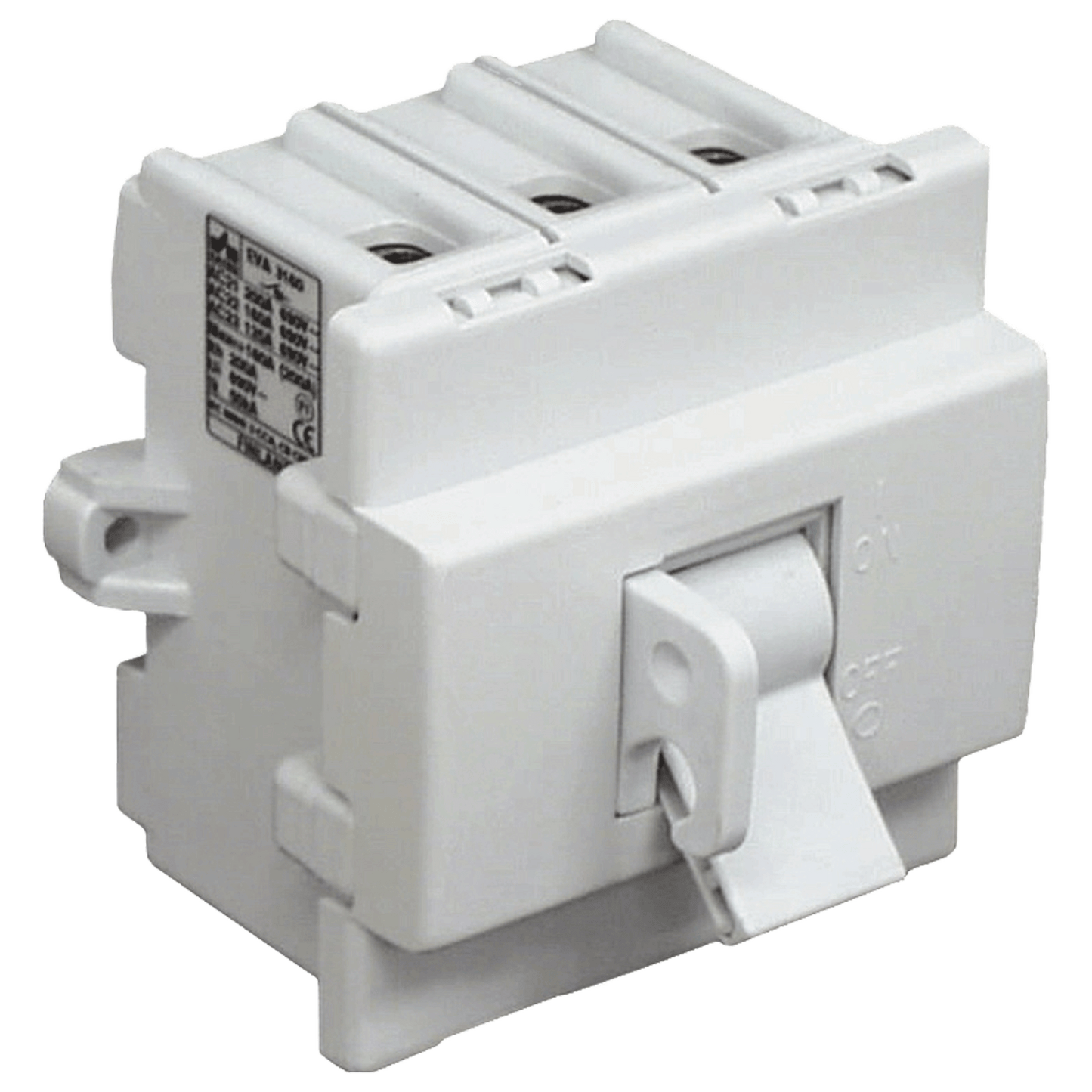

EVA 380 KEVA

EVA 380 KEVA

EVA 380 KEVA

GTIN
6419410202463
Rated operational current AC-22A 415V (A)
80
Pokaż kompletne dane

Product details and documents

Technical data

Ampere rating 600V
80.0
Depth
78 mm
ETIM Class
EC000216
GTIN
6419410202463
Height
82 mm
HP 208V
15.0
HP 415V
15.0
HP 480V
30.0
HP 600V
40.0
Long product name
Toggle switch, 3-pole, Front plate
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Nom. values w/cable size (mm²)
35
Number of poles
3
Product type
EVA 380 KEVA
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
6
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
100
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-23A 415V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
30
Rated short-ckt. making cap. Icm 690V (kA)
5.1
Rated short-time withstand current 1s Icw 690V (kA)
3.5
Rated therm. current Ith (A)
100
Switch type
Load Break Switch
Technical name
3x63A 400V 30kW
Terminals bolt size (Cu mm²)
6..70
UL
UL 60947-4-1A
Volume
0.5053 l
Width
79 mm
Wire size Cu
8-1/0 AWG

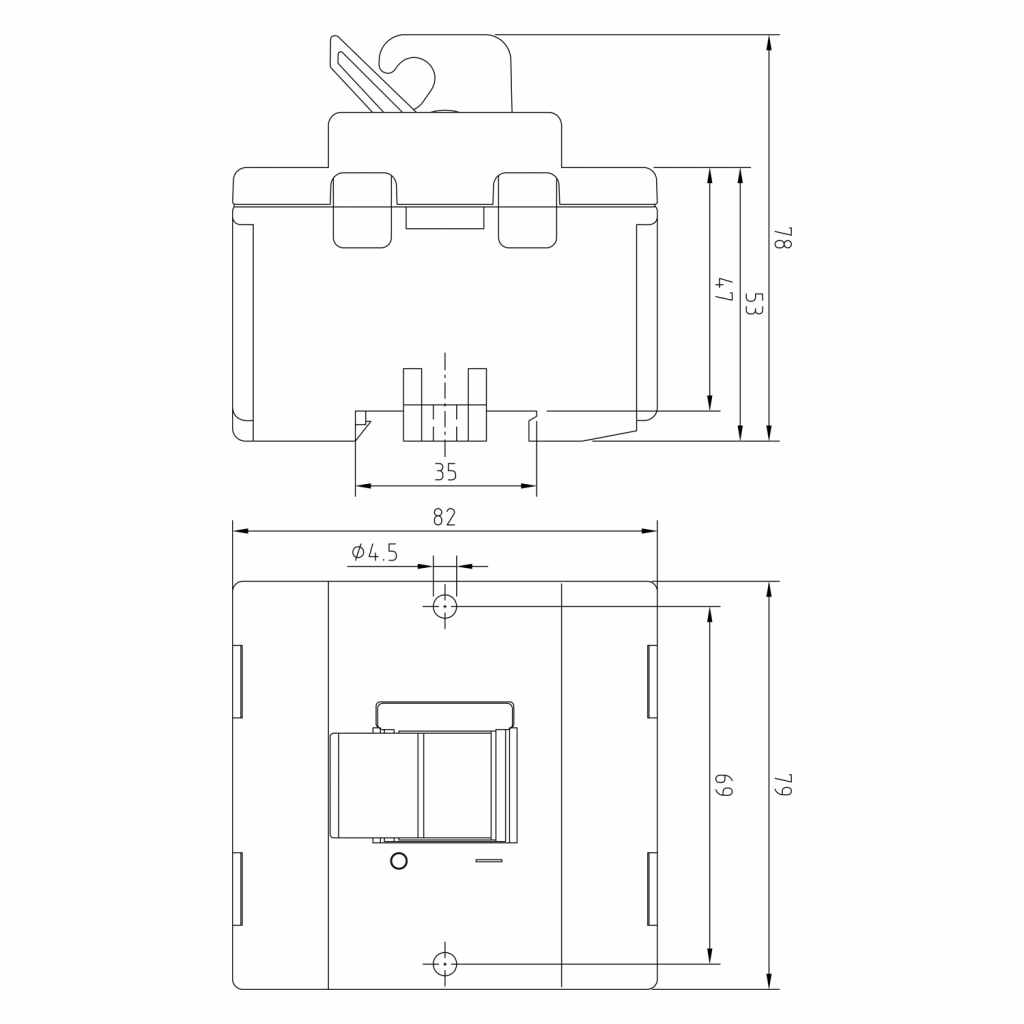

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
78 mm
Package size 1 GTIN code
6.41941e+12
Package size 1 height
82 mm
Package size 1 volume
0.4989 l
Package size 1 width
78 mm
Sales unit
1
