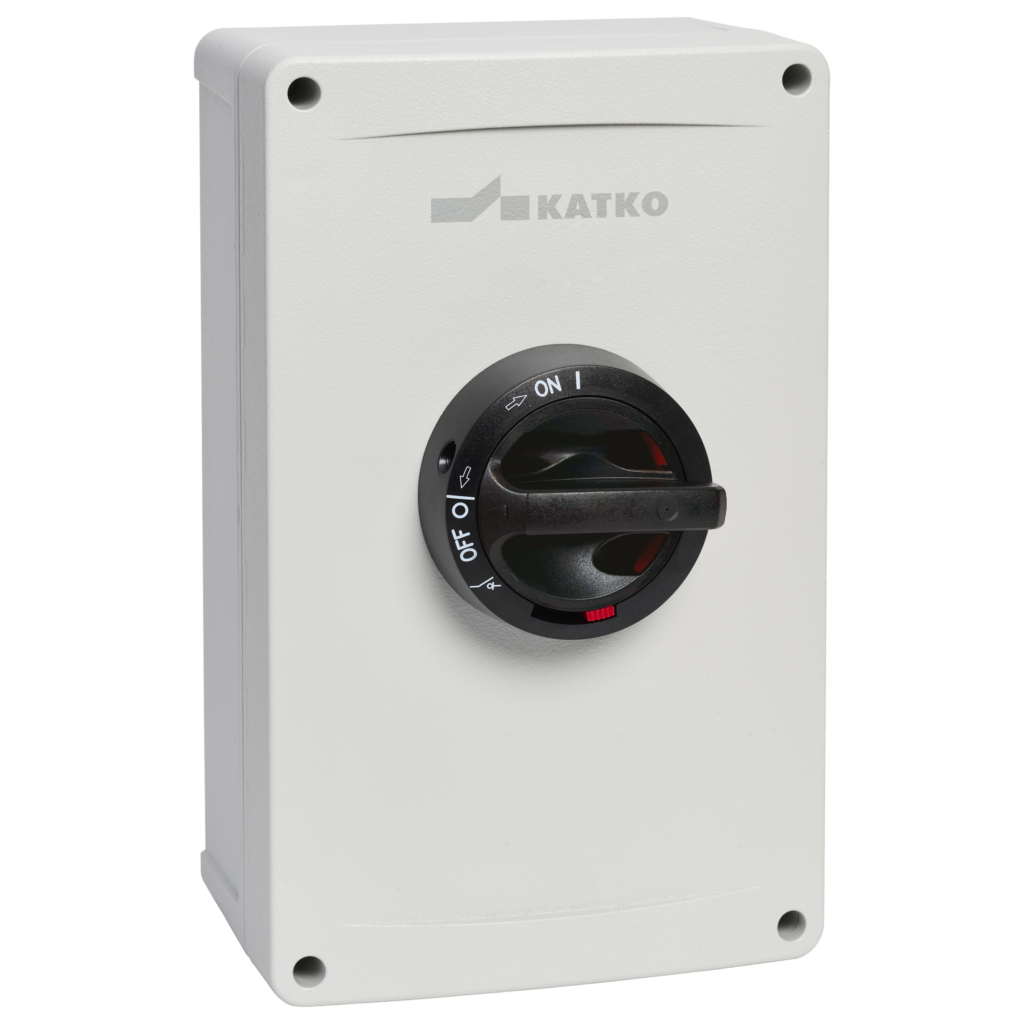

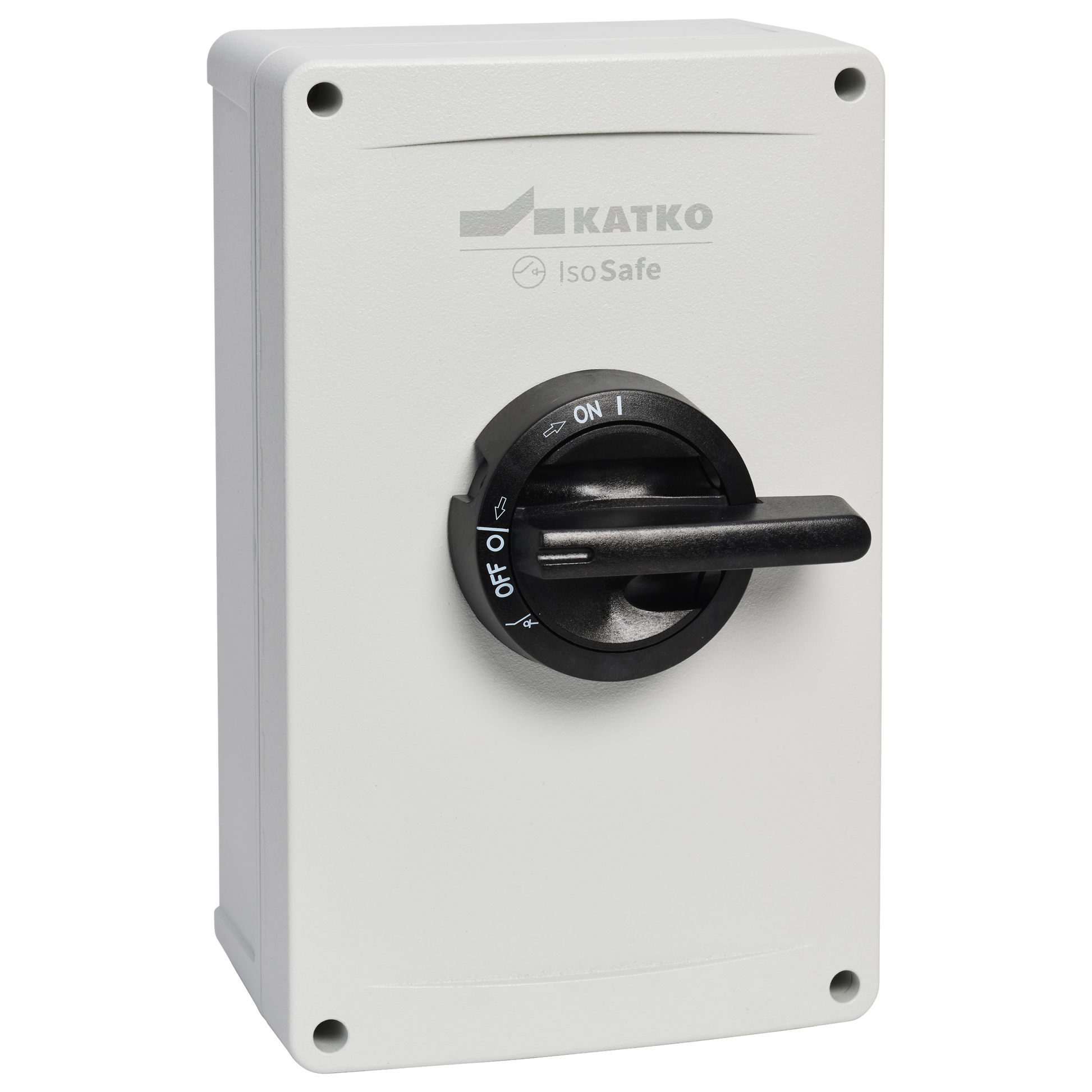

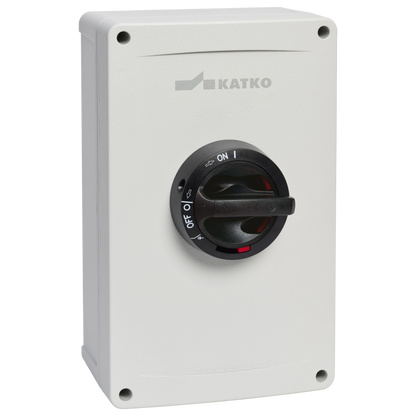

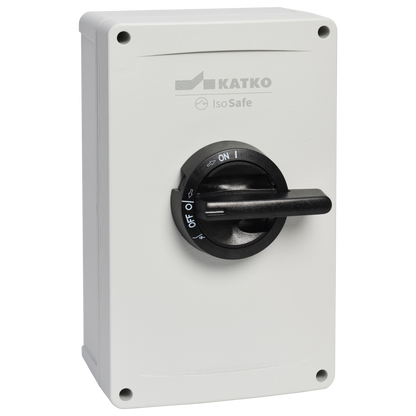

Isolating switch EMC 3x32A IP66 1NO/1NC

- KUA 332 1V A4EMC 2XM40MEMC M16M

Isolating switch EMC 3x32A IP66 1NO/1NC

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

GTIN
6419410305102
Rated operational current AC-23A 415V (A)
32
Enclosure type
Aluminium
Enclosure
A4 (162 x 262 x 108 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
2 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Depth
108 mm
EMC
true
Enclosure
A4 (162 x 262 x 108 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
GTIN
6419410305102
Height
262 mm
IP rating
IP66
Long product name
3-pole, Auxiliary contact 1NO/1NC, Aluminum enclosure; W162 x H262 x D108,EMC shielded, Cable entries: 2 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
2.7926 kg
Nom. values w/cable size (mm²)
16
Number of poles
3
Product type
- KUA 332 1V A4EMC 2XM40MEMC M16M
Rated breaking cap. ICN AC-23A 415V (A)
256
Rated breaking cap. ICN AC-23A 500V (A)
256
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
6.1
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
63
Rated operational current AC-21A 500V (A)
63
Rated operational current AC-21A 690V (A)
63
Rated operational current AC-22A 415V (A)
40
Rated operational current AC-22A 500V (A)
40
Rated operational current AC-22A 690V (A)
40
Rated operational current AC-23A 415V (A)
32
Rated operational current AC-23A 500V (A)
32
Rated operational current AC-23A 690V (A)
32
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
18.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
1.7
Rated therm. current Ithe (A)
63
Rated therm. current Ith (A)
63
Short product description
Isolating switch EMC 3x32A IP66 1NO/1NC
Switch type
Load Break Switch
Technical name
3x32A 400V 15kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
4.584 l
Width
162 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
77 mm
Package size 1 GTIN code
6419410326008
Package size 1 height
160 mm
Package size 1 volume
1.4784 l
Package size 1 weight
0.7044 kg
Package size 1 width
120 mm
Sales unit
1
