GTIN-koodi
6419410218556
Tuotetiedot ja dokumentit
Tekniset tiedot
Ampeerit 600V
100.0
Syvyys
82 mm
ETIM-luokka
EC000216
GTIN-koodi
6419410218556
Korkeus
82 mm
HP 208V
15.0
HP 415V
20.0
HP 480V
40.0
HP 600V
50.0
Pitkä tuotenimi

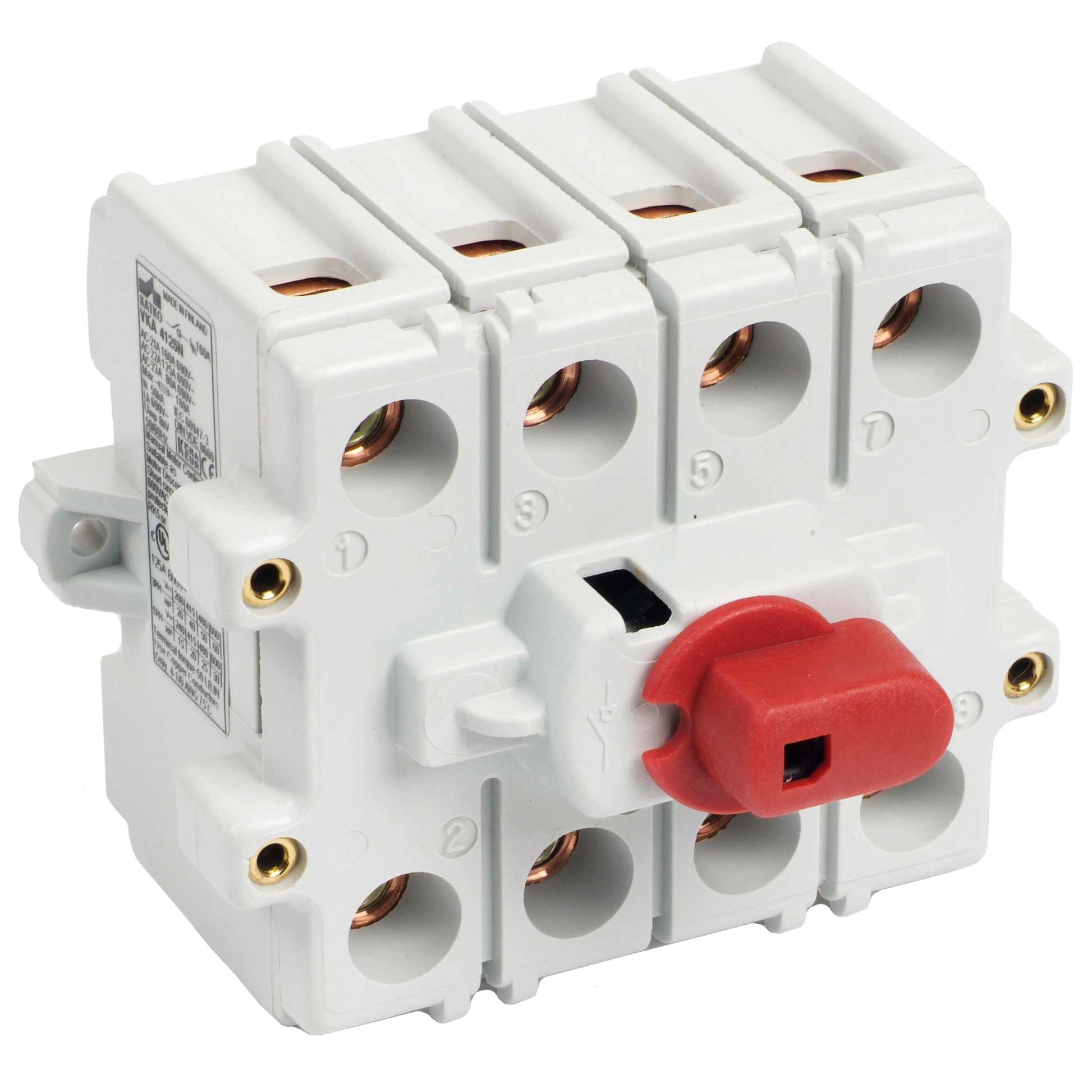

Rotary switch, 4-pole
Napojen lukumäärä
4
Tuotetyyppi
VKA 4100N
Lyhyt tuotekuvaus
Kuormankytkin 4x100A
Tekninen nimi
4x80A 400V 30kW
UL
UL 60947-4-1A
Tilavuus
0.6657 l
Leveys
99 mm
Wire size Cu
8-1/0 AWG
No dimensional drawings available for this product.
Mittakuva
No dimensional drawings available for this product.
Logistiikkatiedot
Pakkauskoko 1
1
Pakkauskoko 1 syvyys
82 mm
Pakkauskoko 1 GTIN-koodi
6419410218556
Pakkauskoko 1 korkeus
82 mm
Pakkauskoko 1 tilavuus
0.5514 l
Pakkauskoko 1 leveys
82 mm
Myyntiyksikkö
1
