Toggle switch 4x250A

EVA 4250 R

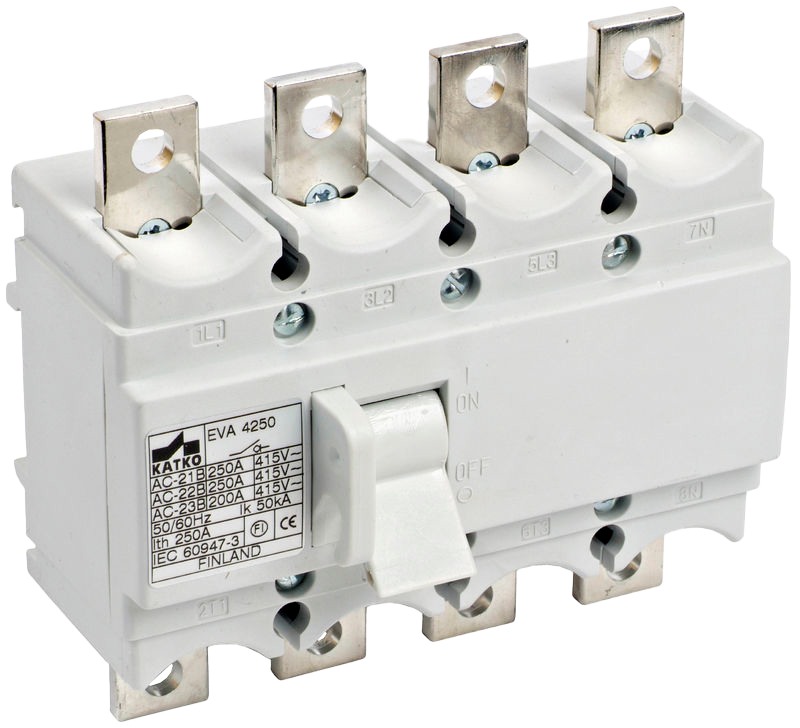

Toggle switch 4x250A

Katko LoadSafe EVA toggle load break switches (200–250A) are robust and compact solutions designed for reliable load switching in medium-capacity electrical systems. Available in 3- and 4-pole versions with options for terminal covers and phase barriers, these switches support flexible installation requirements while maintaining straightforward operation.

Switch technology based on silver contacts ensures safe, durable operation even in demanding environments, and devices are tested according to IEC 60947-3 for consistent performance.

E-number FI
3600843
GTIN
6419410203316
Rated operational current AC-22A 415V (A)
200
Pokaż kompletne dane

Product details and documents

Technical data

Depth
141 mm
ETIM Class
EC000216
E-number FI
3600843
GTIN
6419410203316
Height
77 mm
Long product name
Toggle switch, 4-pole, Red toggle
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
EVA 4250 R
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current peak value (kA)
21
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
6
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-23A 415V (A)
160
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
75
Rated short-ckt. making cap. Icm 415V (kA)
11.4
Rated short-time withstand current 1s Icw 415V (kA)
6.5
Rated therm. current Ith (A)
200
Short product description
Toggle switch 4x250A
Switch type
Load Break Switch
Technical name
4x200A 400V 90kW
Terminals bolt size (Cu mm²)
M8
Volume
1.3897 l
Width
128 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
141 mm
Package size 1 GTIN code
6419410203316
Package size 1 height
77 mm
Package size 1 volume
1.5308 l
Package size 1 width
141 mm
Sales unit
1
