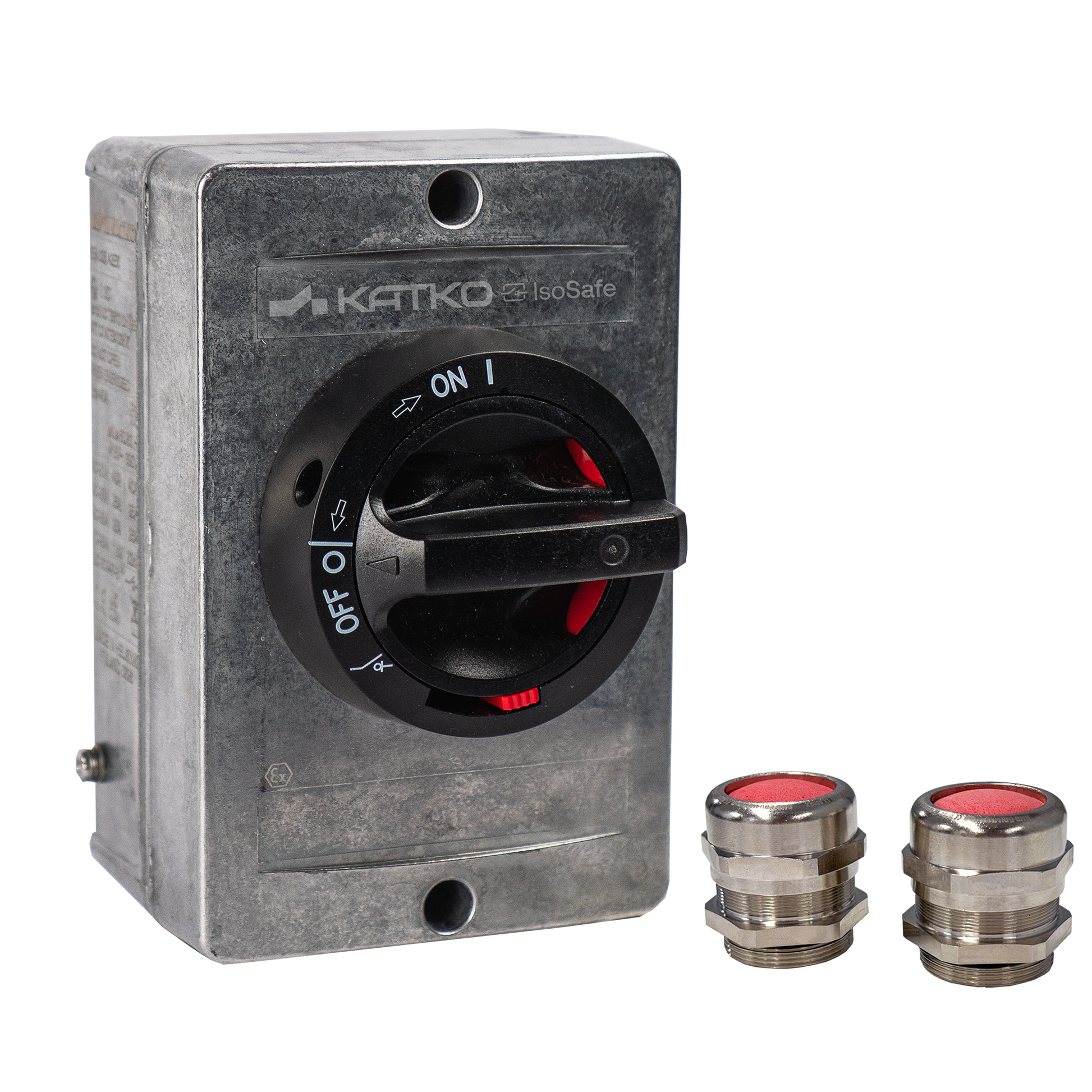

KEA 325NO A2EX IECEX 2XM25MEX M16MEX

Isolating Switch 3x25A IECEX 2D 1NO

KEA 325NO A2EX IECEX 2XM25MEX M16MEX

Developed for use in internationally certified hazardous locations, Katko IECEx isolators (16-160A) provide safe and reliable isolation in explosive atmospheres worldwide. They meet IECEx requirements while maintaining practical installation and operation, with solutions available for Zone 21 applications.

These isolators are suited for global industrial applications where consistent safety standards and dependable performance are required.

Numer produktu
37359
Rated operational current AC-23A 415V (A)
25
Enclosure type
Aluminium
Enclosure
A2 (104 x 159 x 80 mm)
Mounted auxiliary contacts
1NO
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410373590
Depth
80 mm
Enclosure
A2 (104 x 159 x 80 mm)
Enclosure type
Aluminium
ETIM Class
EC000522
EX
true
Height
158.5 mm
IP rating
IP66
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Mounted auxiliary contacts
1NO
Net weight
1.2067 kg
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
KEA 325NO A2EX IECEX 2XM25MEX M16MEX
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
25
Rated fused short-ckt current peak value (kA)
3.8
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 500V (A)
25
Rated operational current AC-22A 690V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Isolating Switch 3x25A IECEX 2D 1NO
Switch type
Load Break Switch
Technical name
3x25A 400V 11kW IECEX 2D
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.3187 l
Width
104 mm

Dimensional drawing

Logistical data

Package size 1 depth
80 mm
Package size 1 GTIN code
6419410373590
Package size 1 height
158.5 mm
Package size 1 volume
1.3187 l
Package size 1 weight
1.2067 kg
Package size 1 width
104 mm
Sales unit
1
