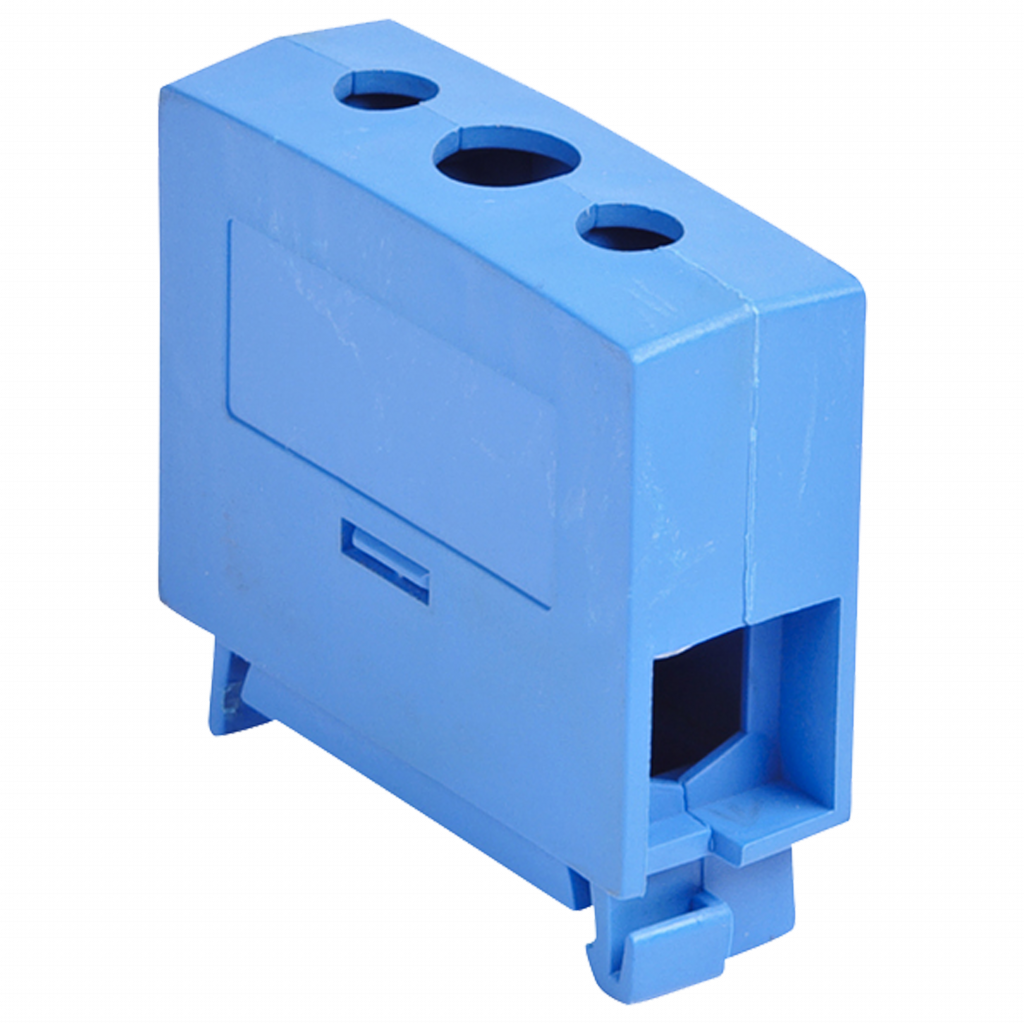

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.
Technical data
Cu (mm²)
1,5-16
Depth
38.5 mm
ETIM Class
EC000897
E-number FI
1942009
GTIN
6419410357217
Height
44 mm
In Cu
63.0
Key size
PZ2
Net weight
0.0548 kg
Nominal voltage
800V AC
Product type
KC1X16N
Short product description
Terminal block KC 1xCu 1,5-16mm² Blue
Torque Al/Cu (Nm)
1,8
Volume
0.022 l
Width
13 mm
Dimensional drawing
Logistical data
Package size 1
100
