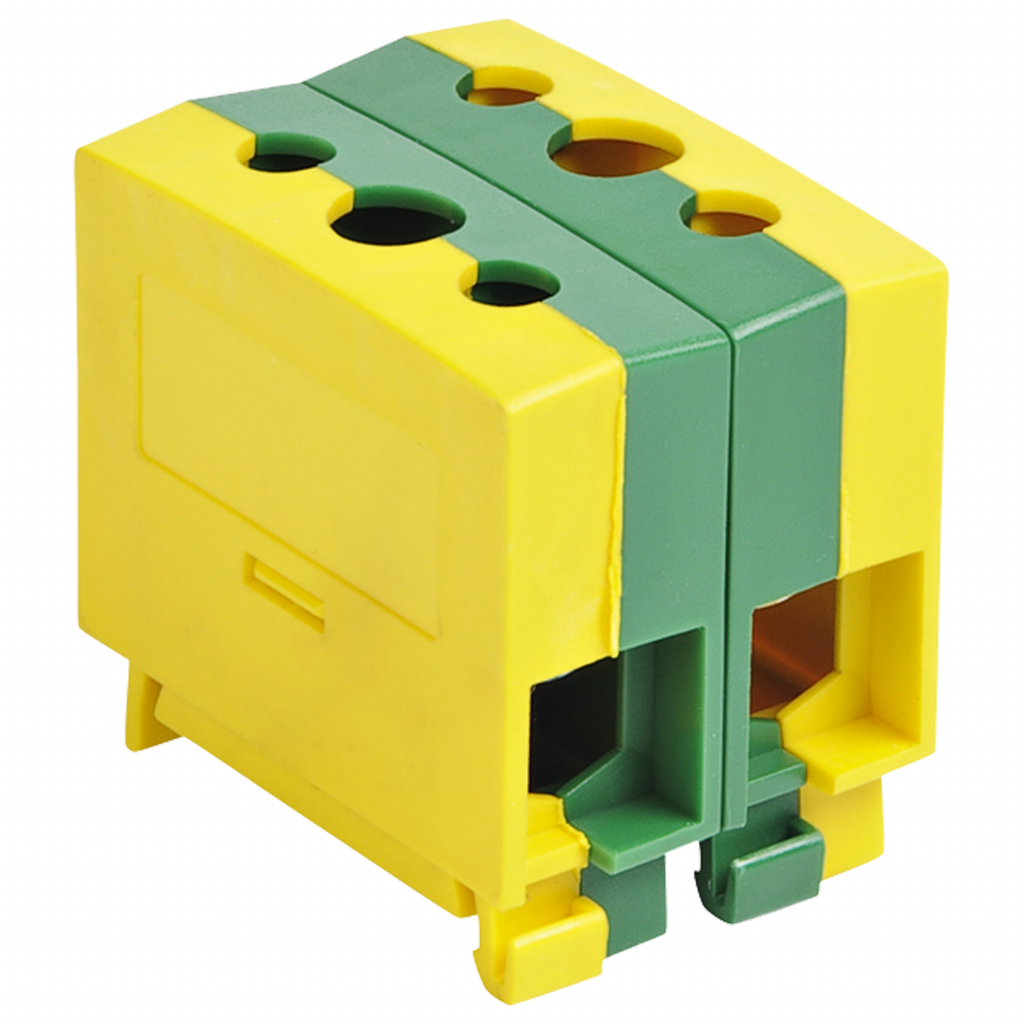

Terminal block KC 2xCu 2,5-35mm² Yellow/Green

KC2X35PE

Terminal block KC 2xCu 2,5-35mm² Yellow/Green

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.

E-number FI
In Cu
270
Pokaż kompletne dane

Product details and documents

Technical data

Depth
42 mm
ETIM Class
EC000897
E-number FI
1942019
GTIN
6419410357552
Height
44 mm
In Cu
270.0
Key size
PZ2
Net weight
0.0721 kg
Product type
KC2X35PE
Short product description
Terminal block KC 2xCu 2,5-35mm² Yellow/Green
Torque Al/Cu (Nm)
2,5
Volume
0.0591 l
Width
32 mm

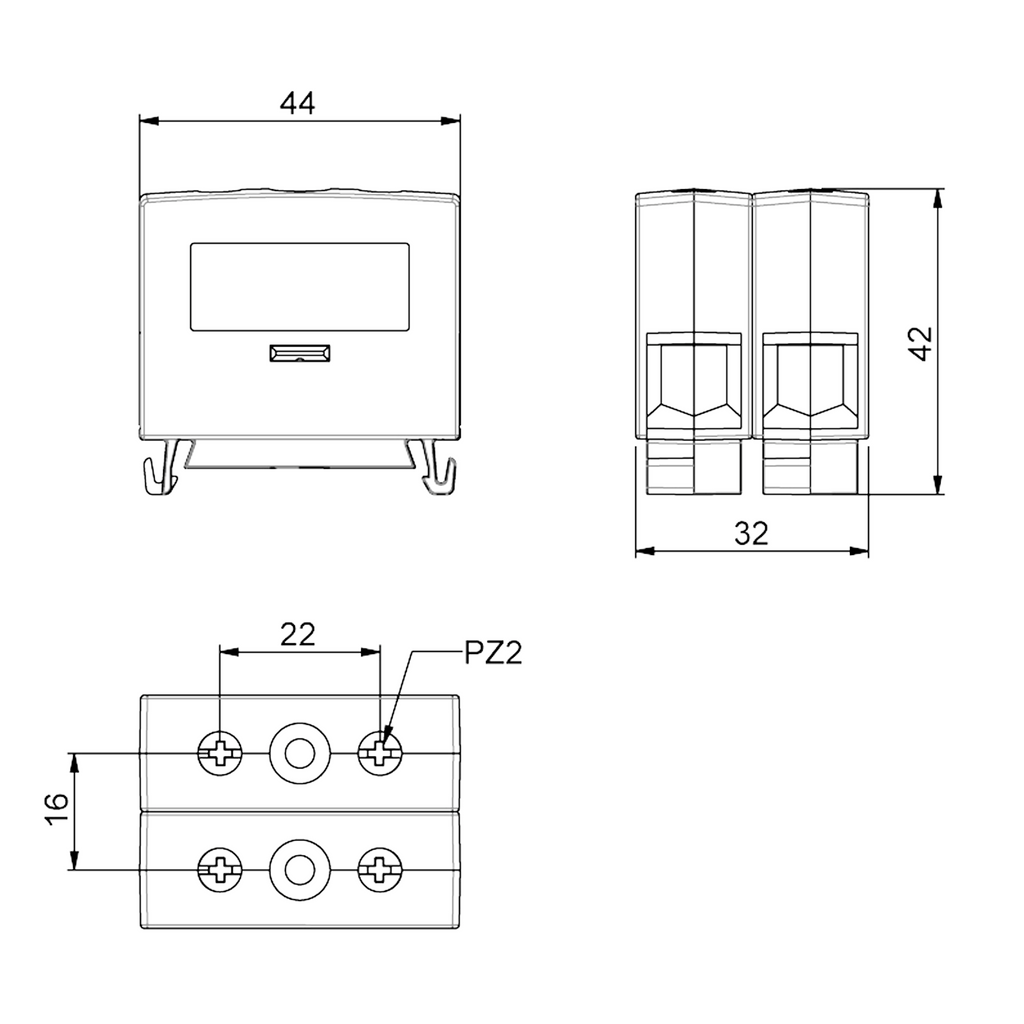

Dimensional drawing
