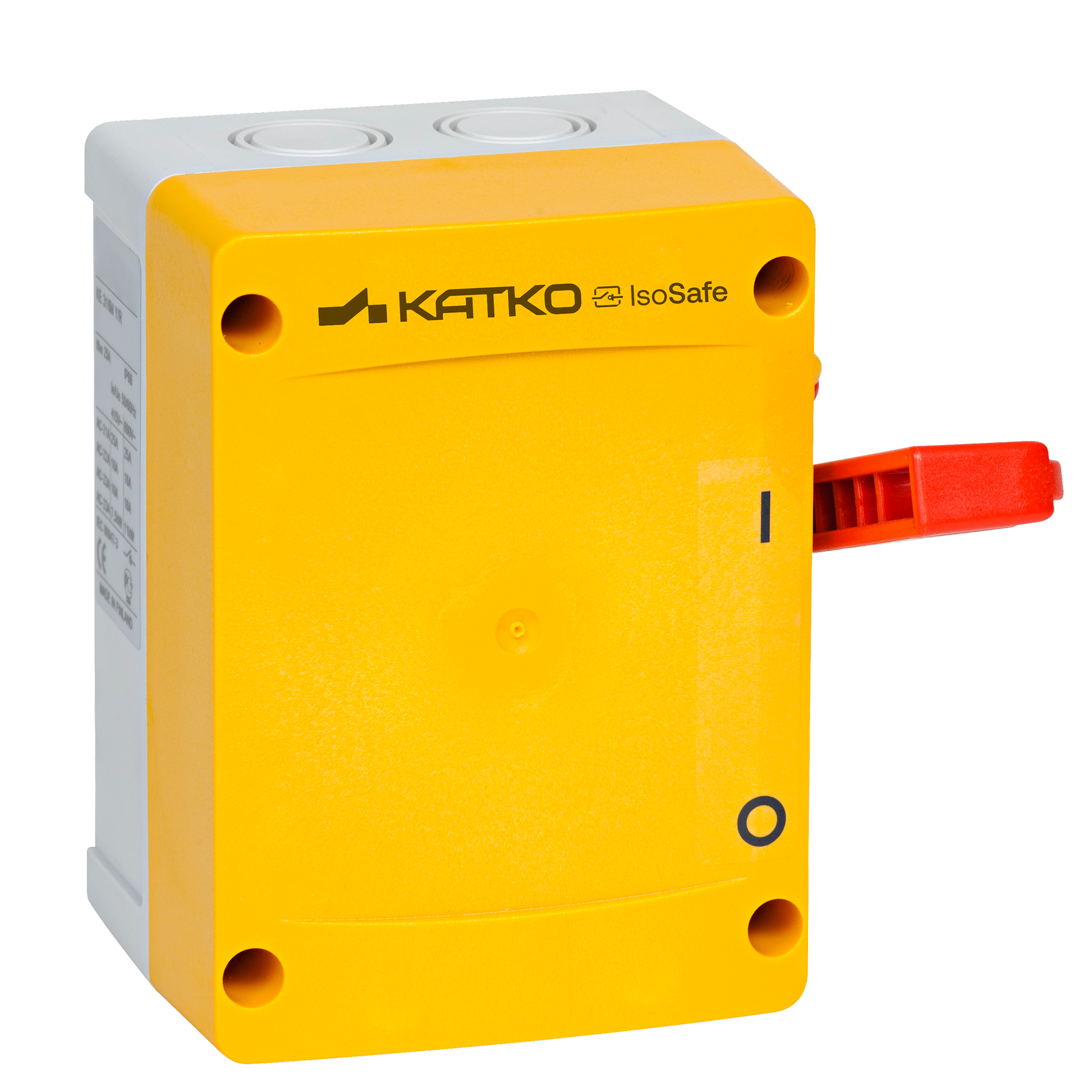

Katko IsoSafe side-operated polycarbonate isolators are designed for safe and reliable isolation in demanding indoor and outdoor applications. The durable polycarbonate enclosure offers excellent resistance to UV radiation and many chemicals.
The range features a padlockable side-operated handle, fully rated load break performance and self-extinguishing material with excellent insulation properties. Available in 2-, 3- and 4-pole versions, including 3-pole models with auxiliary contact, IsoSafe polycarbonate isolators combine safety, clarity and easy installation for professional electrical applications.
Numer produktu
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Cable entries
2 x M25 (11,0-17,0 mm), plastic
delivery_time
10
Depth
81 mm
EMC
false
Enclosure
M2S (96.4 x 130.4 x 81 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410304136
Height
130.4 mm
IP rating
IP66
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Net weight
0.4557 kg
Nom. values w/cable size (mm²)
4
Number of poles
3
Product type
KE 325 MYR M2S 2XM25P
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-21A 500V (A)
25
Rated operational current AC-21A 690V (A)
25
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 500V (A)
25
Rated operational current AC-22A 690V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated short-ckt. making cap. Icm 415V (kA)
1.6
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Isolating switch 3x25A IP66
Switch type
Load Break Switch
Technical name
3x25A 400V 11kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.0182 l
Width
96.4 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
106 mm
Package size 1 GTIN code
6419410304136
Package size 1 height
130.4 mm
Package size 1 volume
1.3325 l
Package size 1 weight
0.4557 kg
Package size 1 width
96.4 mm
Sales unit
1
Downloadables
- Dimensional drawings media (IsoSafe_M2S_Dim.png)
- Connection diagram media (KATKO_KU3P_diagram)
- Brochures (Katko IsoSafe Catalogue - Safety Switches & Isolators)
- Brochures (Katko IsoSafe Tuoteluettelo - Turvakytkimet FI)
- Brochures (Katalog Wyrobów KATKO IsoSafe – Wyłączniki bezpieczeństwa i rozłączniki PL)
- STEP files (IsoSafe_M2S_KE.zip)
- DWG files (IsoSafe_M2S_LKKE.zip)
- Installation manuals (KATKO_IsoSafe_KE_16_40M_installation_manual_46.pdf)
